EUROCOM M22ES - Removing the Inverter

Disassembly
Removing the Inverter 2 - 17
2.Disassembly
Removing the Inverter
1. Remove the battery (page 2 - 6), keyboard (page 2 - 8), HDD assembly (page 2 - 9), CPU (page 2 - 10), modem
(page 2 - 12), CD device (page 2 - 12), and bottom case (page 2 - 13).
2. Remove the rubber covers and screws - from the LCD (Figure 2 - 14a).
3. Run your finger around the middle of the frame to carefully unsnap the LCD front panel module from the back.
4. Remove screws - from the inverter, and disconnect cables & from the rear of the inverter.
5. Lift the inverter off the LCD assembly .

6. LCD Front Panel
11. Inverter
•7 Screws
• 5 Rubber covers

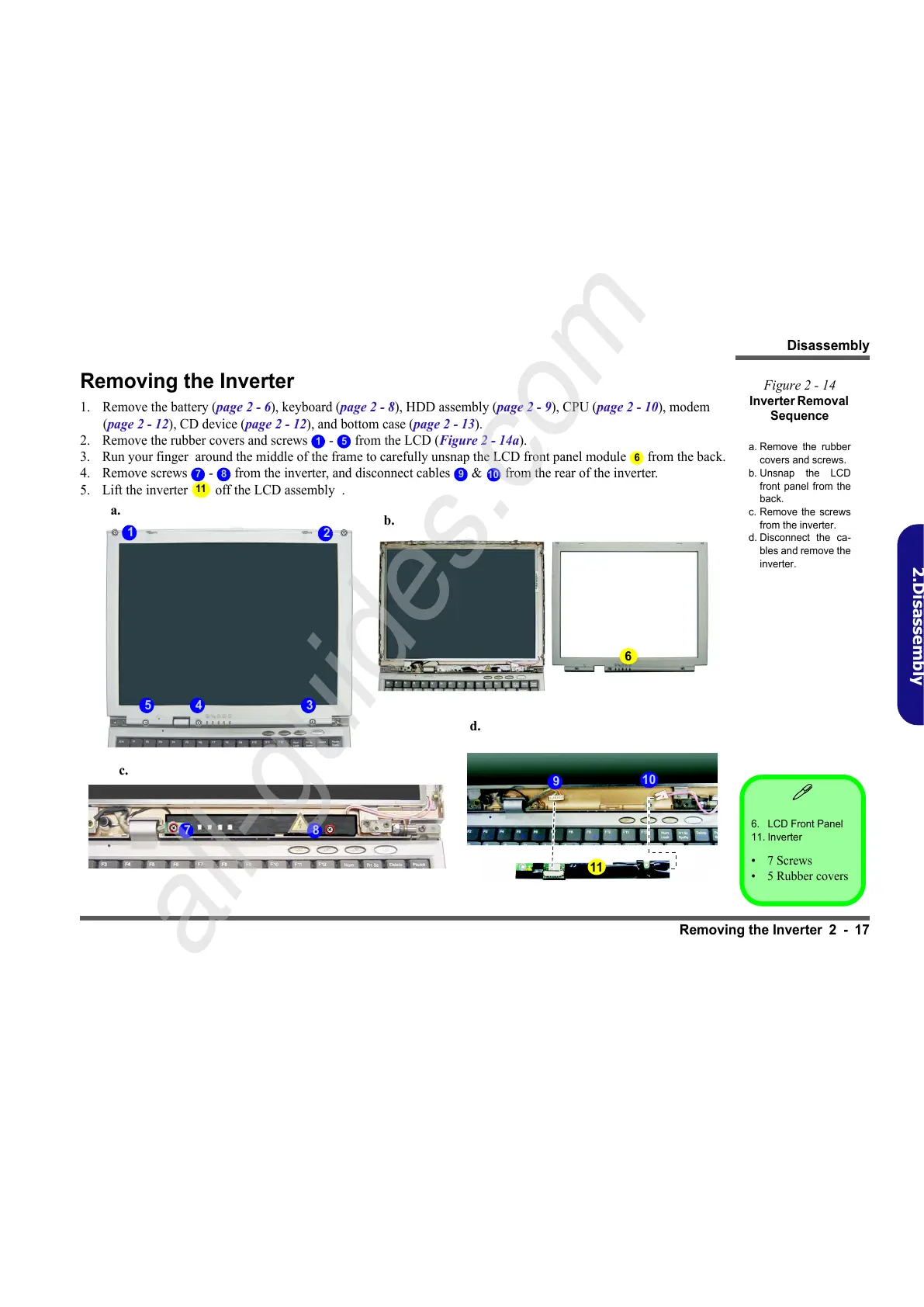

Figure 2 - 14
Inverter Removal
Sequence
a. Remove the rubber
covers and screws.
b. Unsnap the LCD
front panel from the
back.
c. Remove the screws
from the inverter.
d. Disconnect the ca-
bles and remove the
inverter.
1 5
6
7 8 9
10
11
6
1
3
2
45
a.
b.
c.
10
9
7 8
d.
11
