Disassembly
Removing the CPU 2 - 11
2.Disassembly
4. Fully raise latch in the direction indicated in Figure 2 - 6a to unlock the CPU.
5. Carefully (it may be hot) lift the CPU up out of the socket (Figure 2 - 6b).
6. When re-inserting the CPU pay careful attention to the pin alignment, it will fit only one way (don’t force it!).
1
2

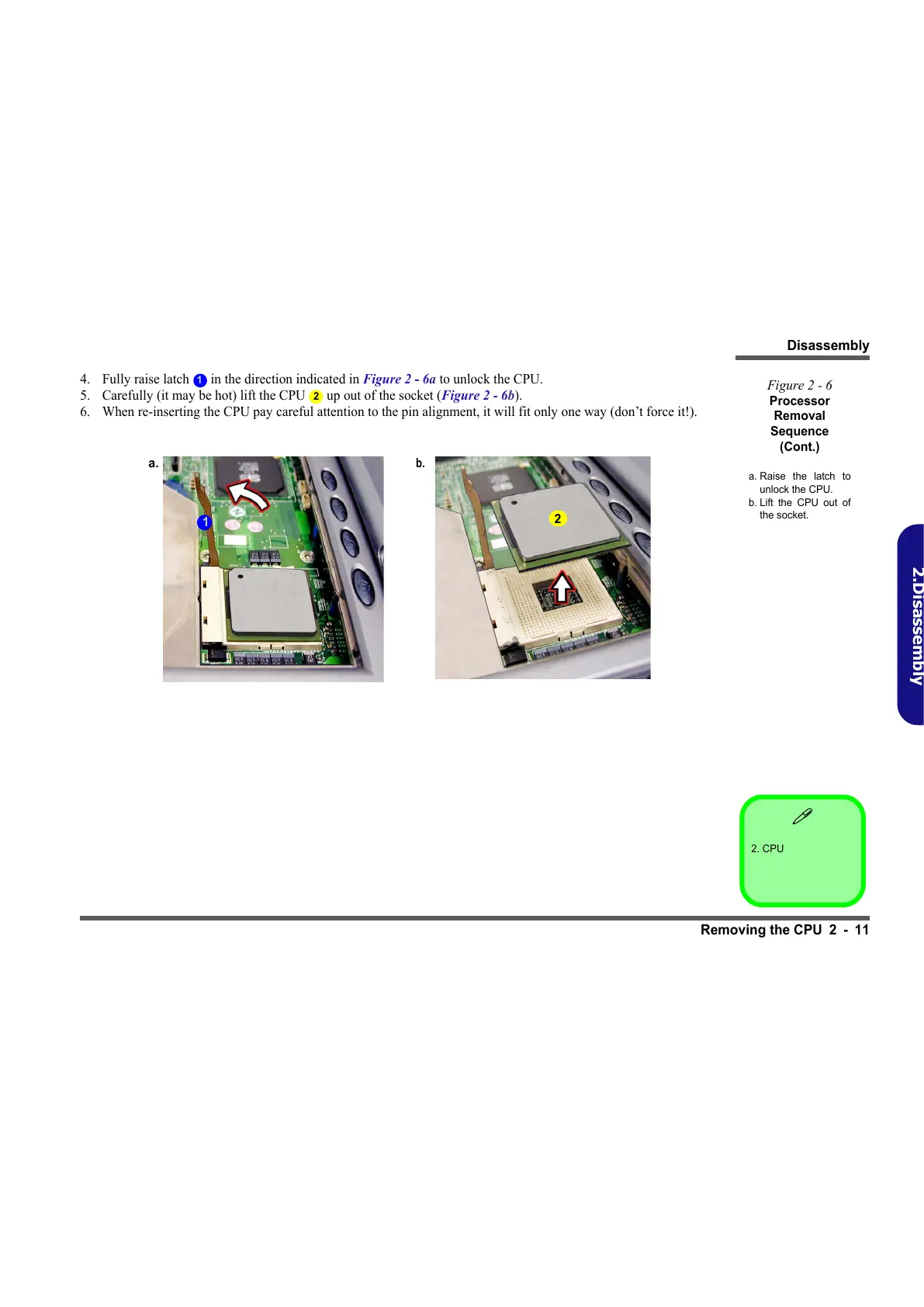

Figure 2 - 6
Processor
Removal
Sequence
(Cont.)
a. Raise the latch to
unlock the CPU.
b. Lift the CPU out of
the socket.
1
2
a.
b.

2. CPU
