Euroscan MX1 14
Document number: EN-301-1:UD - based on Firmware version 1.033 and forward
When the MX1 recorder
is mounted horizontal,
place the GPS antenna in
the blue marked area.
See the picture on the
left. This is another area
than when the MX1
recorder is mounted
vertical!

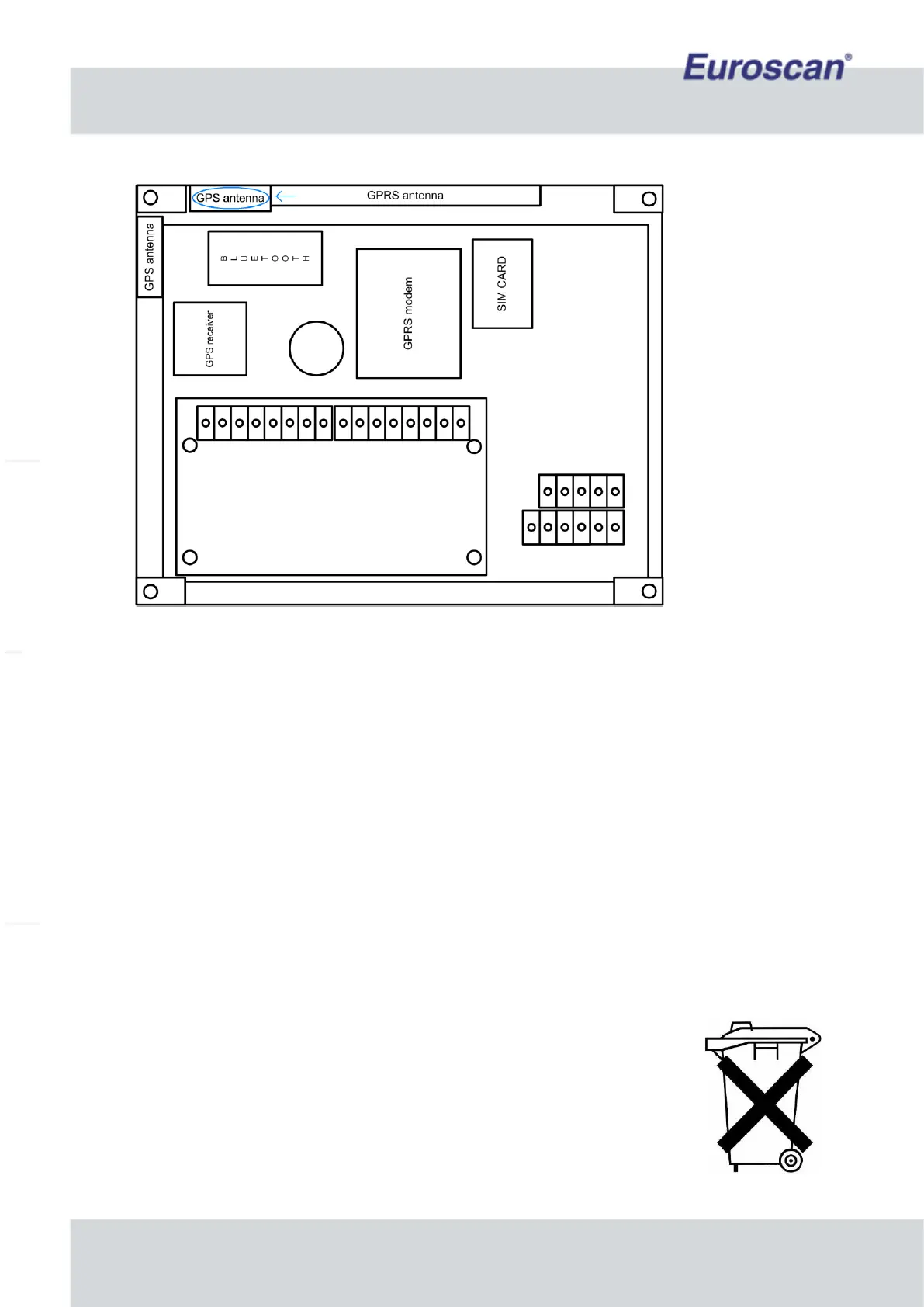

Fig. 12 Location of GPS-antenna with horizontal recorder mounting
3. Final testing installation
The following features must be checked after installation:
Power supply
The supply voltage range is between 10-36 volts DC. The supply cable must be protected with a 10A floating
fuse at the point of connecting to V+.
Temperature sensors
After approximately 5 minutes, the temperature should be correctly displayed.
A value of -40°C indicates the possibility of a non connected sensor or a cable failure, while a value of +50°C
indicates a possible short circuit between the connector pins.
Environmental
In the case of the MX1 recorder being discarded, potential environmental hazardous
components should be removed and discarded safely.
A 3,2 V backup battery has been integrated in the recorder circuit, to preserve clock
settings etc. Separate the lithium cell from the recorder’s main PCB and deliver it to the
appropriate waste treatment centre.
Dispose separately: Do NOT throw batteries into the regular waste bin!
