52

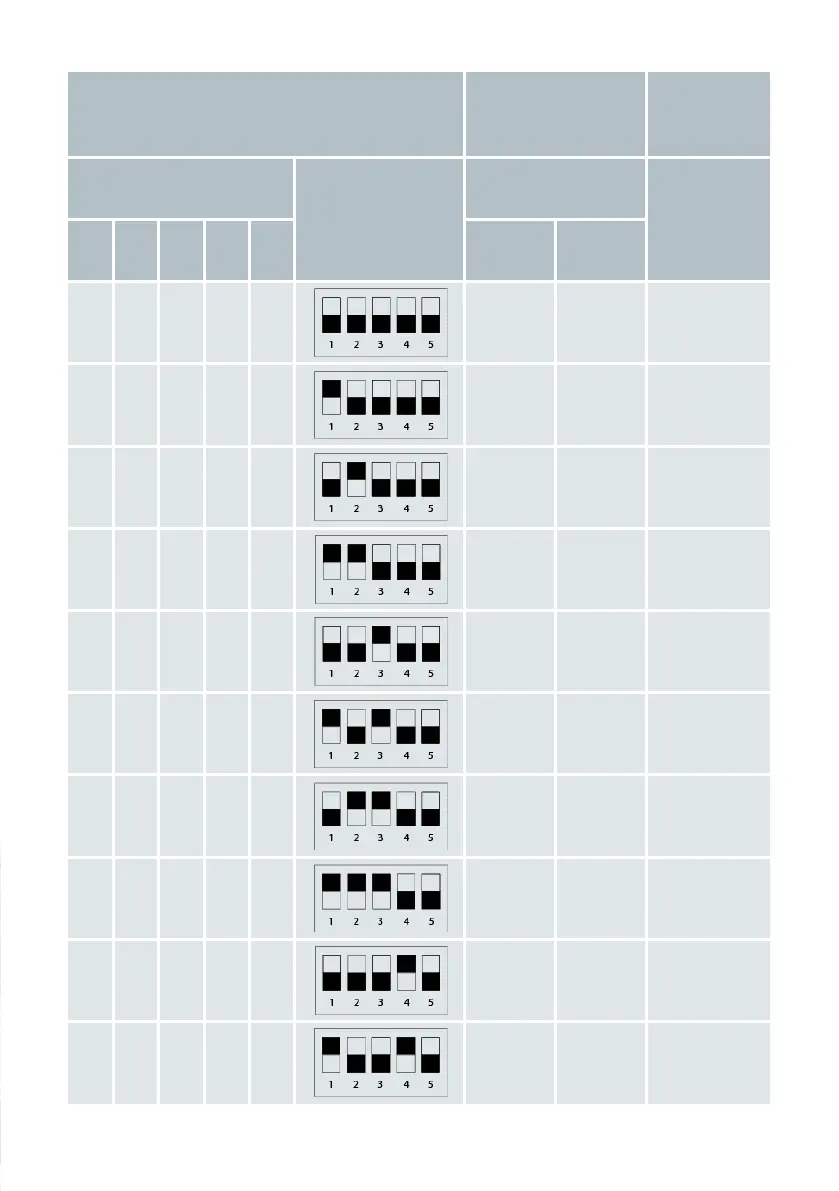

Group B switches No CT coil attached CT coil
DIP-switch number and
position
Illustration
Station Max Current
Facility/
house Max
Current per
phase
1 2 3 4 5
16 A
3-phase
32 A
1-phase
0 0 0 0 0 16 A 32 A 0 A
1 0 0 0 0 6 A 6 A 6 A
0 1 0 0 0 7 A 7 A 8 A
1 1 0 0 0 8 A 8 A 10 A
0 0 1 0 0 9 A 9 A 13 A
1 0 1 0 0 10 A 10 A 16 A
0 1 1 0 0 11 A 11 A 20 A
1 1 1 0 0 12 A 12 A 25 A
0 0 0 1 0 13 A 13 A 28 A
1 0 0 1 0 14 A 14 A 32 A
