53

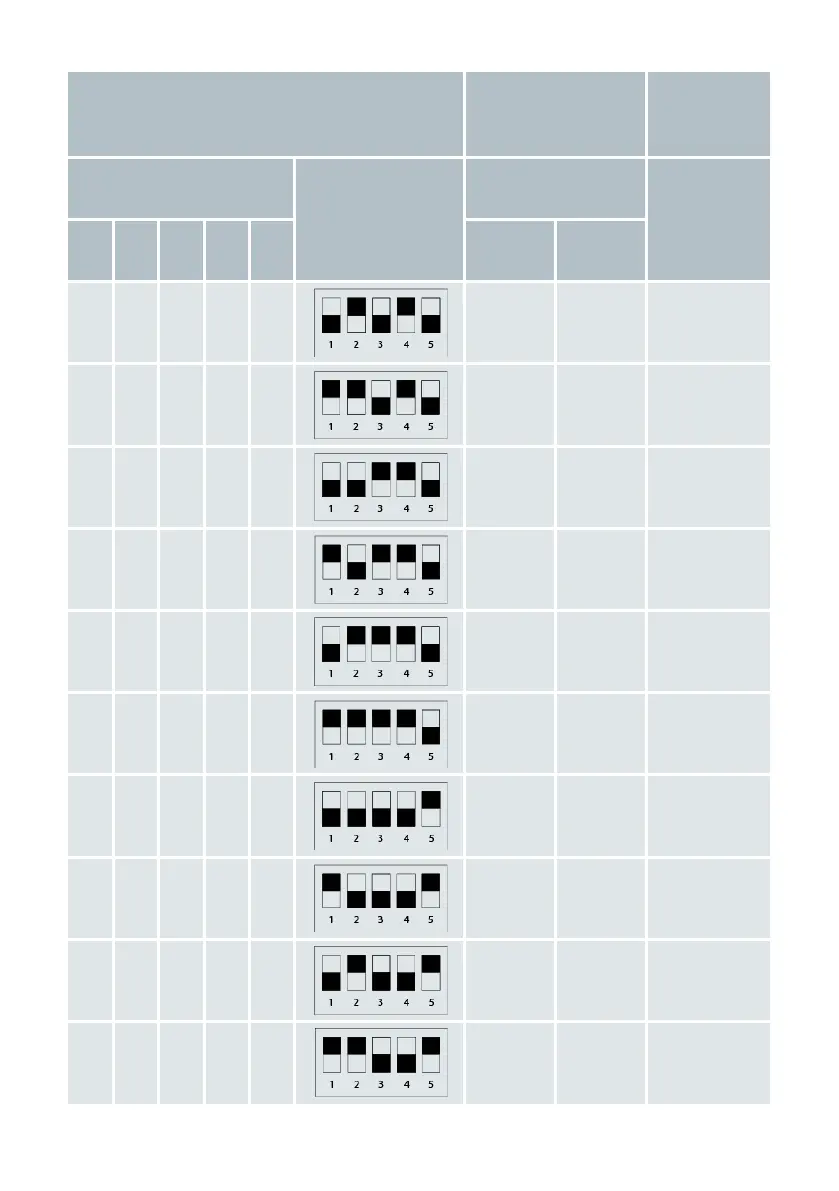

Group B switches No CT coil attached CT coil
DIP-switch number and
position
Illustration
Station Max Current
Facility/
house Max
Current per
phase
1 2 3 4 5
16 A
3-phase
32 A
1-phase
0 1 0 1 0 15 A 15 A 35 A
1 1 0 1 0 invalid 16 A 40 A
0 0 1 1 0 invalid 17 A 50 A
1 0 1 1 0 invalid 18 A 60 A
0 1 1 1 0 invalid 19 A 63 A
1 1 1 1 0 invalid 20 A 80 A
0 0 0 0 1 invalid 21 A 100 A
1 0 0 0 1 invalid 22 A 120 A
0 1 0 0 1 invalid 23 A 140 A
1 1 0 0 1 invalid 24 A 150 A
