C-PRO NANO HARDWARE MANUAL
Page 10
3.3 C-PRO NANO dimensions/installation

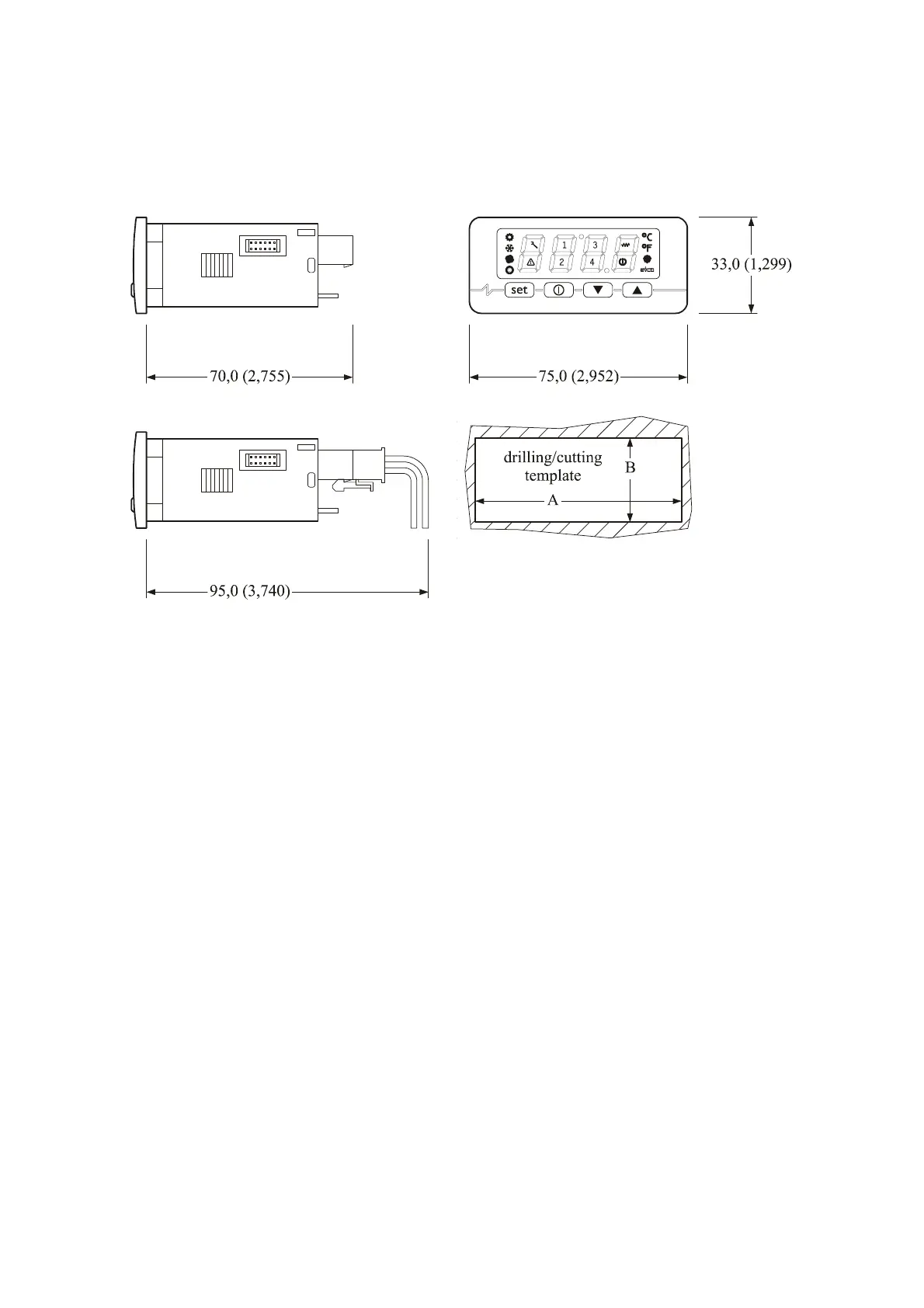

The mechanical dimensions for the C-PRO NANO are given below; the measurements are in mm (in).
For fitting, use the snap-on brackets provided.
Dimension Minimum Typical Maximum
A 71.0 (2.795) 71.0 (2.795) 71.8 (2.826)
B 29.0 (1.141) 29.0 (1.141) 29.8 (1.173)
Recommendations for installation:
- the panel thickness must not exceed 8 mm (0.314 in)
- 95.0 (3.740) is the maximum depth with casing 0065300060 correctly inserted (the connector is not
supplied with the device)
- ensure that the operating conditions (operating temperature, humidity, etc.) are within the limits
indicated in the technical data sheets
- do not install the device near to any sources of heat (heating elements, hot air conduits, etc.),
equipment containing powerful magnets (large diffusers, etc.), areas affected by direct sunlight, rain,
humidity, excessive dust, mechanical vibration or shock
- in compliance with safety regulations, the device must be installed correctly, and in such a way as to
protect against any contact with electrical parts; all safety devices must be fixed so that they cannot be
removed without the use of tools.
