C-PRO NANO HARDWARE MANUAL
Page 22
6.1.2 V WALL dimensions and installation
For wall installation, use appropriate rawplugs and screws.

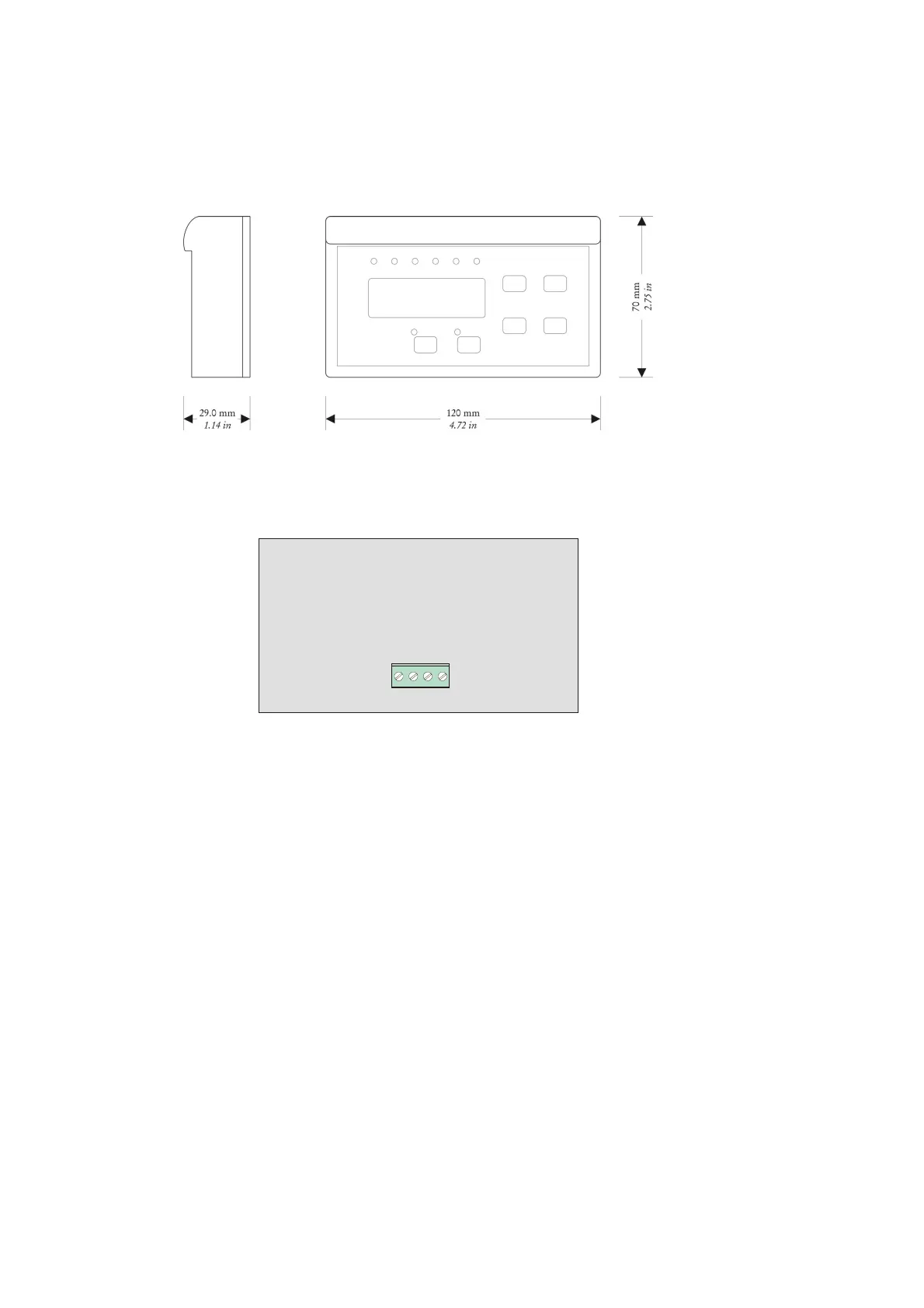

Wall-mounted version - dimensions
Connections
CI2
DATA
GND
1
2
3
1
2
V
a
c
4
1
2
V
a
c
Wall-mounted version wiring diagram
