C-PRO NANO HARDWARE MANUAL
Page 33
6.5 Programming accessories

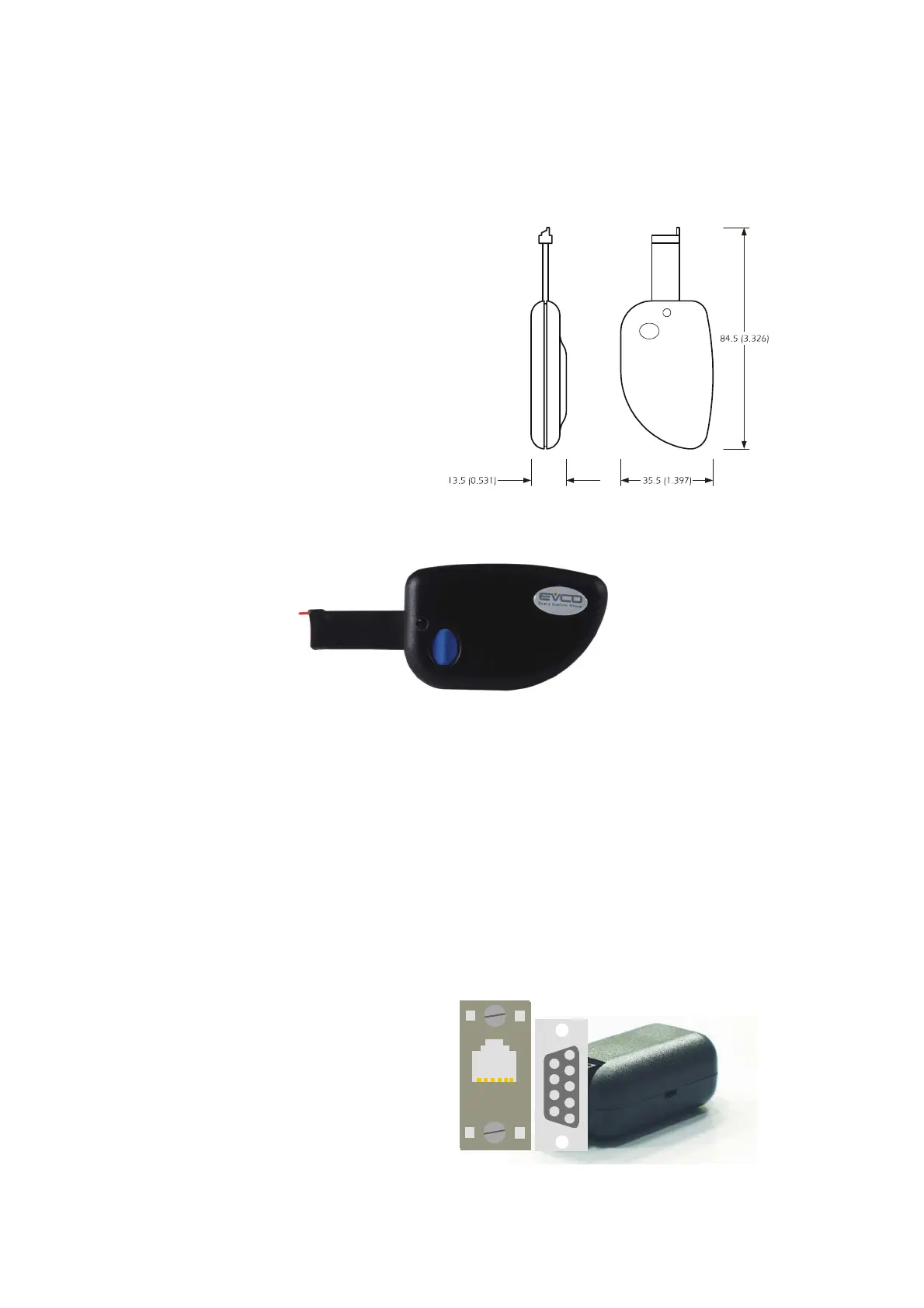

6.5.1 EVKEY programming key
The EVKEY programming key allows
downloading/uploading parameters
(even when the controller is not powered; in this
case it is necessary to use the EVPS power
supply).
The key is connected to the special 6 way AMP
micro-match connector, also used for
supervision.
EVKEY
6.5.2 EVPROG programming kit
The EVPROG programming kit allows downloading programs into the flash memory of the C-PRO NANO
controller (even when the controller is not powered; in this case, it is necessary to use the EVPS power supply).
The EVPROG is connected to the special 6 way AMP micro-match connector, also used for the parameter
programming key or for supervision.
The kit is comprised of the following components:
1. The EVIF20TRX interface.
2. Pony Prog (9 pin – RJ 11) tray adapter.
3. ECCC506 telephone cable.
Preparation of the EVPROG kit hardware:
Connect the Pony Prog tray adapter to the
computer serial port. Connect the EVIF20TRX
interface to the controller AMP micro-match
connecter. Connect one end of the ECCC506
telephone cable to the Pony Prog tray adapter,
and the other end to the EVIF20TRX interface.
ABCDEF
1
2
3
45
6
7
8
9
RJ11 / DB-9
Micro-Match / RJ11
EVPROG
