C-PRO NANO HARDWARE MANUAL
Page 29

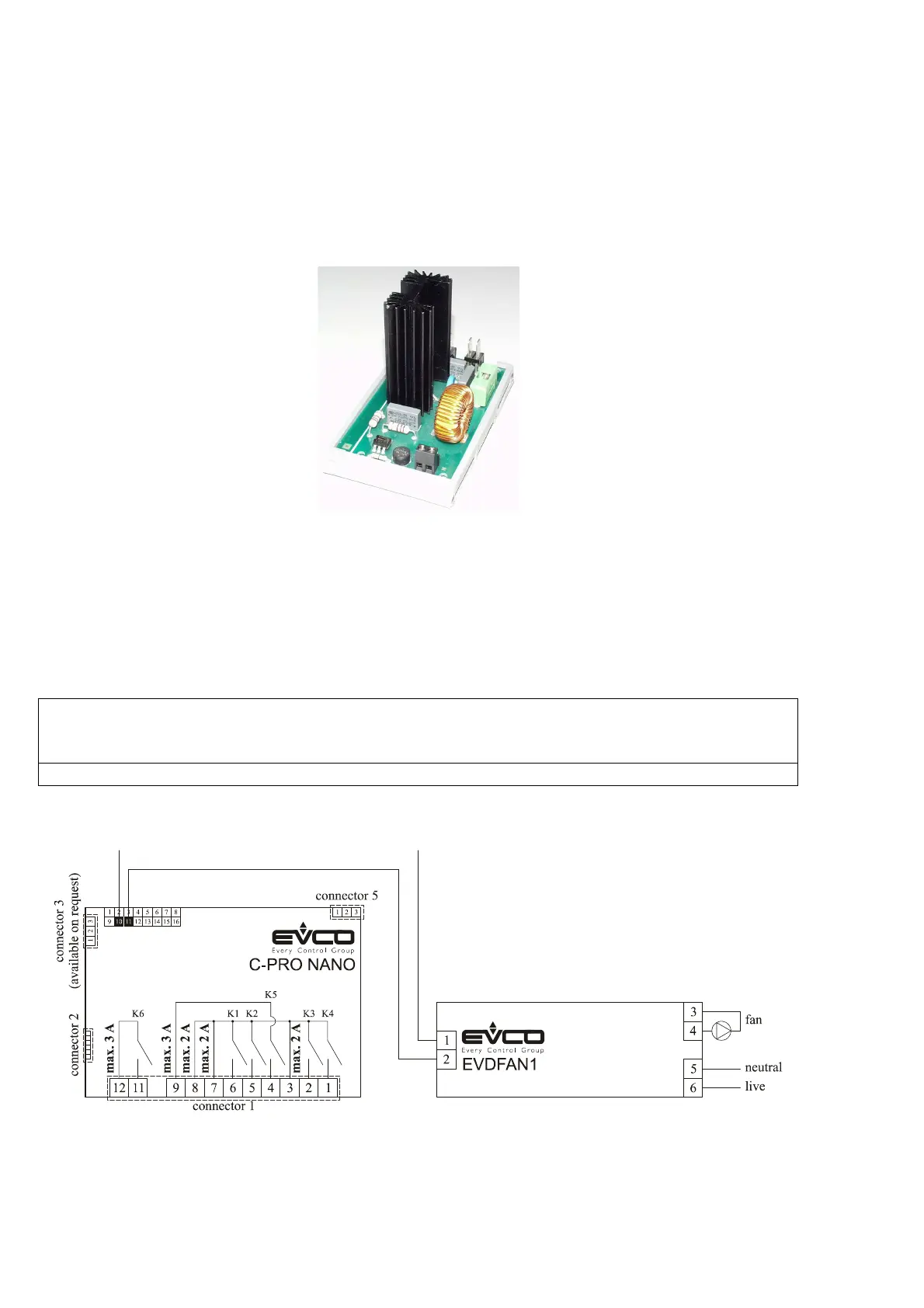

6.3 EVDFAN1 cut-off speed regulator
The EVDFAN1 is a cut-off speed regulator for controlling single-phase fans (fans with maximum current
absorption equal to 5 A).
It is ideal for controlling the condensation/evaporation fans on a refrigeration control unit.
EVDFAN1
The fan module is available as an open card version, and is mounted on a plastic base suitable for fitting on a
DIN rail.
135 mm x 71 mm
DIN rail fan module dimensions
Connections
C-PRO NANO with EVDFAN1 wiring diagram
To Next Page
