C-PRO NANO HARDWARE MANUAL

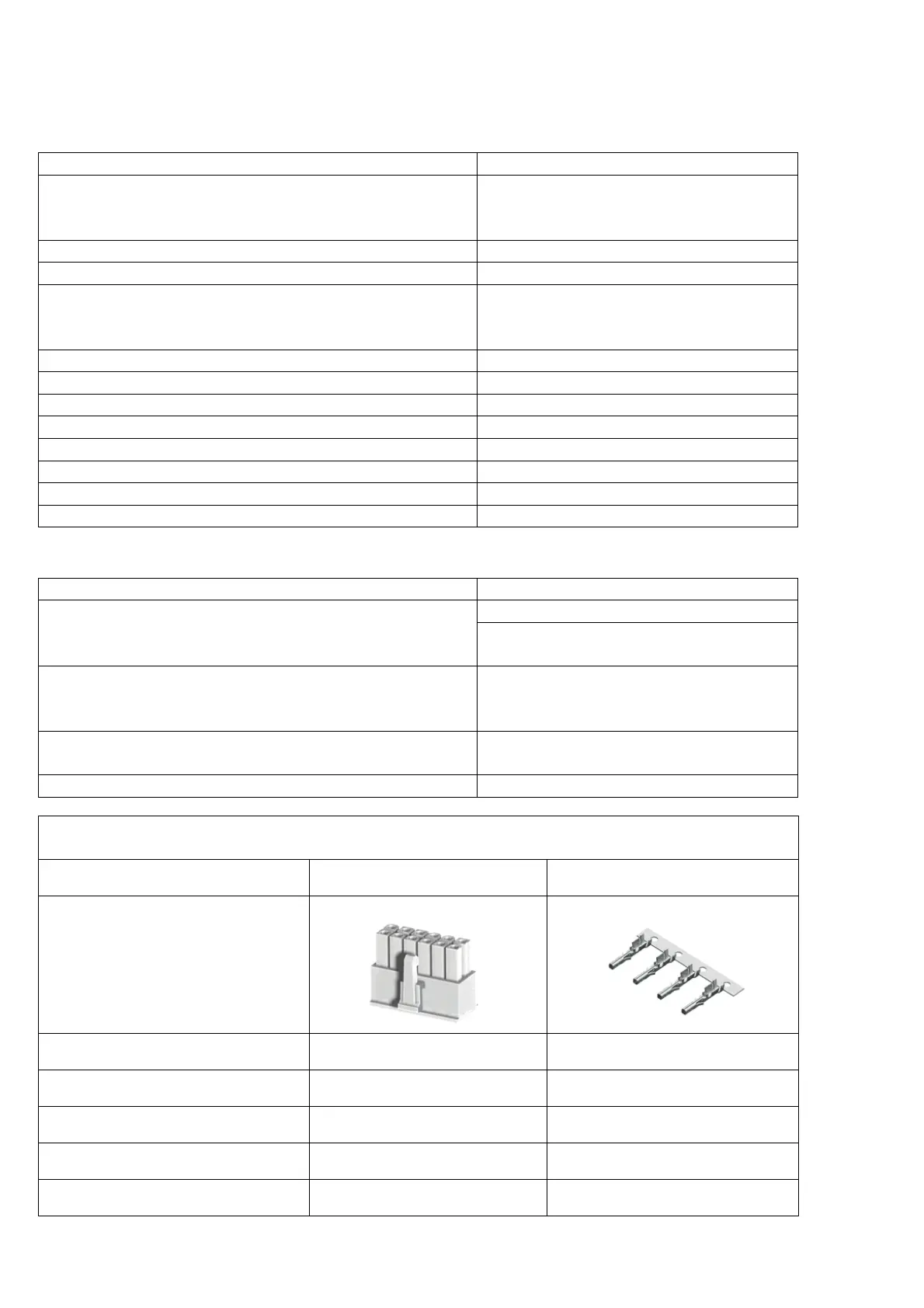

Page 11
3.4 General characteristics
Safety reference standards EN60730-1
Scope of the device A programmable electronic controller for
refrigeration, ventilation and air
conditioning applications
Storage conditions -10T70°C Non-condensing RU<80%
Operational conditions 0T50°C Non-condensing RU<80%
Electric shock protection class Add-on control device; assumes the
classification of the equipment into
which it is integrated
Disconnection type Reduced interruption (relay breakers)
PTI of the insulation materials >=250 V
Case Panel mounted
Action type 1C
Pollution Normal
Software class A
Insulated parts electrical stress period Long
Front panel protection classification IP65
3.5 Technical characteristics
Low voltage signal connections 16 way Mini-Fit
Power connector 12 way Inarca Edge connector
Cable diameter > 0.75 mm
2
; as
altenative, 12 way Sauro Edge connector
Connection for connecting the EVCO powered serial
port to the remote keypad and/or remote I/O expansion
card
JST 3 way P2.5
Connection for parameter key, TTL serial output for
RS485 module, Flash programming interface
6 way AMP micro-match
Connection for D/A output JST 3 way P2.5
16 WAY MINI-FIT CONNECTOR SPECIFICATIONS
SUPPLIER CONNECTOR CODE CONTACT CODE
Please note:
use the special tool for crimping
CVILUX CP-01 116010 (V2)
CP-01 116020 (V0)
CP-01 1000102 (AWG16÷24)
SELECOM 6137R16WO (V2) 6137TR1 (AWG16÷20)
6137TR2 (AWG22÷26)
JUSCOM 1090-557-162 (V2) 1150-156-012 (AWG18÷22)
1150-156-002 (AWG22÷26)
CONEXCON 6740-1161 (V2)
6740-1160 (V0)
6744-2000 (AWG18÷22)
MOLEX 39-01-2160 (V2)
39-01-2165 (V0)
39-00-0038 (AWG18÷24)
39-00-0046 (AWG22÷28)
