C-PRO NANO HARDWARE MANUAL
Page 31
6.4 Accessories for supervision and monitoring
These modules allow the conversion of TTL signals to RS485 signals (with or without isolation) for supervision
using the MODBUS protocol.
The modules connect to the special 6 way AMP micro-match connector on the controller; this connector is
shared with the parameter programming key and with the controller flash memory programming tools.

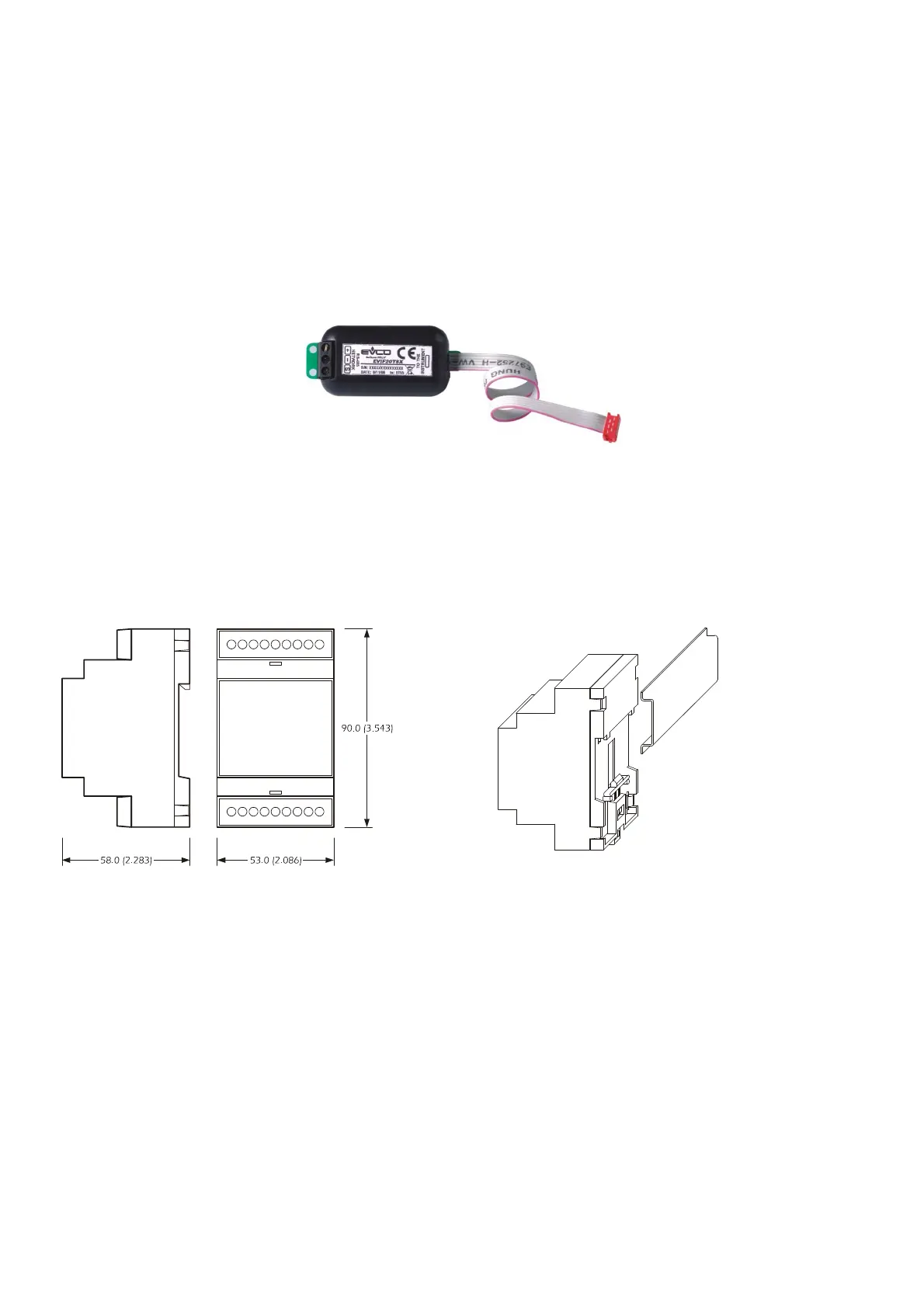

6.4.1 Non-insulated TTL/RS485 interface
EVIF20TSX
6.4.2 Insulated TTL/RS485 interface
EVIF21TS7I dimensions/installation
EVIF21TS7I
Dimensions/Installation on DIN rail
