Evco EV3 MVC Applications Manual

EVCO S.p.A. EV3 MVC & EVD MVC | Application manual ver. 2.2c | Code 1443DMVCI224
page 12 of 74

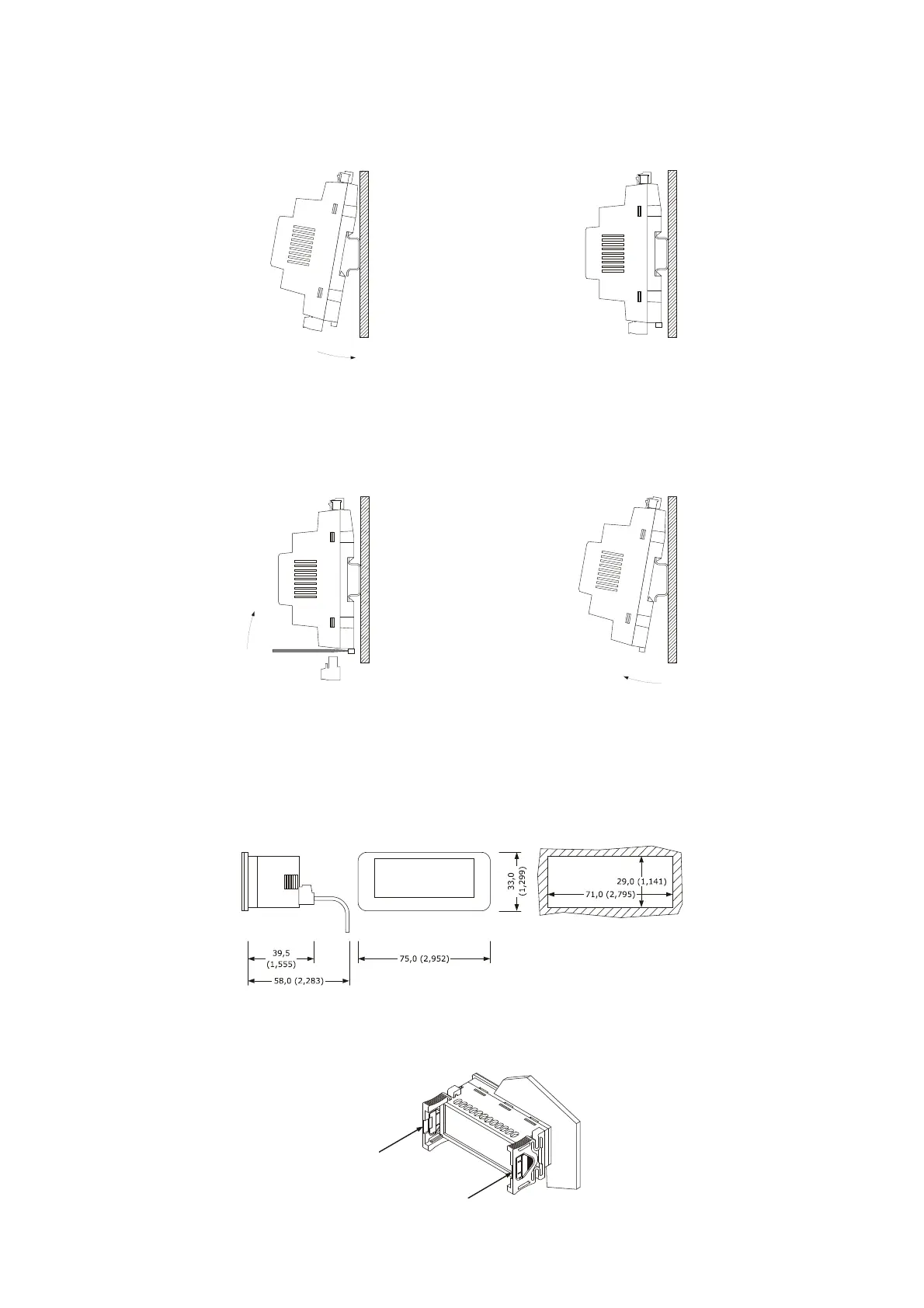

The pictures below show how to install the EVD MVC.
1 2
To remove the EVD MVC, first remove any plug-in screw terminal blocks fitted in the lower part, then, using a screwdriver, loosen the
DIN rail clip, as shown in the pictures below.
3 4
To re-install the EVD first press the DIN rail clip fully in.
3.3 Measurements and installation of EV3K11
The pictures below show the measurements of EV3K11; measurements are expressed in mm (inches).
To be installed on a panel with the snap-in brackets provided.
The thickness of the panel on which the EV3K11 is to be installed must be between 0.8 and 2.0 mm (0.031 and 0.078 in).

Evco EV3 MVC Specifications

General

Brand	Evco
Model	EV3 MVC
Category	Controller
Language	English
