Evco EVD MVC Series Applications Manual

EVCO S.p.A. EV3 MVC & EVD MVC | Application manual ver. 2.2c | Code 1443DMVCI224
page 65 of 74
Configuration download
N.B.
- the configuration download is allowed on condition that the firmware of the controller of origin coincides with the firmware of
the controller of destination
- if the configuration download fails, it could be necessary to restore the factory settings (default) of the controller; see the
relative instruction sheet.

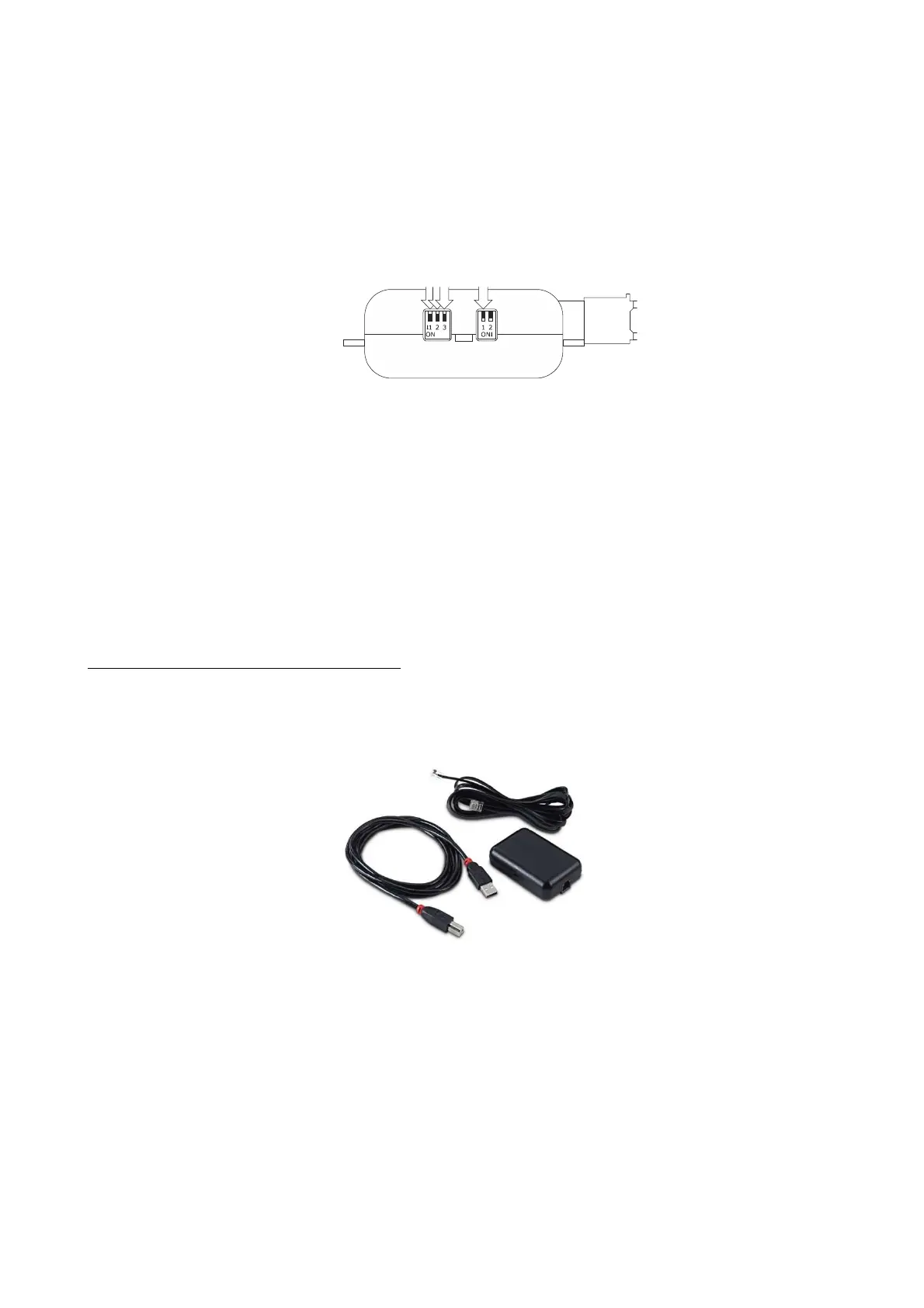

1. Place micro-switch 1, 2 and 3 of the three-positions DIP in position OFF and micro-switch 1 and 2 of the two-positions DIP in
position ON.
2. Disconnect the controller from the mains; see the relative instruction sheet.
3. Connect the device to the INTRABUS port of the controller as shown in the section ELECTRICAL CONNECTION, or:
- connect terminal 1 to terminal “12 V”
- connect terminal 2 to terminal “data INTRABUS”
- connect terminal 3 to terminal “reference (GND)”.
4. Power up the controller; see the relative instruction sheet.
The recognizing of the device will be run.
The recognizing normally takes a few seconds, when it is finished the green LED and the red LED will firmly switch on.
Later the configuration download will be run.
The download normally takes a few seconds. If the download is succesfully completed, the green LED switches on firmly and
the red LED switches off; vice versa if the download fails, the green LED switches off and the red LED switches on firmly
(repeat the upload).
For further information see the relative instruction sheet.
13.2 RS-485/USB EVIF20SUXI serial interface
This interface makes it possible to connect EV3 MVC and EVD MVC to the Parameters Manager set-up software system.
