EVCO S.p.A.
EV3 MVC & EVD MVC | Application manual ver. 2.2c | Code 1443DMVCI224
page 9 of 74
2.3 Description of EV3K11

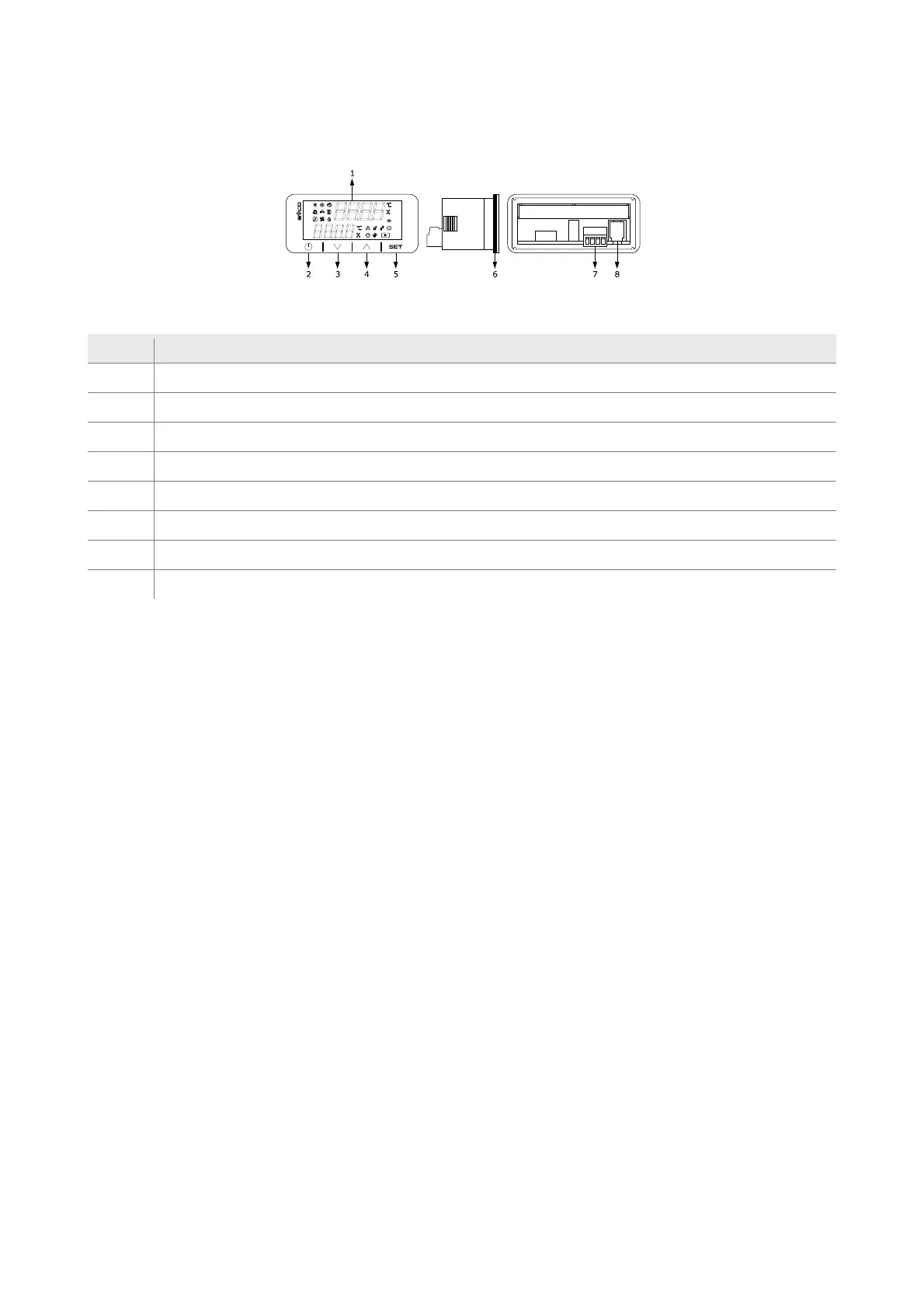

The diagram below shows the layout of the EV3K11 remote keypad for panel installation in standard 74x32 mm format.
The table below describes each part of the EV3K11.
Part Description
1 display
2 on/off key, subsequently also called the on/stand-by key
3 decrease key, subsequently also called the Down key
4 increase key, subsequently also called the Up key
5 setting key, subsequently also called the Set key
6 seal
7 male + female plug-in screw terminal block for cabling for the power supply and the INTRABUS port
8 unused
