16
1. PS/2 Keyboard Port
2. USB 2.0 Ports (Eight)
3. Clear CMOS Button
4. Coaxial SPDIF Output
5. Optical SPDIF Output
6. LAN Port with LEDs to indicate status:
7. Audio Port 2-Channel 6-Channel 8-Channel________
Blue Line-In Line-In Line-In
Green Line-Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In
Orange Center/Subwoofer Center/Subwoofer
Black Rear Speaker Out Rear Speaker Out
Grey Side Speaker Out

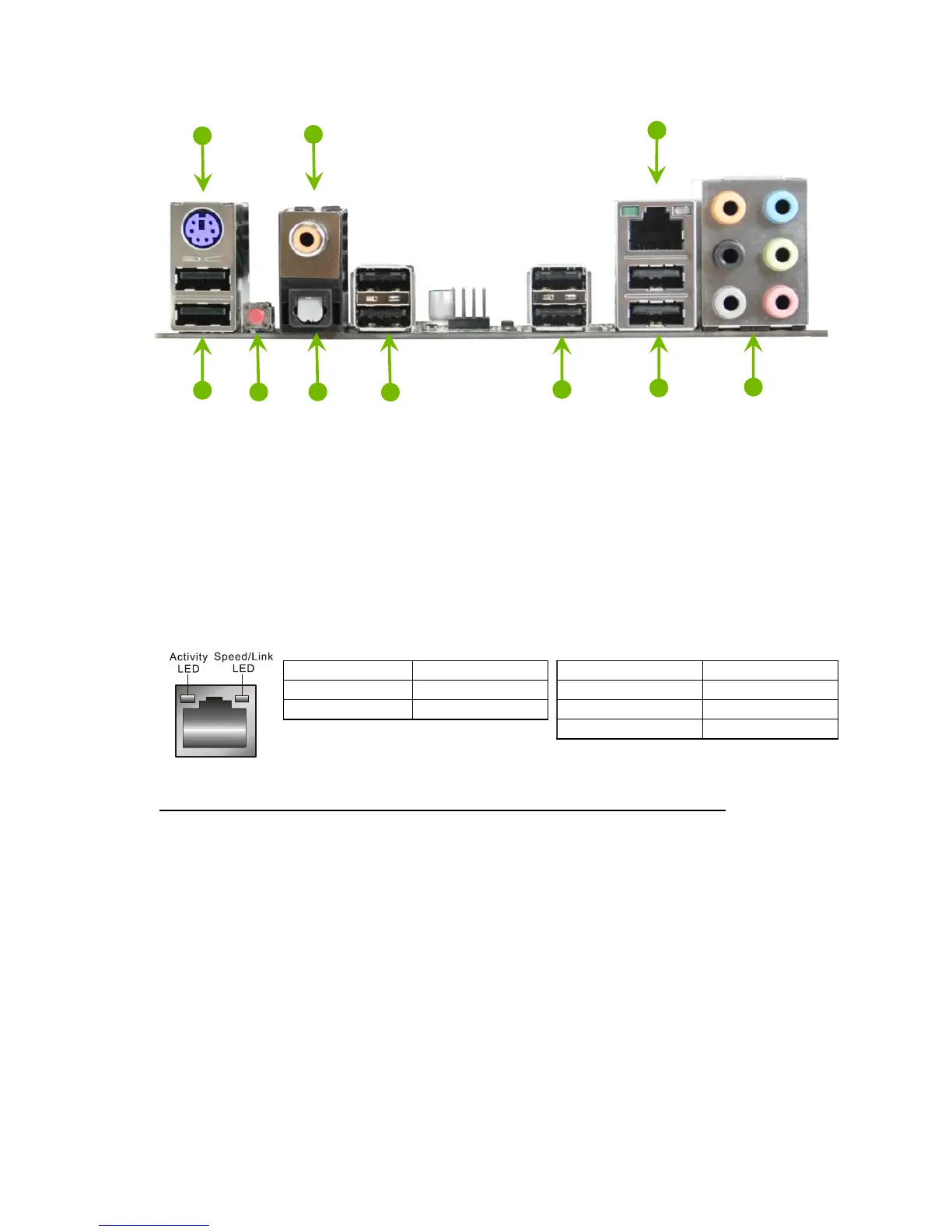

Figure 2. Chassis Back Panel Connectors
1
2
2
2
5
2
6
Activity LED Status
Description
Off
No data transmission
Blinking (Green)
Data transmission
Speed/Link LED Status
Description
Yellow
1000 Mbps data rate
Green
100 Mbps data rate
Off
10 Mbps data rate
4
7
3
