DWG.
NO.
25695
B
DWG SIZE
DO NOT
SCALE
LR50160 COMPLETE
SHEET 5 of 10
DESCRIPTION
HARDEE BY
EVH MFG. CO.
LORIS S.C.
R.M.N.
N/A
Manufactured By:
EVH Mfg. Co., LLC
MATERIAL
MODELED
BY
T.B.B. 3/11/14
DRAWN
BY
C.K.N. 3/23/10
Decimal Dim. to Limits Shown All Holes to be +0 -1/32"
Tolerance Unless Otherwise Specified
All Dimensions in Inches Unless Otherwise Specified
Dimensions in [ ] are in Millimeters
Item
Part
Number
Qty. Description
1 10207 2 Flatwasher, 1" plated
2 10252 2 Cotter Pin 3/16" X 2" Plated
3 10346 2 3 pt. Snap Pin (Lynch Pin)
4 10390 3 Clip Pin (1/8 x 2)
5 10393 3 Universal Clip Pin
6 10419 2 Hitch Pin, Cat. 2 & 3, Clevis Style
7 10538 2 Sleeve for 10419 Pin
8 13905 2 6-M-JIC X 8-M-NPT 90 Deg. Elbow
9 15251 1 1" Hose Clamp Body (SET OF 2)
10 15255 1 Hose Clamp Cover Plate
11 15256 2 Hex Bolt (1/4" X 2-3/8" Gr. 5 Plated)
12 15466 2 Tubing Insert, 3-1/2" Sqr. X 11
13 16747 1 CYLINDER, 3 X 17"
14 23160 2 Stand Weldment, 17-7/8" Tall
15 23232 1 Support Brace
16 23340 1 Stand Weldment
17 25724 2 WELDMENT, Cylinder Pin
18 25930 1 ASSEMBLY Hitch Frame, LR50160 / LR50148
Item Part
Number
Qty. Description
A 10092 1 HEX BOLT (5/8" X 2" GR. 5 PLATED)
B 10204 4 FLAT WASHER, 1/2" Plated, USS
C 10215 1 FLAT WASHER (1-1/2") USS Plain Zinc
D 10237 4 COTTER PIN (1/8" X 1-1/4" PLATED)
E 16294 1 LOCKNUT, 1-1/2"-12 Zinc Plated Nylon Insert Jam
F 23257 2 BUSHING W/ GREASE FITTING, 4-1/4" OD
G 23258 2 BUSHING, 4-1/4" OD X 7/8" LG.
H 23261 1 WELDMENT, Swivel, LR50160
I 23268 2 BUSHING W/GREASE FITTING, 4-1/4" OD
J 23272 2 HOSE BRACKET ROLLER
K 23273 2 Hose Bracket Rod
L 23284 1 WELDMENT, Swing arm shaft, LR50160/LR40160
M 10322 5 GREASE FITTING, 1/4"-28 Thd
REV CHANGE BY DATE ECN
C
Modeled & Re-Drawn in Creo 2.0
T.B.B. 3/11/14 1572
D
Stand Weldment Replaced (23160 was 23038)
T.B.B. 1/19/16 1620
E
Pump 15240 Has Changed To Pump 16705 T.B.B. 12/14/16 1672
Cylinder 10448 Has Changed To Cylinder 16747
T.B.B. 1/16/17 1655
F
Cylinder 15928 Has Changed To 16750
Cylinder 10454 Has Changed To 16751
T.B.B. 2/3/17 1672
G
16845 REPLACED 16750 (Hyd. Cylinder) V.A.M. 8/11/17 1686
G
25695
DWG.
NO.

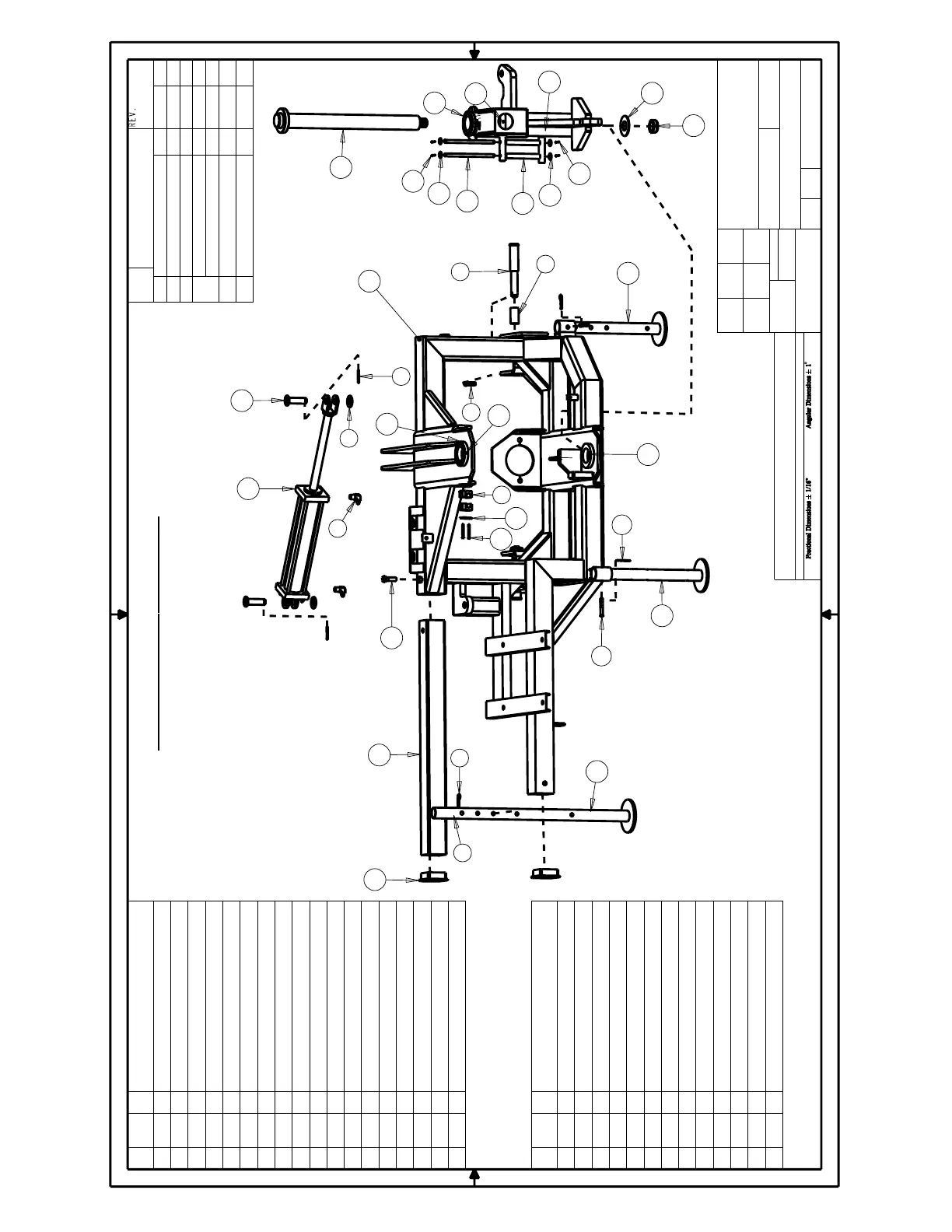

Hitch Frame & Swivel
1
2
3
4
5
6
7
8
10
11
12
15
16
18
A
F
L
H
I
B
D
C
E
J
K
G
B
D
4
5
M
M
9
14
17
14
13
33
