DWG.
NO.
25695
B
DWG SIZE
DO NOT
SCALE
LR50160 COMPLETE
SHEET 6 of 10
DESCRIPTION
HARDEE BY
EVH MFG. CO.
LORIS S.C.
R.M.N.
N/A
Manufactured By:
EVH Mfg. Co., LLC
MATERIAL
MODELED
BY
T.B.B. 3/11/14
DRAWN
BY
C.K.N. 3/23/10
Decimal Dim. to Limits Shown All Holes to be +0 -1/32"
Tolerance Unless Otherwise Specified
All Dimensions in Inches Unless Otherwise Specified
Dimensions in [ ] are in Millimeters
Item
Part
Number
Qty. Description
1 10034 2 Hex Bolt 3/8" x 2-1/2" gr.5 plated
2 10166 6 Lock Nut 5/8"-11 plated
3 10175 2 3/8"-16 Locknut (Gr.5 Plated)
4 10204 6 1/2 Flatwasher (Plated)
5 10207 7 Flatwasher, 1" plated
6 10252 5 Cotter Pin 3/16" X 2" Plated
7 11032 1 Small Hardee Logo Decal
8 13905 4 6-M-JIC X 8-M-NPT 90 Deg. Elbow
9 16751 1 CYLINDER, 4 X 24 TIE ROD, Long Rod, LR"
10 16845 1 Cylinder, 4" X 24" With 2.0" Rod
11 23280 1 WELDMENT, Cylinder Breakaway
12 23294 1 1st Stage Boom
13 23349 1 Outer Hose Guard Weldment
14 23352 1 Inner Hose Guard Weldment
15 23379 2 1-1/4" X 9" Pin Weldment for LR's
16 23434 2 Pin Weldment
17 23457 2 COLLAR, for 23379 PIN (Bushing)
18 25117 2 Spacer
19 25724 3 WELDMENT, Cylinder Pin
REV CHANGE BY DATE ECN
C
Modeled & Re-Drawn in Creo 2.0
T.B.B. 3/11/14 1572
D
Stand Weldment Replaced (23160 was 23038)
T.B.B. 1/19/16 1620
E
Pump 15240 Has Changed To Pump 16705 T.B.B. 12/14/16 1672
Cylinder 10448 Has Changed To Cylinder 16747
T.B.B. 1/16/17 1655
F
Cylinder 15928 Has Changed To 16750
Cylinder 10454 Has Changed To 16751
T.B.B. 2/3/17 1672
G
16845 REPLACED 16750 (Hyd. Cylinder) V.A.M. 8/11/17 1686
G
25695
DWG.
NO.

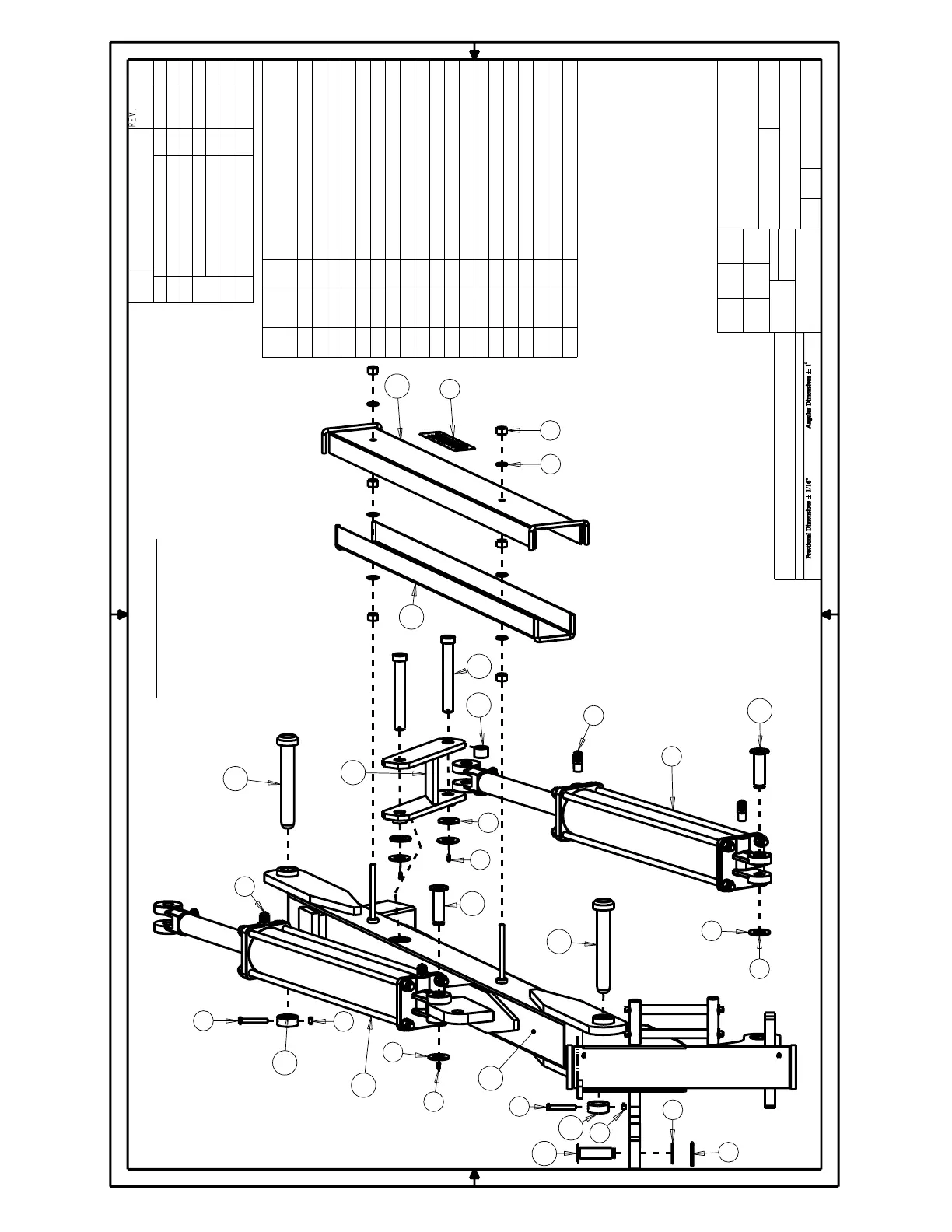

1st Stage Boom
1
5
6
8
11
12
13
14
15
16
17
18
3
6
5
8
6
5
1
17
3
5
6
19
15
7
2
4
19
19
9
10
34
To Next Page
