DWG.
NO.
25695
B
DWG SIZE
DO NOT
SCALE
LR50160 COMPLETE
SHEET 7 of 10
DESCRIPTION
HARDEE BY
EVH MFG. CO.
LORIS S.C.
R.M.N.
N/A
Manufactured By:
EVH Mfg. Co., LLC
MATERIAL
MODELED
BY
T.B.B. 3/11/14
DRAWN
BY
C.K.N. 3/23/10
Decimal Dim. to Limits Shown All Holes to be +0 -1/32"
Tolerance Unless Otherwise Specified
All Dimensions in Inches Unless Otherwise Specified
Dimensions in [ ] are in Millimeters
Item
Part
Number
Qty. Description
1 10175 2 3/8"-16 Locknut (Gr.5 Plated)
2 10204 2 1/2 Flatwasher (Plated)
3 10207 12 Flatwasher, 1" plated
4 10252 6 Cotter Pin 3/16" X 2" Plated
5 13905 2 6-M-JIC X 8-M-NPT 90 Deg. Elbow
6 16138 2 Lock Nut 7/16"-14 NC with Nylon Insert
7 16747 1 CYLINDER, 3 X 17"
8 23130 1 Pivot Sleeve
9 23131 1 End Cap Weldment
10 23287 2 Boom To Deck Bracket Weldment
11 23290 2 WELDMENT, Boom to Deck Bracket, 21"
12 23292 1 PIN WELDMENT (1" x 5" LG)
13 23310 1 2nd Stage Boom
14 23345 1 Head Mounting Bracket Weldment
15 23355 1 WELDMENT, GUARD
16 23361 2 Spacer, 1" X 2-1/8"
17 23363 2 SPACER (1" SCH 40 Pipe x 5/8")
18 23380 1 WELDMENT, 1" x 6 1/4" PIN
19 23434 3 Pin Weldment
20 25724 1 WELDMENT, Cylinder Pin
REV CHANGE BY DATE ECN
C
Modeled & Re-Drawn in Creo 2.0
T.B.B. 3/11/14 1572
D
Stand Weldment Replaced (23160 was 23038)
T.B.B. 1/19/16 1620
E
Pump 15240 Has Changed To Pump 16705 T.B.B. 12/14/16 1672
Cylinder 10448 Has Changed To Cylinder 16747
T.B.B. 1/16/17 1655
F
Cylinder 15928 Has Changed To 16750
Cylinder 10454 Has Changed To 16751
T.B.B. 2/3/17 1672
G
16845 REPLACED 16750 (Hyd. Cylinder) V.A.M. 8/11/17 1686
G
25695
DWG.
NO.

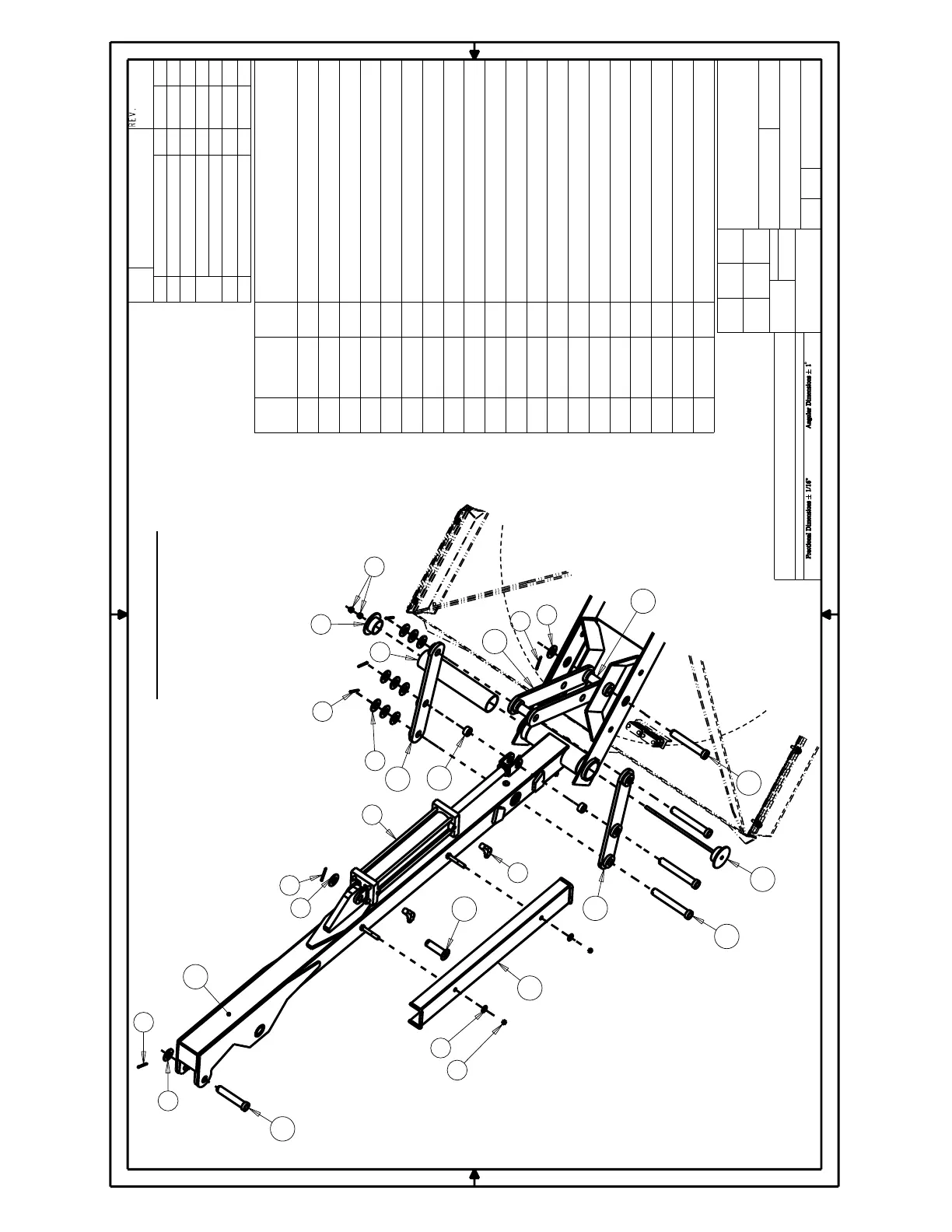

2nd Stage Boom
1
3
5
6
8
9
10
11
12
13
14
15
16
17
18
19
20
4
6
3
4
3
4
4
3
10
2
7
35
To Next Page
