DWG.
NO.
25695
B
DWG SIZE
DO NOT
SCALE
LR50160 COMPLETE
SHEET 8 of 10
DESCRIPTION
HARDEE BY
EVH MFG. CO.
LORIS S.C.
R.M.N.
N/A
Manufactured By:
EVH Mfg. Co., LLC
MATERIAL
MODELED
BY
T.B.B. 3/11/14
DRAWN
BY
C.K.N. 3/23/10
Decimal Dim. to Limits Shown All Holes to be +0 -1/32"
Tolerance Unless Otherwise Specified
All Dimensions in Inches Unless Otherwise Specified
Dimensions in [ ] are in Millimeters
Item
Part
Number
Qty. Description
1 10006 4 Hex Bolt 1/4" x 3" gr.5 plated
2 10031 2 Hex Bolt 3/8 x 1 gr.5 plated
3 10071 2 Hex Bolt 1/2 x 1 gr.5 plated
4 10093 2 Hex Bolt 5/8" x 2-1/2" gr.5 plated
5 10111 4 Hex Bolt 3/4"-10 X 2" gr.5 Plated
6 10153 4 Lock Nut, 1/4" Plated
7 10154 1 Lock Nut 5/16"-18 Plated
8 10166 2 Lock Nut 5/8"-11 plated
9 10168 10 3/4"-10 Locknut (Gr.5 Plated)
10 10175 2 3/8"-16 Locknut (Gr.5 Plated)
11 10176 2 1/2" Locknut (Gr.5 Plated)
12 10181 1 Lockwasher 5/16" plated
13 10185 2 Lockwasher 5/8" Plated
14 10186 10 Lockwasher 3/4" Plated
15 10202 4 3/8" Flatwasher (Plated)
16 10204 4 1/2 Flatwasher (Plated)
17 10206 8 Flatwasher 3/4 plated
18 10388 1 O-Ring
19 10872 2 Pressure Flange SET
20 15242 1 Hydraulic Vane Motor
21 15251 1 1" Hose Clamp Body (SET OF 2)
22 15252 1 3/4" Hose Clamp Body (SET OF 2)
23 15255 2 Hose Clamp Cover Plate
24 15338 1 Danger Decal, Exposed Blades
25 15481 1 Slotted Hex Nut 1-1/4" -18UNEF
26 15845-1 1 DANGER DECAL (KIT 15845)
27 15845-10 1 WARNING DECAL (KIT 15845)
28 15845-11 1 WARNING DECAL (KIT 15845)
29 15852 1 Red Reflector Decal
30 15853 1 Yellow Reflector Decal
31 15968 1 Cotter Pin 1/4" x 3"
32 16579 1 Hydraulic Motor Housing Assembly
33 20031 1 Access Cover
34 22710 1 Short Belting Flat
35 22728 1 DB4060/LR50160 Rubber Belting Kit
36 22768 1 LR50160 Front Corner Belting
37 22770 1 LR40148 / LR50148 Belting Extension Kit
38 22781 1 LR50160 Deck Weldment (6 Bolt)
39 23320 1 Cylinder Mount Weldment
40 25841 1 BLADE HOLDER WITH BLADES, LR50160
Blade Holder Option:
Blade Holder w/ Blades & Stump Jumper Pan
P/N: 25941
See Blade Holder Options Page For Breakdown
REV CHANGE BY DATE ECN
C
Modeled & Re-Drawn in Creo 2.0
T.B.B. 3/11/14 1572
D
Stand Weldment Replaced (23160 was 23038)
T.B.B. 1/19/16 1620
E
Pump 15240 Has Changed To Pump 16705 T.B.B. 12/14/16 1672
Cylinder 10448 Has Changed To Cylinder 16747
T.B.B. 1/16/17 1655
F
Cylinder 15928 Has Changed To 16750
Cylinder 10454 Has Changed To 16751
T.B.B. 2/3/17 1672
G
16845 REPLACED 16750 (Hyd. Cylinder) V.A.M. 8/11/17 1686
G
25695
DWG.
NO.

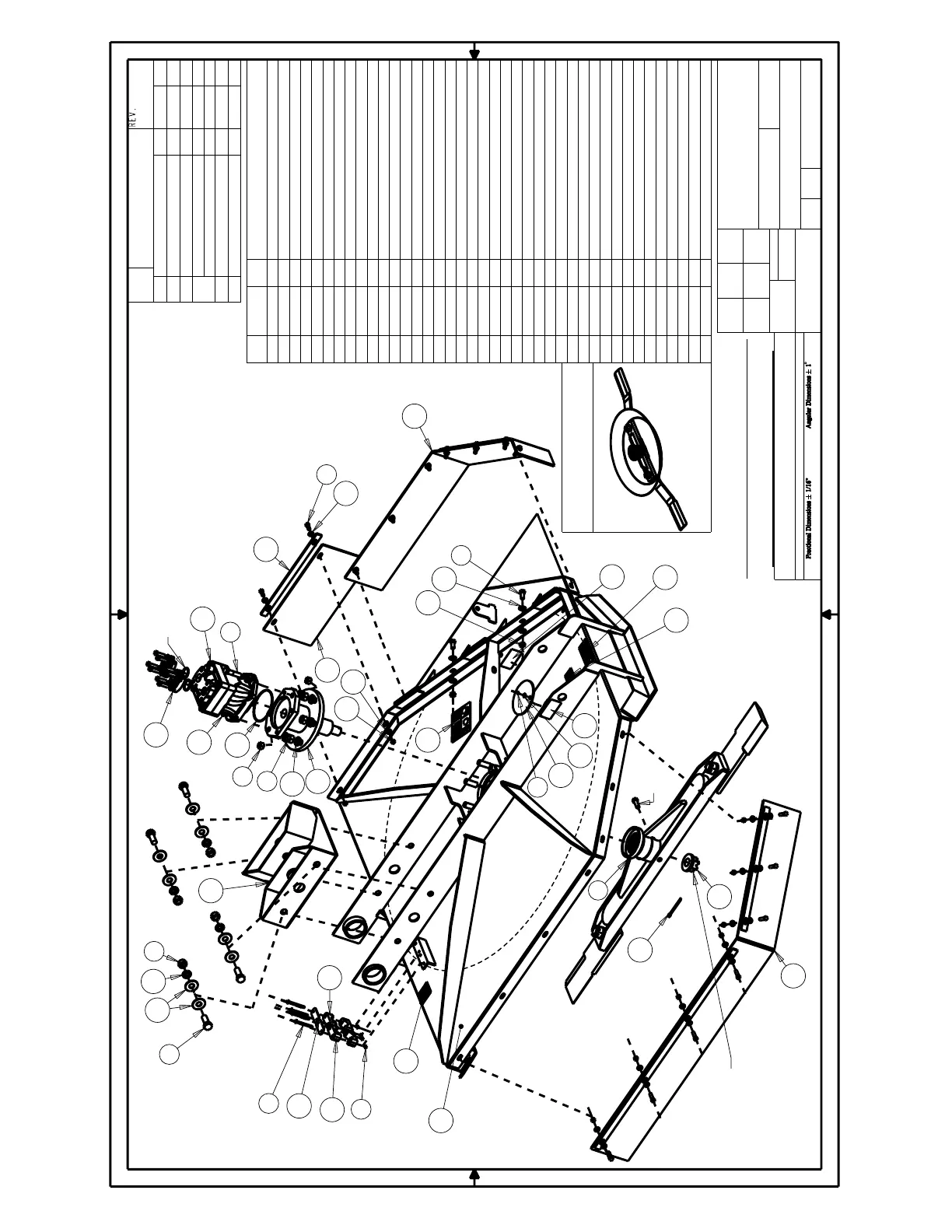

Belting, Hinge Gate &
Motor, Blade Holder
1
2
3
4
5
7
8
9
10
11
12
13
14
17
18
19
20
23
24
25
29
30
31
32
33
34
35
36
37
38
39
40
TORQUE TO
800 FT-LBS
14
9
17
10072
15
Replacement O-Ring
P/N: 16075
15
21
22
6
16
26
27
28
36
To Next Page
