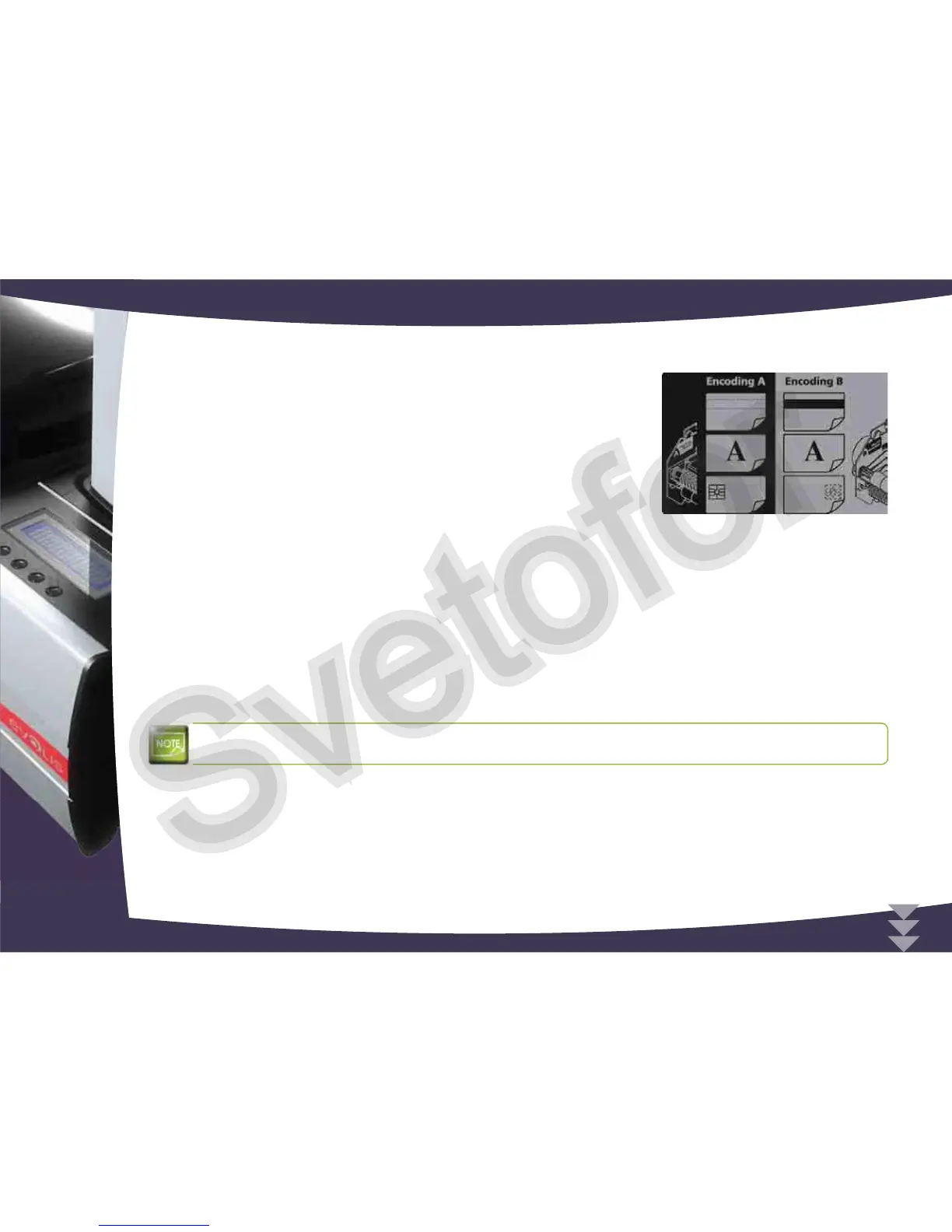

Card positioning
for the encoding module, in position A or in position B.
Position A = smartcard contact station in upper position = cards loaded with chip uppermost
Position B = smartcard contact station in lower position = cards loaded with chip downwards
Refer to section 1-3c for loading the cards.
³
Command sequence for positioning the smartcard
A sequence of commands must be sent via the printer’s interface to insert a card into the printer then position it under the station and
establish contact.
The command sequence is as follows:
Sending the SIS sequence:
O A card is moved from the feeder to the contact station, and stops underneath it.
O The card is pushed upwards to make contact with the station.
O The printer connects the contact station to the DB9 connector.
O The chip is programmed via the computer’s serial interface and the external coupler.
Refer to the Evolis printer Programming Guide for further details on programming smartcards.
Refer to the KU15 ‘Quantum Encoding Module’ manual for further details on connecting the smartcard encoder.
