Help
This section gives a number of suggestions allowing problems that may arise when using your printer to be pinpointed. If you do not
manage to solve your problem, this section also explains how to contact Evolis technical support.
4-1 Introduction to the printer menu

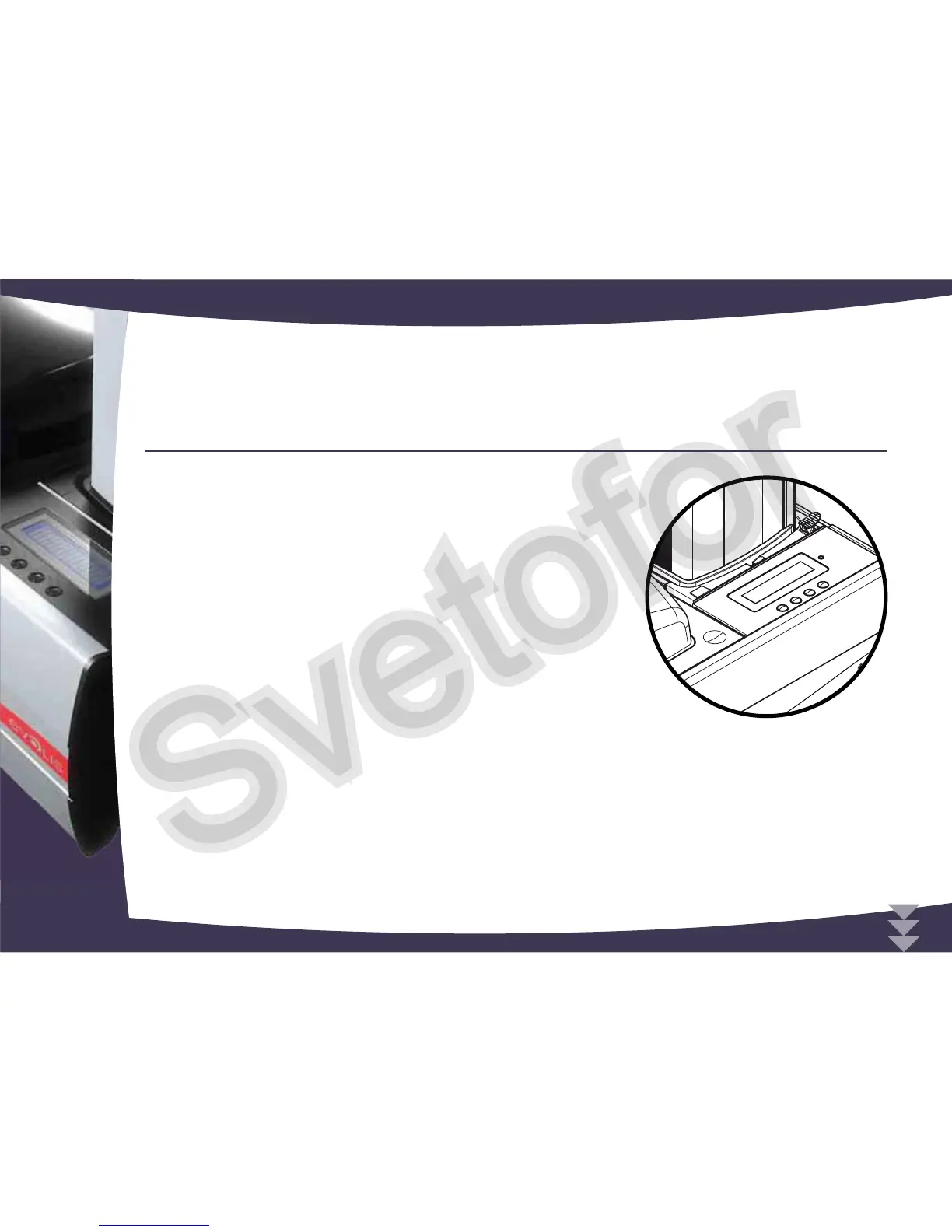

The Quantum printer has an LCD unit combined with an LED (light-emitting diode) enabling the operator to see the operating condition
of the equipment and make adjustments to the most common settings.
The control panel comprises 3 units:
O One LCD unit with 2 lines, each of 16 characters, back-lit for better readability.
O
O 1 Dual-colour LED: green for running normally, red in the event of a warning requiring the
operator’s attention
When idle, after a short phase when the printer is turned on, the control panel shows the
following status:
Line 1 = printing module status = READY
Line 2 = encoding module status = READY A or READY B (the letter A or B corresponding to
the encoding module position)
When running, the information shown varies:
O Upper line - Printing module status
O Lower line - Encoding module status
O Steady green LED - Pending
O Flashing green LED - Data transfer with the PC or printing in progress
O
4
35
