When the ripping width is greater than 300mm, and with care,
both hands can be used to guide/feed the material through the
saw. The operators left hand will be to the LH side of the saw
blade. The operators right hand will be close to the rip fence on
the RH side of the saw blade. Hands should never be in line with
the blade.
7. Bevel ripping
When bevel ripping material 150mm or narrower use the rip
fence on the RH side of the blade only. See Fig 32.
MAINTENANCE
WARNING: Ensure that the machine is disconnected
from the mains supply before any maintenance tasks
or adjustments are attempted.
Changing the Blade
Note: We recommend that the operator considers
wearing protective gloves when handling or changing
the machines blade.
1. Disconnect the machine from the power supply.
2. Remove the blade guard. (see Assembly 7).
3. Remove the table access plate by removing the two
countersunk head screws from either end of the access plate.
Lift the plate away and carefully store it and its fixing screws for
future use. See Fig 33.
4. Raise the blade to its highest position.
5. Use the two blade changing tools provided. One to hold the
motor arbor, and the other to loosen the arbor nut. See Fig 34.
6. Remove the nut, outer flange and blade.
7. Fit the new blade. Ensure that the teeth are facing to the front
of the saw, and that the arrow on the blade is in line with the
motor direction.
8. Replace the outer flange and nut and tighten securely with
the spanners provided. Check that both blade flanges are in
contact with the blade.
9. Replace the table access plate and its fixing screws. Ensure
that the fixing screws are correctly seated.
10. Replace the blade guard.

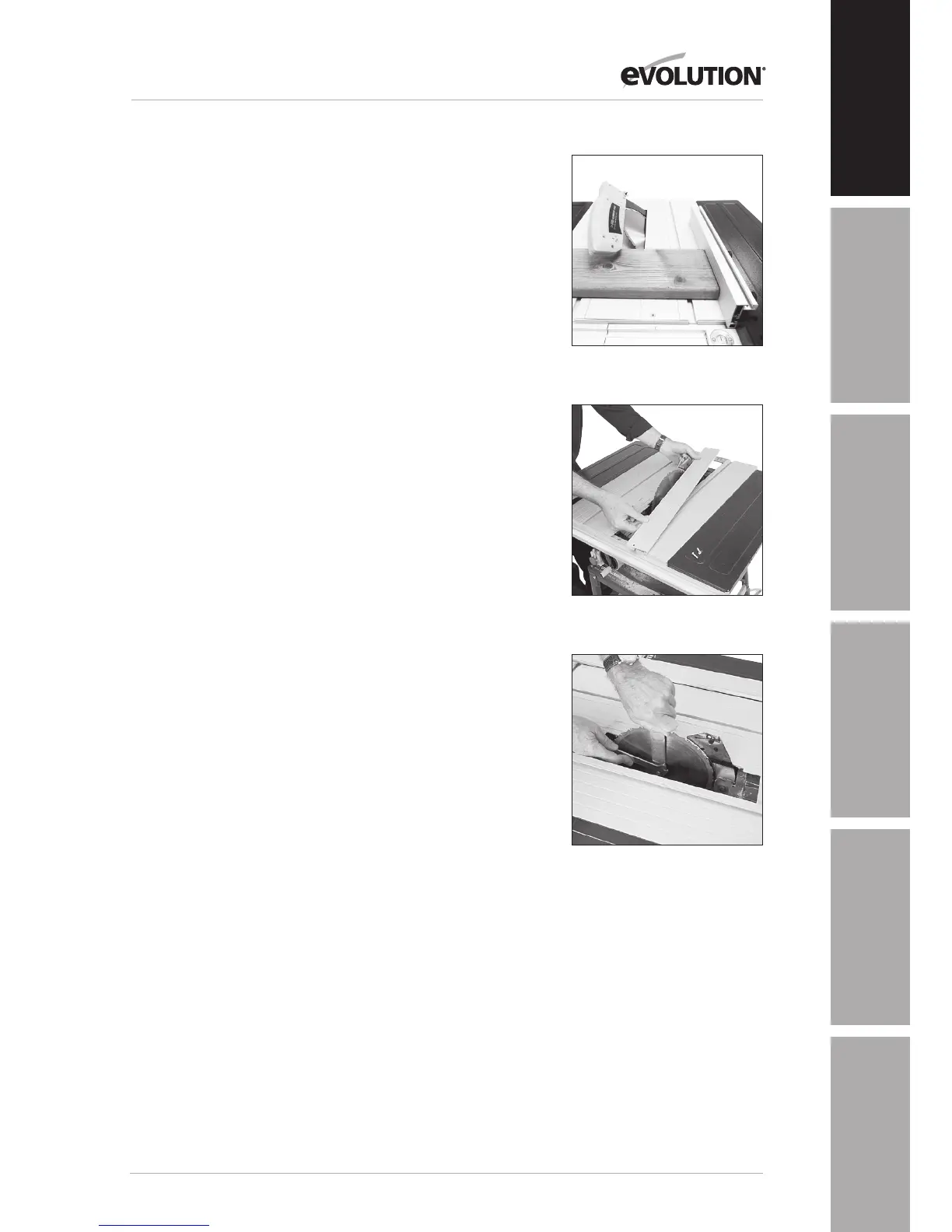

Fig 32
Fig 33
Fig 34
