Evolution FURY5 User Manual

14
www.evolutionpowertools.com

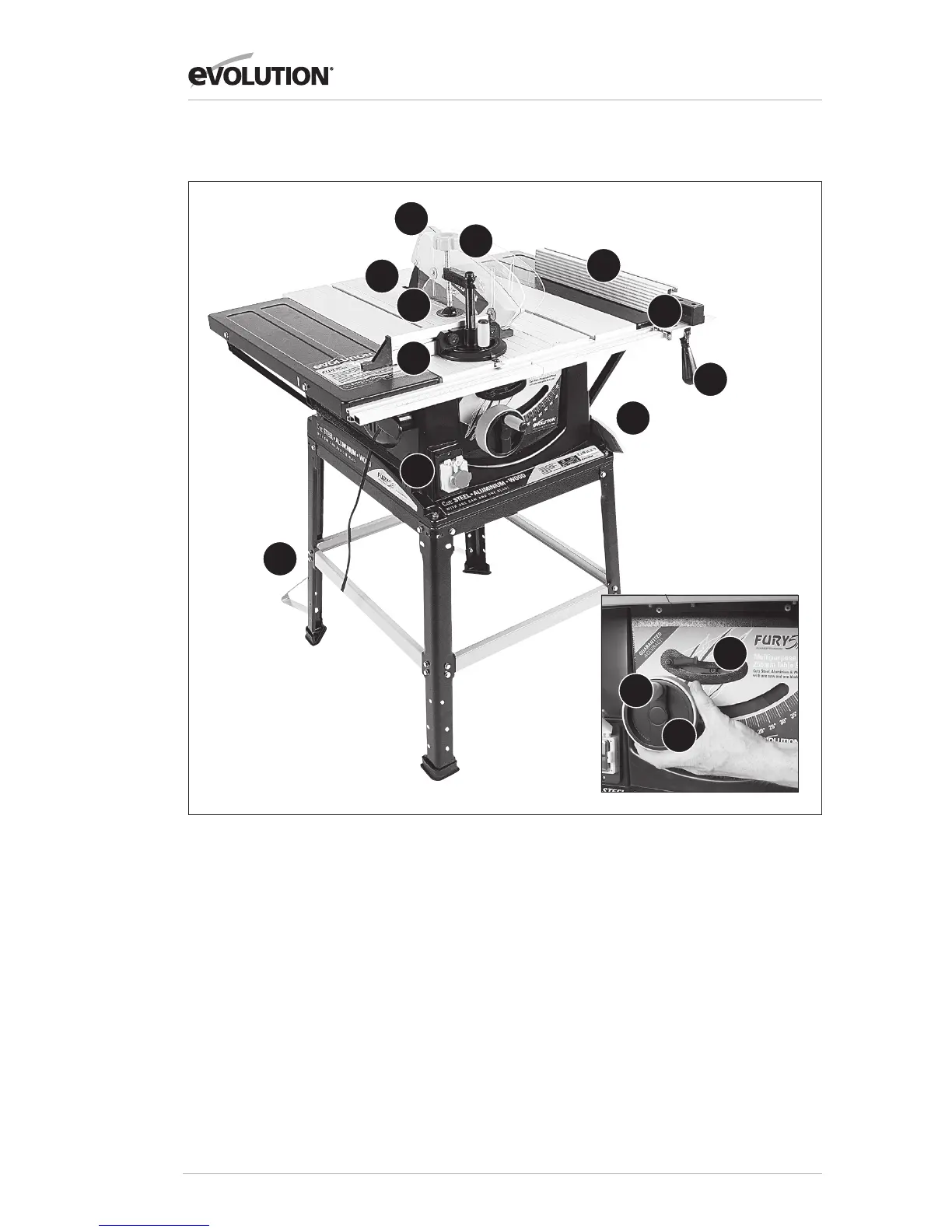

MACHINE OVERVIEW
1. ON/OFF SWITCH
2. BLADE
3. RIVING KNIFE
4. BLADE GUARD
5. RIP FENCE
6. RIP FENCE LOCKING HANDLE
7. RIP FENCE SCALE MAGNIFIER
8. SLIDING MITRE FENCE
9. ANTI-BOUNCE DEVICE
10. RISE & FALL ADJUSTMENT HANDLE
11. BEVEL LOCKING LEVER
12. BEVEL ADJUSTMENT WHEEL
13. PUSH STICK
14. REAR CANTILEVER
BRACES ASSEMBLY
14
13
12
11
10
9
8
7
6
5
4
3
2
1

Evolution FURY5 Specifications

General

Blade Diameter	255 mm
Motor Power	1500 W
Bevel Capacity	45°
Bore	25.4 mm
Mild Steel Plate Thickness (Max.)	6 mm
Motor (230V~50 Hz)	1500 W
Voltage	230 V
Frequency	50 Hz
