EVS XT Series Technical Reference

XT Series DISK RECORDER - Technical Reference
EVS Broadcast Equipment SA - Nov 2005
Issue 3.0
14

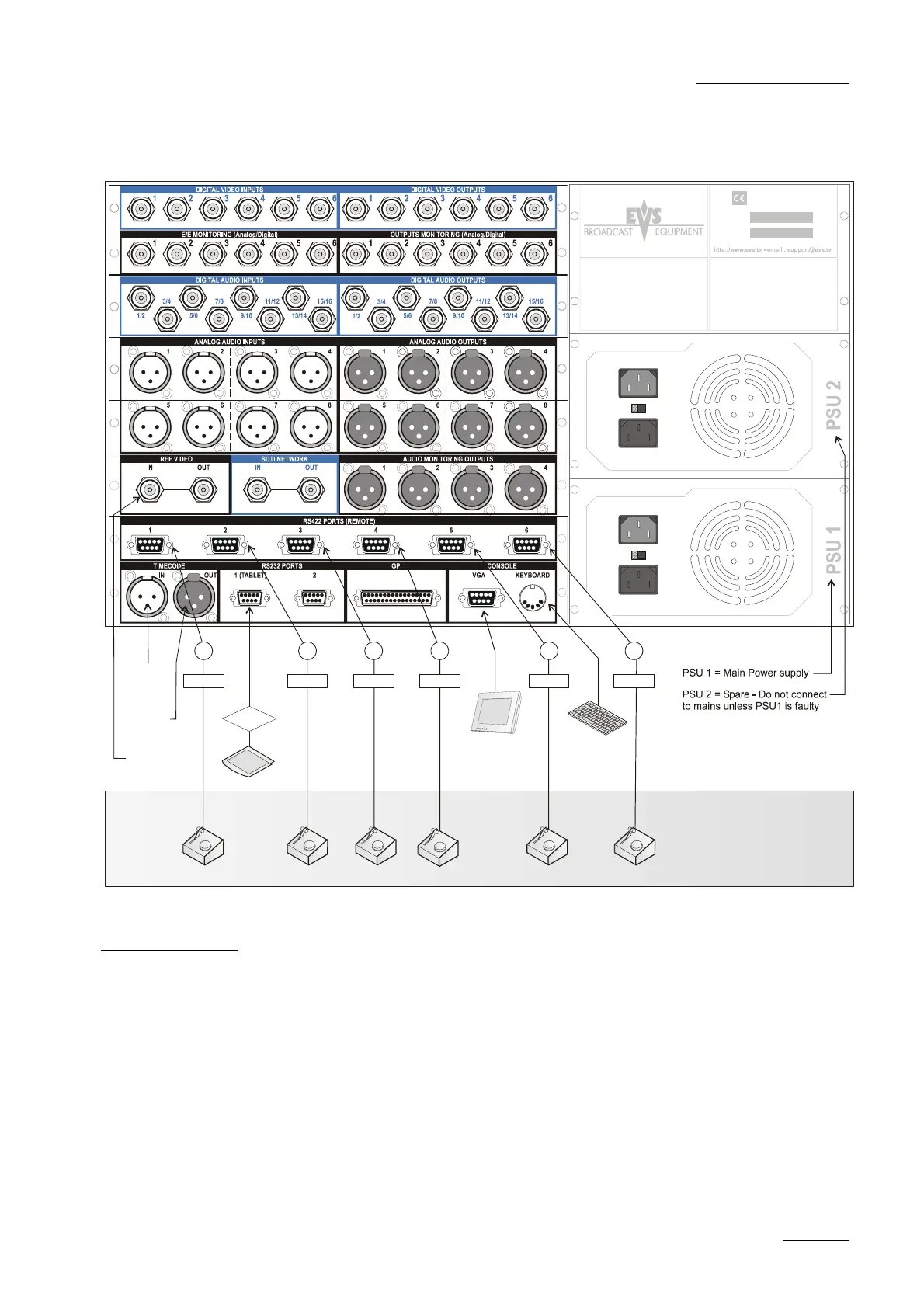

3.2 XT 6U Back Plane, Slave mode
PN:
SN:
MADE IN E.U.
LTC
Timecode
reference
RS 422
RS 232
RS 422 RS 422
1 2 3
Tablet
Controler #1
Data Screen
(VGA or B&W video
using adapter)
Select one of the following
RS422 protocols for each port :
- Sony BVW75
- XtenDD35
- Louth VDCP
- EVS AVSP
Analog
Genlock
Reference
RS 422
4
RS 422
5
RS 422
6
LTC OUT
PGM 1
Keyboard
Controler #2 Controler #3 Controler #4 Controler #5 Controler #6
Important : Genlock loop must be terminated if not used.
Note for HD systems
: the cabling instructions and diagrams are similar for SD and HD systems. The only difference is
that HD and HD/SD compatible systems are limited to max. 4 SDI/HD-SDI inputs and 4 SDI/HD-SDI outputs.
