EVS XT Series - HDGL Board

XT Series DISK RECORDER - Technical Reference
EVS Broadcast Equipment SA - Nov 2005
Issue 3.0
33
4.2.3 HDGL BOARD

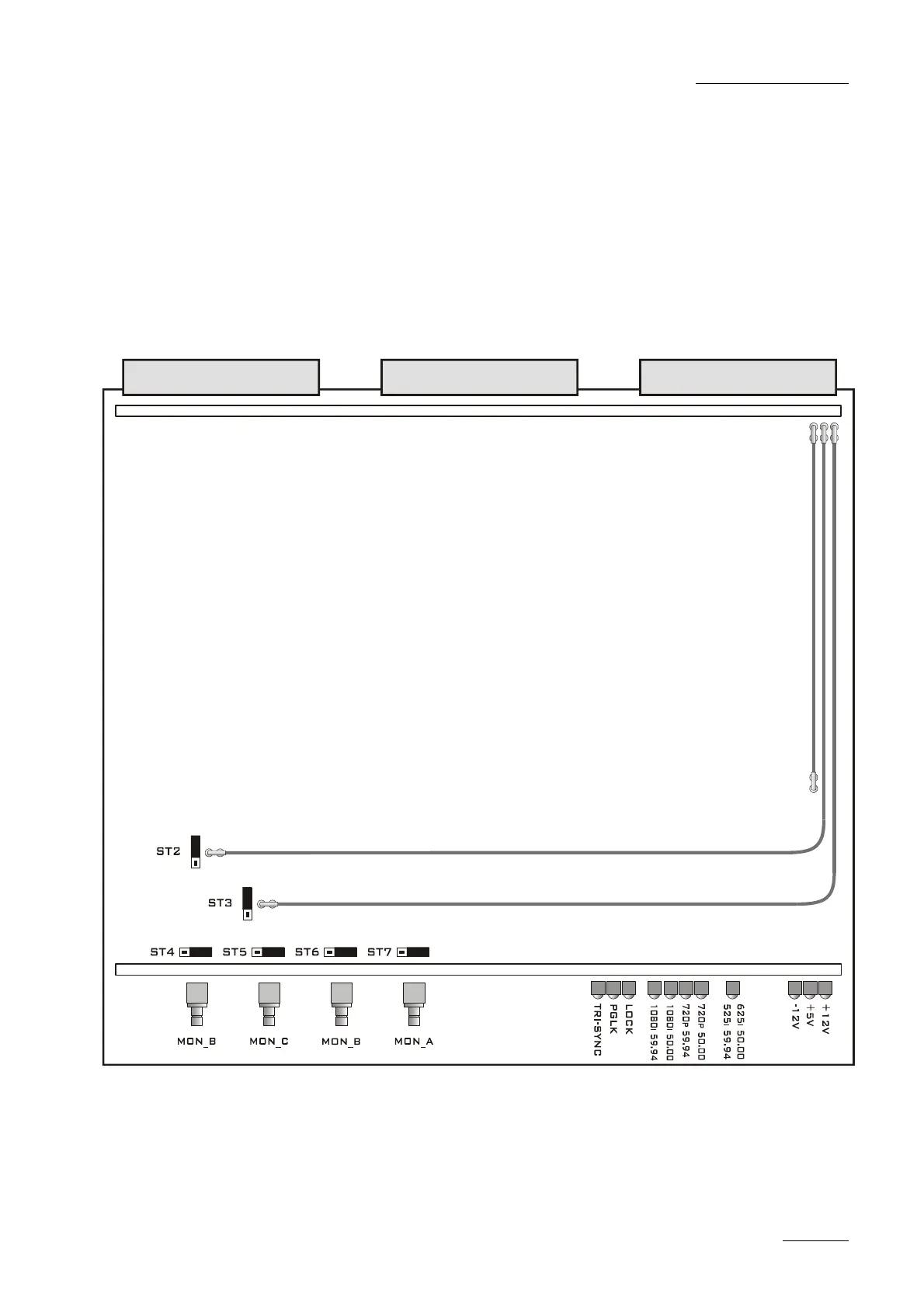

The HDGL board manages the video reference and the monitoring outputs
of the HD XT.
The HD output signals are down-converted to standard definition for
monitoring and/or HD/SD simulcasting and are SDI/CVBS switchable.
Two types of Genlock Reference are available: SD BlackBurst and HD Tri-
level sync (software configureable, refer to EVS Menu section of this
manual).
