4.0 Structure and function

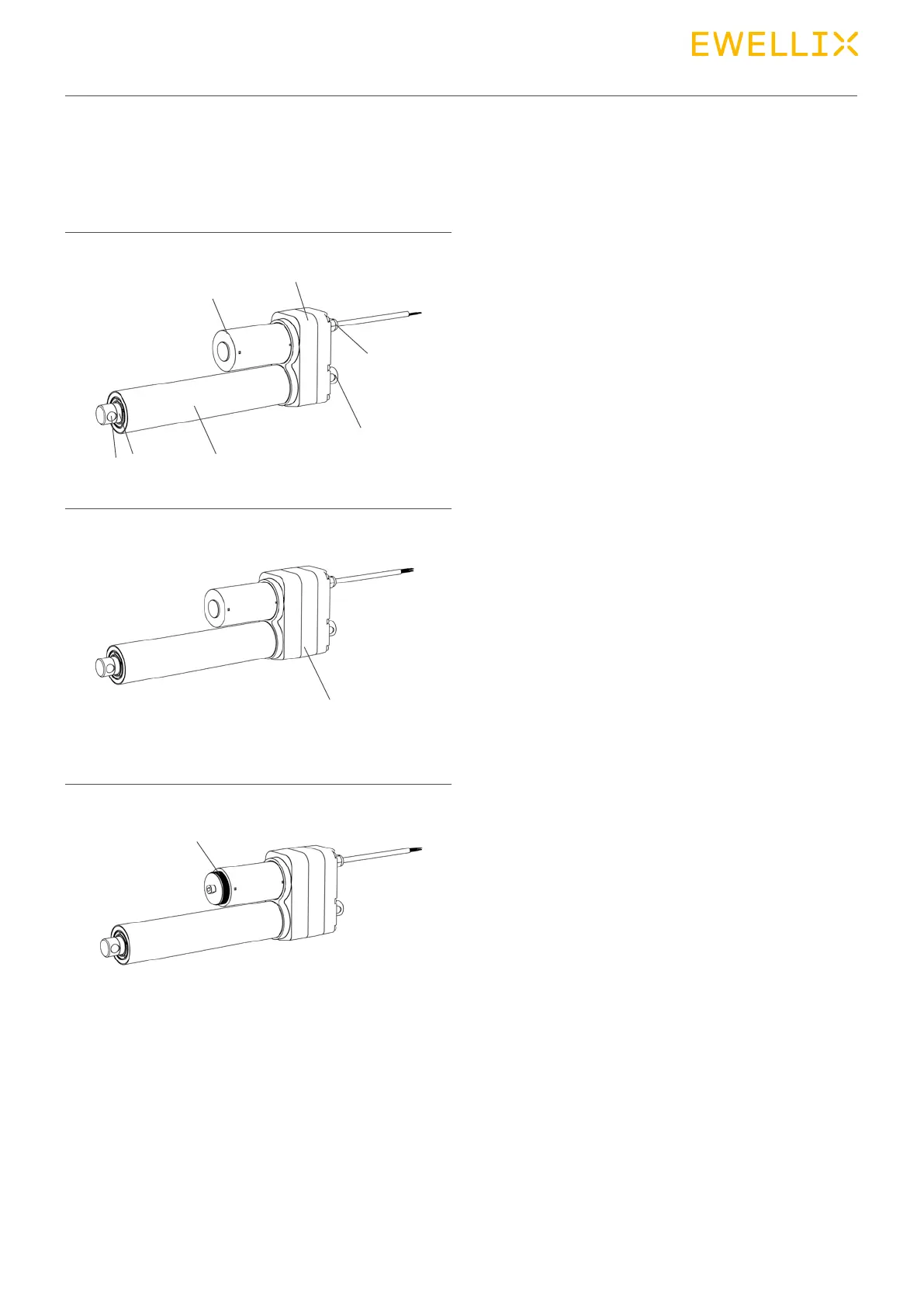

Fig. 6

CAHB-21 E and 22 E without position feedback

1. Front hinge head

2. Push tube

3. Guiding tube (Al alloy tube)

4. Motor

5. Cable

6. Rear hinge head

7. Gearbox

Fig. 7

CAHB-21 E and 22 E

Include 3 types outline.

CAHB-21 E and 22 E with position feedback

8. Middle housing

Fig. 8

CAHB-21 E and 22 E with manual override

(Manual override option can be congured on all

series)

9. Manual override part
