CAHB-20 series

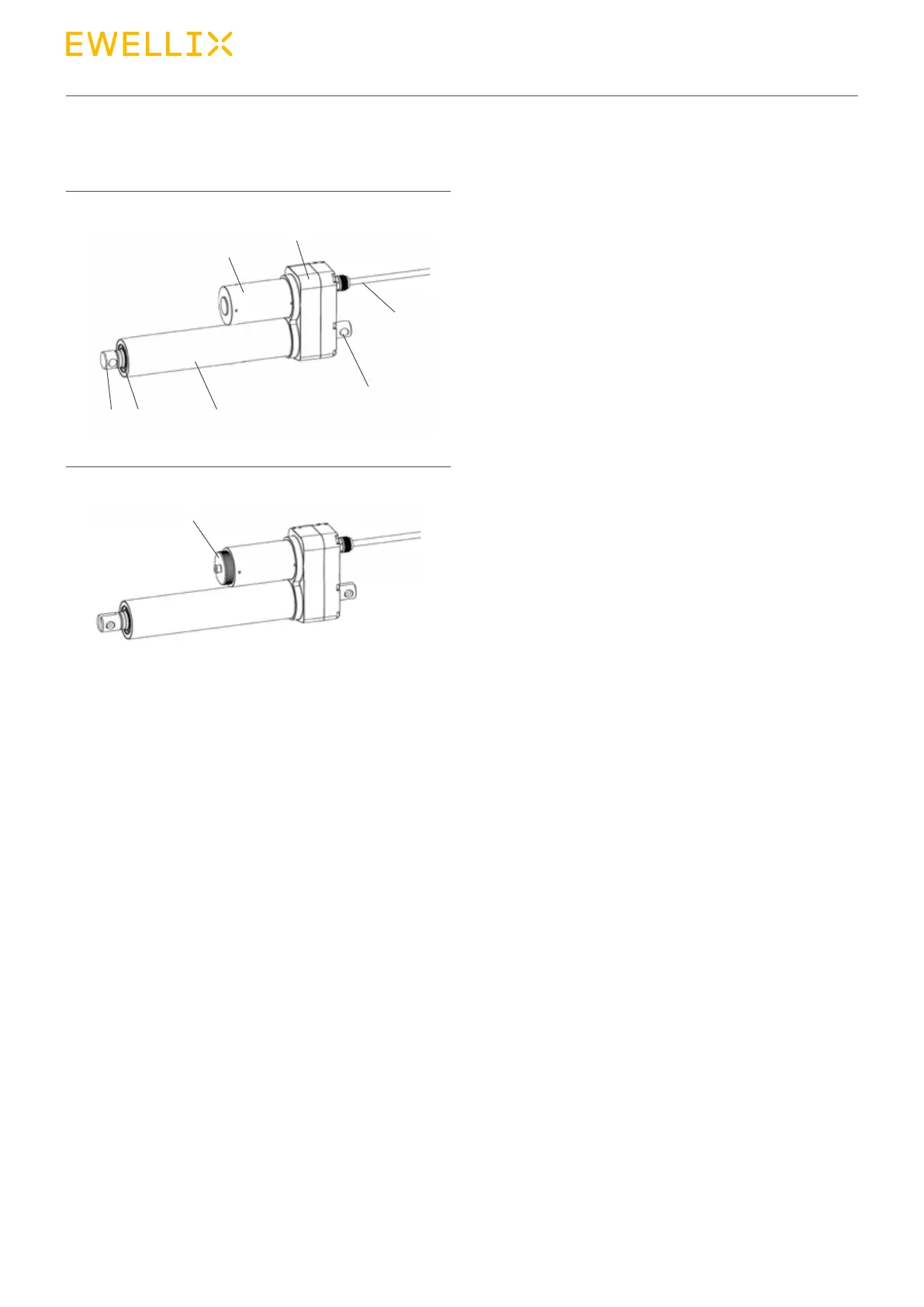

Fig. 9
CAHB-2x S without manual override
1. Front hinge head
2. Push tube
3. Guiding tube (Al alloy tube)
4. Motor
5. Cable
6. Rear hinge head
7. Gearbox
Fig. 10
CAHB-2x S with manual override
8. Manual override part
4
7
1 2
3
6
5
8
CAHB-2xS
Include 2 types outline.
