EWM microplasma 20 - Rear View

Machine description – quick overview
Rear view
099-007010-EW501
07.09.2016
17
3.2 Rear view

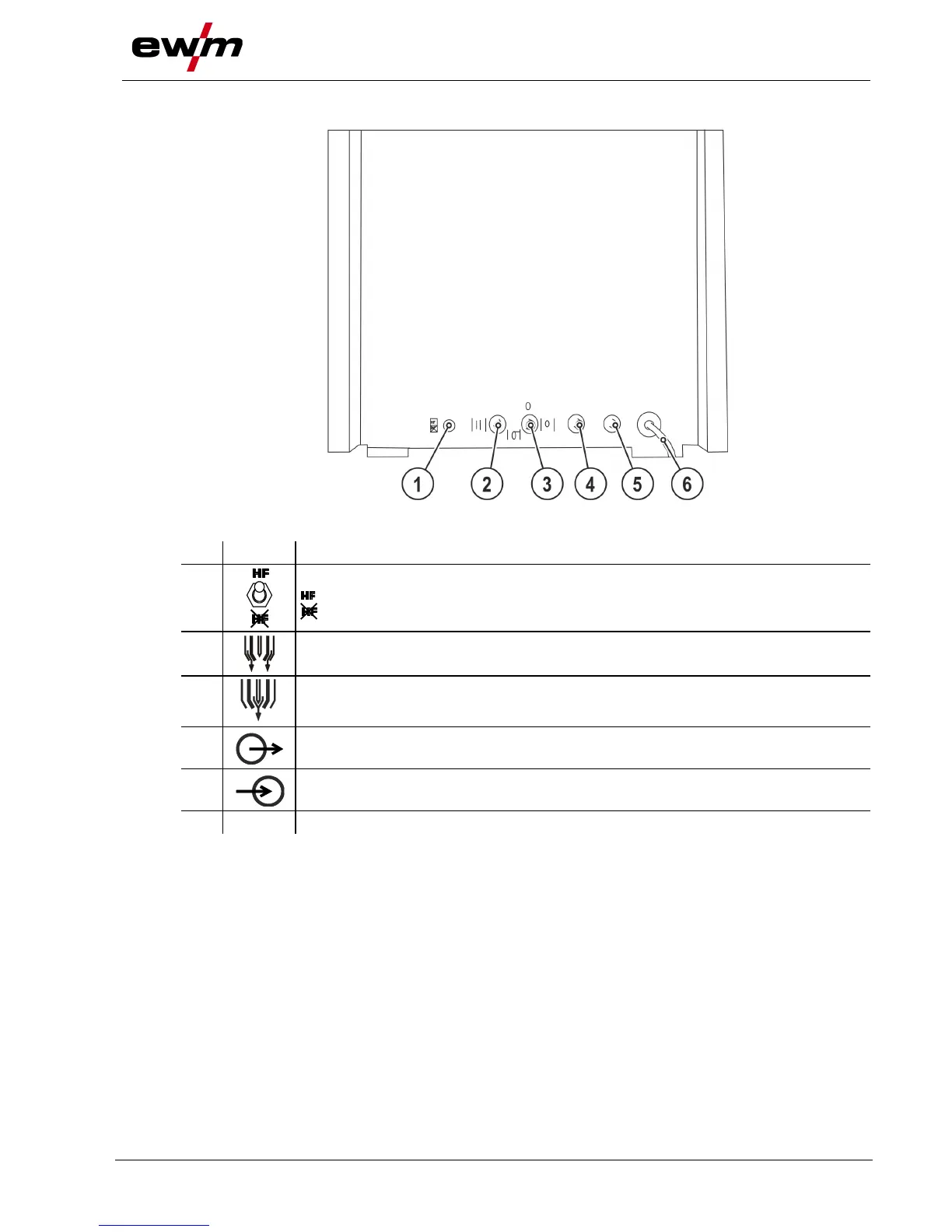

Figure 3-3
Item
Symbol
Description 0
1
Ignition type changeover switch
= HF ignition
= Liftarc (contact ignition)
2
G1/4" connecting nipple, shielding gas connection
Connection to the pressure reducer
3
G1/4" connecting nipple, plasma gas connection
Connection to the pressure reducer
4
Quick connect coupling (red)
coolant return
5
Quick connect coupling (blue)
coolant supply
6
Mains connection cable > see 4.1.6 chapter
