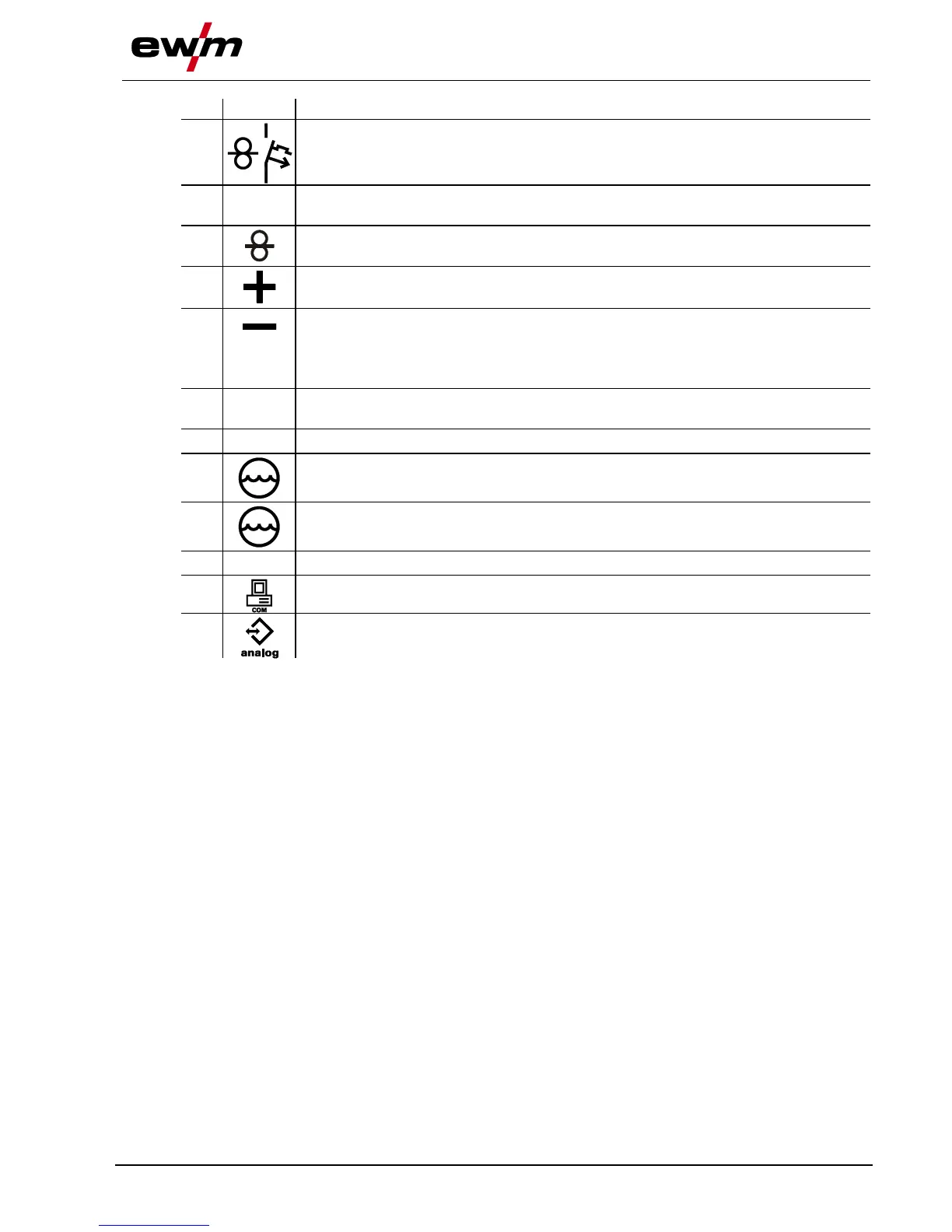

Machine description – quick overview
Rear view
099-005320-EW501
22.05.2014
19
Item
Symbol
Description 0
1
Key button, Automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
2
Connection socket, 7-pole
Connection for peripheral devices with digital interface
3
7-pole connection socket (digital)
Wire feed unit connection
4
Connection socket, “+” welding current
• Standard MIG/MAG welding (intermediate hose package)
5
Connection socket, “-” welding current
Connection for welding current plug from intermediate hose package
• MIG/MAG flux cored wire welding
• TIG welding
6
Stirrup
Intermediate hose package strain relief
7
Cooling air outlet
8
8-pole connection socket
Cooling unit control lead
9
4-pole connection socket
Cooling unit voltage supply
10
Mains connection cable
11
PC interface, serial (D-Sub connection socket, 9-pole)
12
19-pole mechanised welding interface (analogue)
(See chapter entitled "Design and function > interfaces".)
