5.14 Welding torch holder
NOTE
The item described in the following is part of the machine´s scope of delivery.

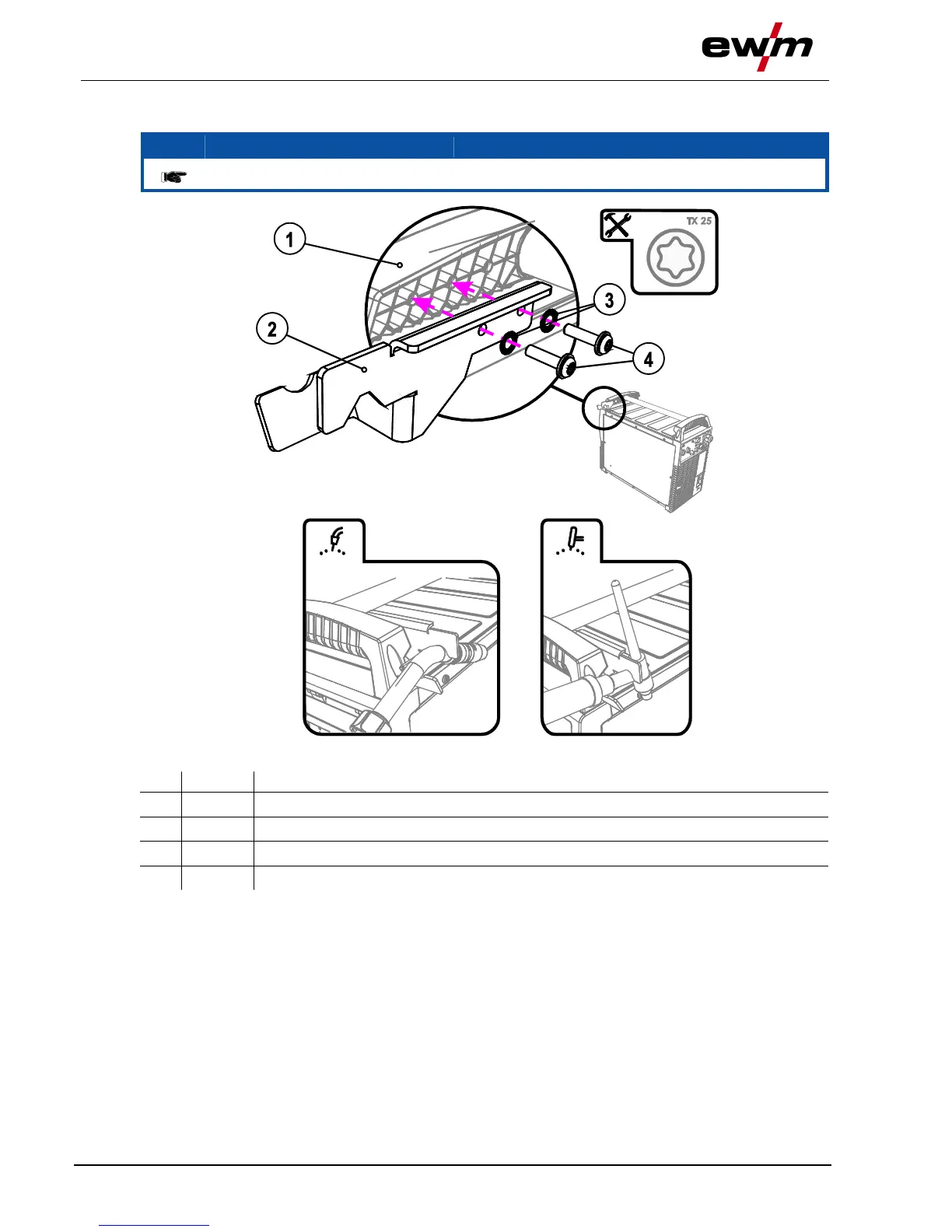

Figure 5-13
Item
Symbol
Description 0
1
Crossmember of the transport handle
2
Torch holder
3
Fan-type lock washers
4
Fixing screws (x 4)
• Use the mounting screws to screw the torch holder onto the crossmember of the transport handle.
• Insert the welding torch into the welding torch holder as shown.
