EWM Phoenix 405 Progress puls TDM - Intermediate Hose Package Connection

Design and function
Connecting the intermediate hose package to the power source
099-005320-EW501
22.05.2014
27
5.8.2 Intermediate hose package connection
NOTE
Note the polarity of the welding current!
Some wire electrodes (e.g. self-shielding cored wire) are welded using negative polarity.
In this case, the welding current lead should be connected to the "-" welding current
socket, and the workpiece lead should be connected to the "+" welding current socket.
• Observe the information from the electrode manufacturer!

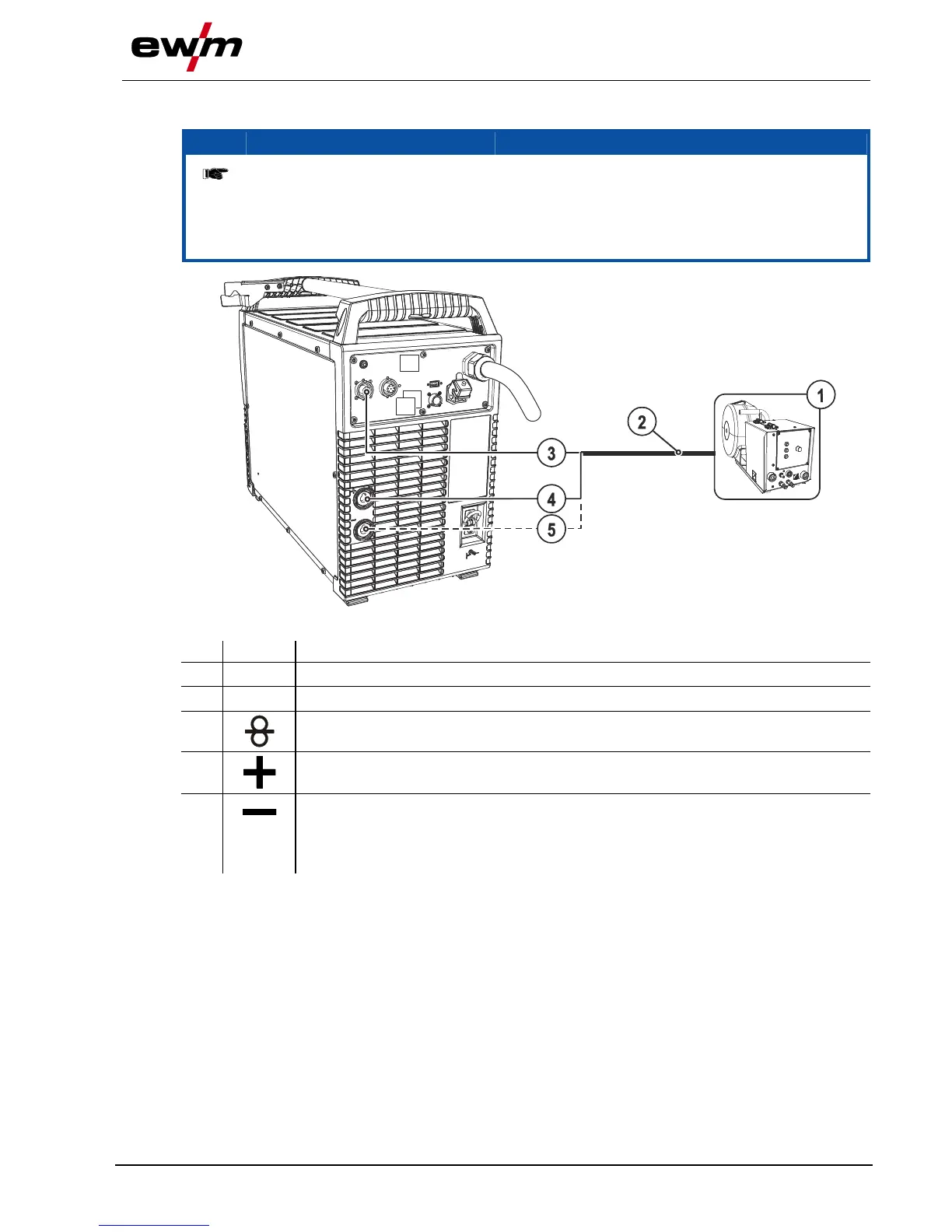

Figure 5-7
Item
Symbol
Description 0
1
Wire feed unit
2
Intermediate hose package
3
7-pole connection socket (digital)
Wire feed unit connection
4
Connection socket, “+” welding current
• Standard MIG/MAG welding (intermediate hose package)
5
Connection socket, “-” welding current
Connection for welding current plug from intermediate hose package
• MIG/MAG flux cored wire welding
• TIG welding
• Insert the end of the hose package through the strain relief of the hose package and lock by turning to
the right.
• Insert the plug of the welding current lead into the welding current connection socket and lock in place
by turning to the right.
• Insert cable plug on the control lead into the 7-pole connection socket and secure with crown nut (the
plug can only be inserted into the connection socket in one position).
