5.12 TIG welding
5.12.1 Welding torch connection
NOTE
The welding torch is connected to the wire feeder.
Observe the operating instructions for the wire feeder (system component)!
5.12.2 Connection for workpiece lead

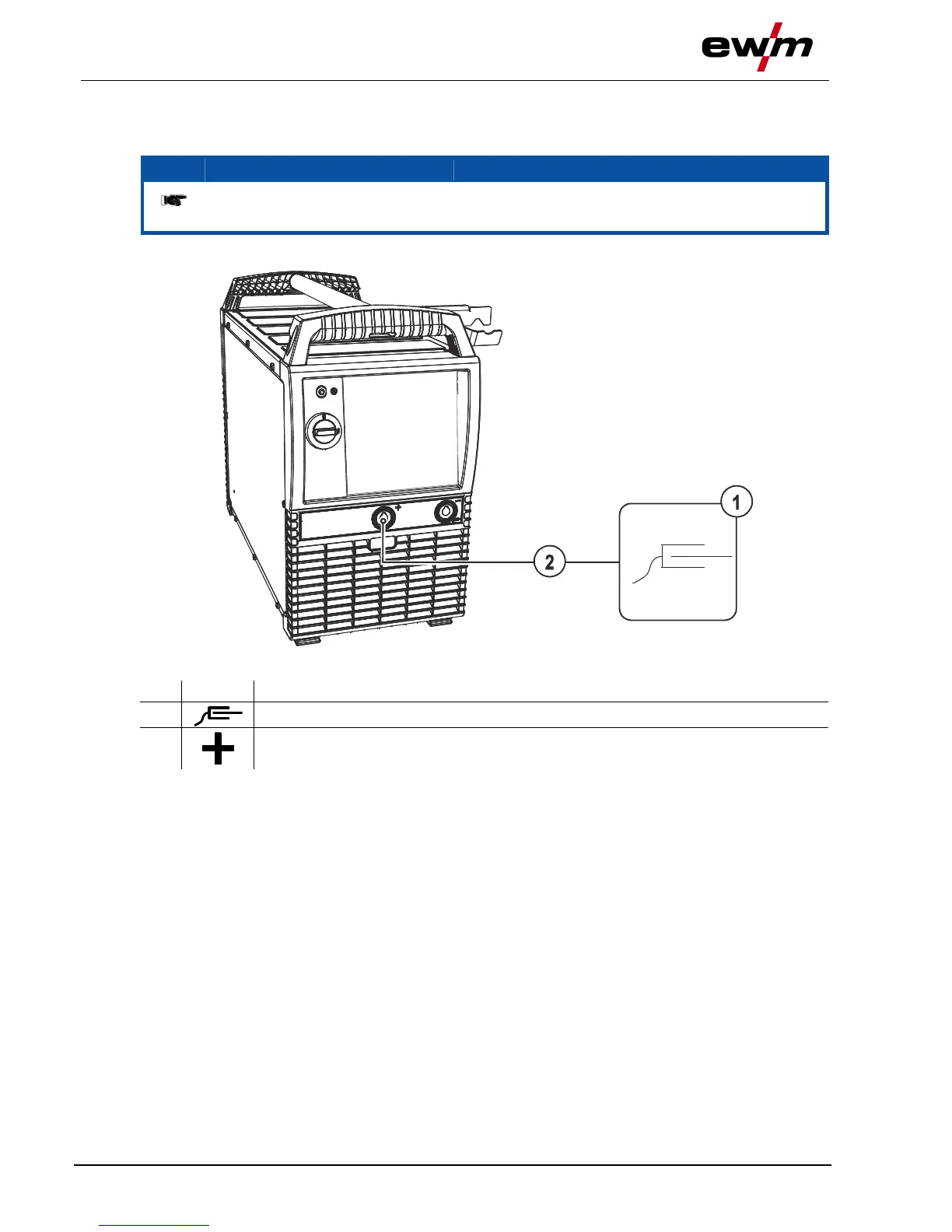

Figure 5-11
Item
Symbol
Description 0
1
Workpiece
2
Connection socket, "+" welding current
• TIG welding:
Workpiece connection
• Insert the plug on the welding current lead into the welding current connection socket "+" and lock.
