Machine description – quick overview
Front view
099-005221-EW501
16.04.2014
17

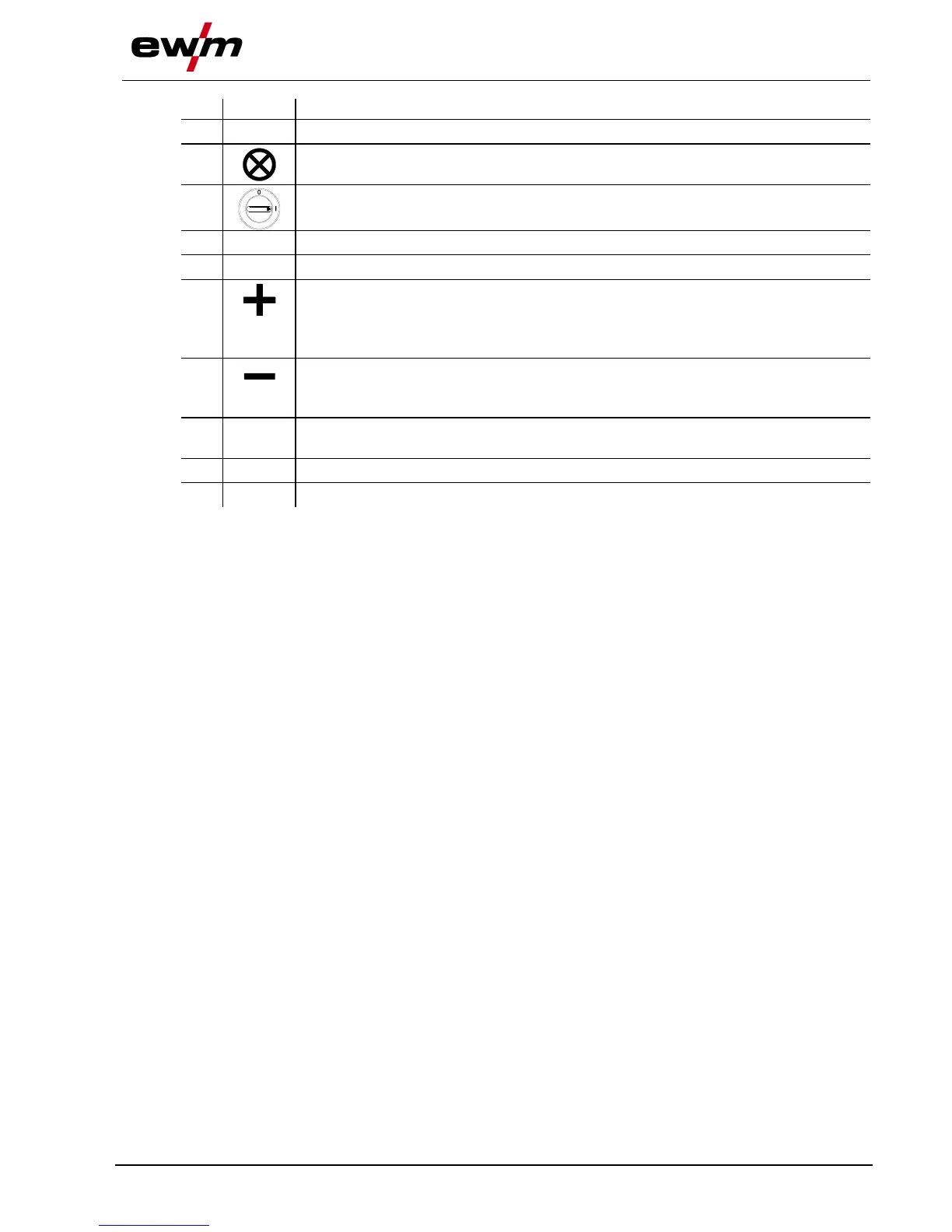

Item
Symbol
Description 0
1
Carrying handle
2
Ready for operation signal light
Signal light on when the machine is switched on and ready for operation
3
Main switch, machine on/off
4
Cooling air inlet
5
Machine feet
6
Connection socket, “+” welding current
• MIG/MAG welding: welding current connection for the welding torch
• MIG/MAG cored wire welding: workpiece connection
• MMA welding: workpiece connection
7
"-" welding current connection socket
• MIG/MAG welding: Workpiece connection
• MMA welding: electrode holder connection
8
Machine control
See Machine control – operating elements chapter
9
Protective cap (see Sect. "Protective cap")
10
Torch holder
