5.11.3 MIG/MAG functional sequences / operating modes

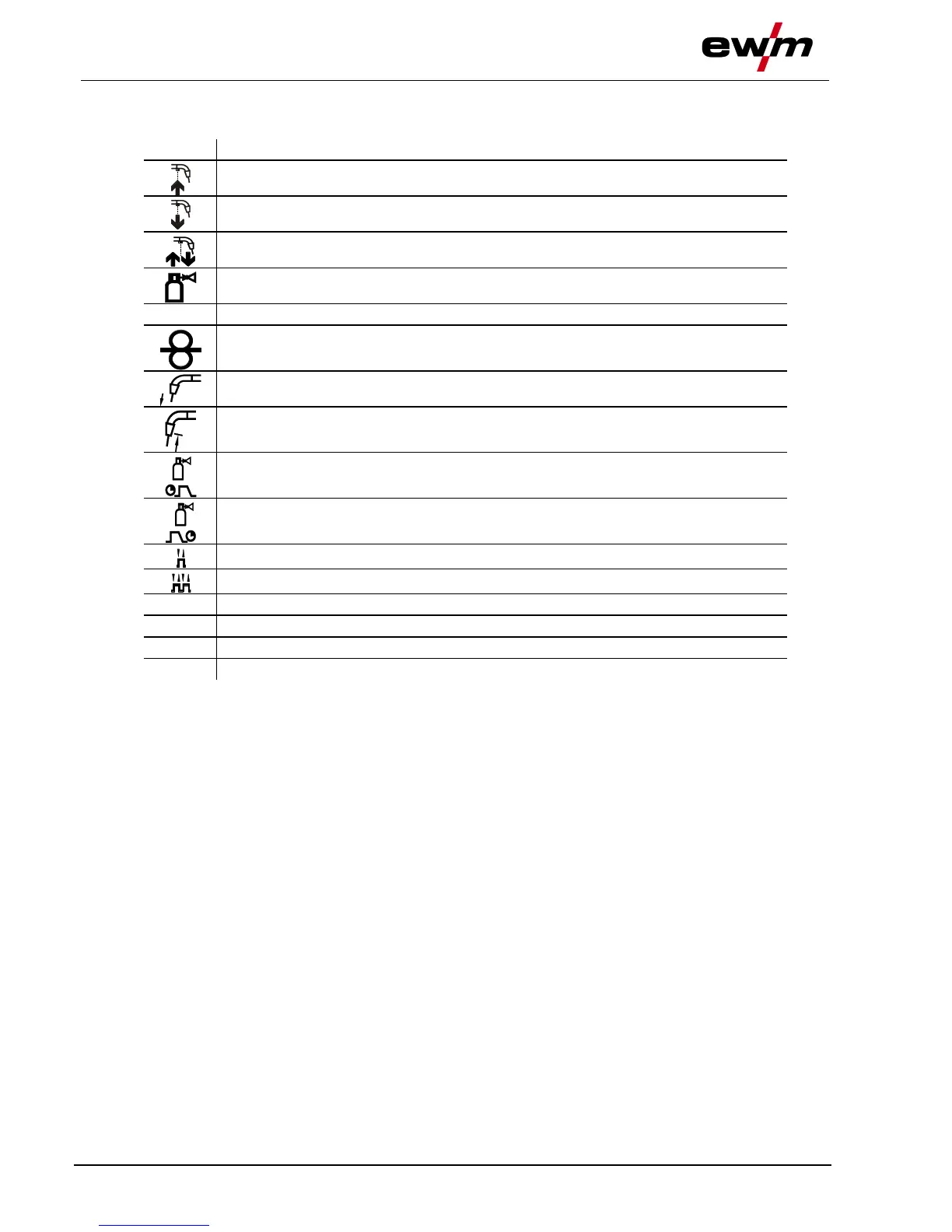

5.11.3.1 Explanation of signs and functions
Symbol
Meaning
Press torch trigger
Release torch trigger
Tap torch trigger (press briefly and release)
Shielding gas flowing
I
Welding output
Wire electrode is being conveyed
Wire creep
Wire burn-back
Gas pre-flows
Gas post-flows
Non-latched
Latched
t
Time
PSTART
Ignition program
PA
Main program
PEND
End program
