5.13 Air arc gouging
5.13.1 Connection
NOTE
Please note the relevant documentation of the accessory components.
Special electrode holders and carbon electrodes are required for air arc gouging.

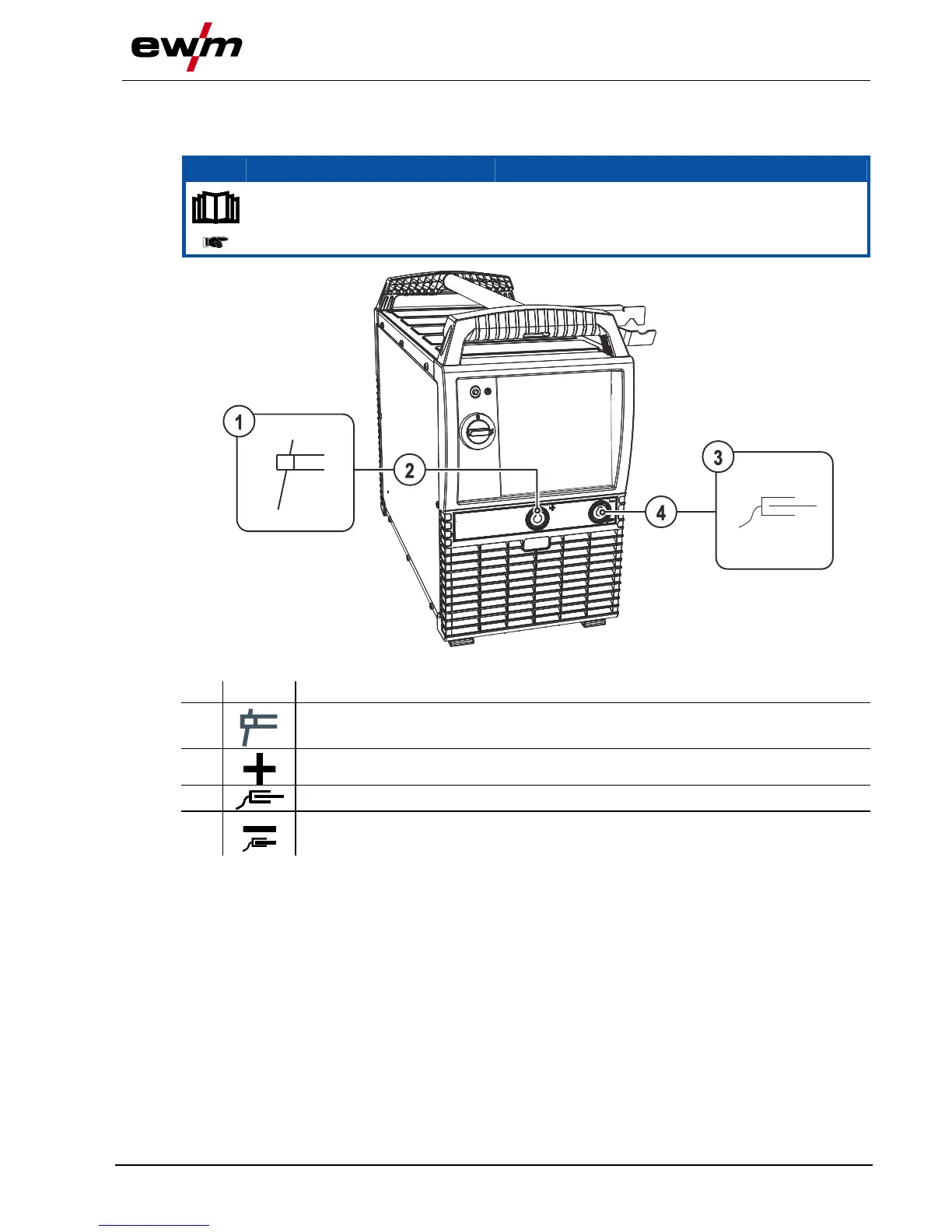

Figure 5-21
Item
Symbol
Description 0
1
Gouging torch
2
Connection socket, “+” welding current
3
Workpiece
4
Connection socket, “-” welding current
• Insert the gouging torch cable plug into the "+" welding current connection socket and lock in place by
turning to the right.
• Insert cable plug on the workpiece lead into the "-" welding current socket and lock by turning to the
right.
