Machine description – quick overview
Rear view
099-005221-EW501
16.04.2014
19

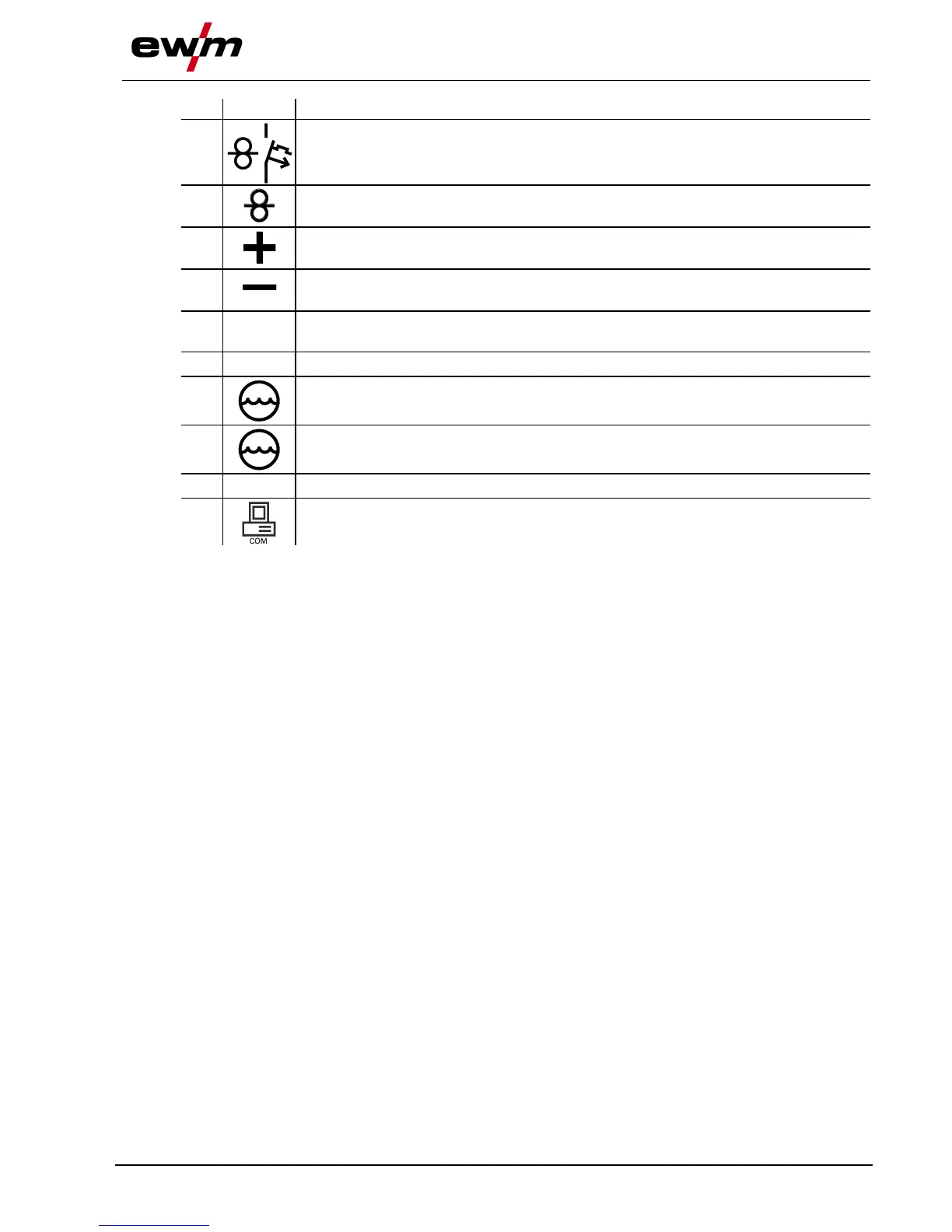

Item
Symbol
Description 0
1
Key button, Automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
2
19-pole connection socket (analogue)
Wire feed unit control lead connection
3
Connection socket, “+” welding current
• Standard MIG/MAG welding (intermediate hose package)
4
Connection socket, “-” welding current
• MIG/MAG cored wire welding:
Welding current to wire feed/torch
5
Stirrup
Intermediate hose package strain relief
6
Cooling air outlet
7
8-pole connection socket
Cooling unit control lead
8
4-pole connection socket
Cooling unit voltage supply
9
Mains connection cable
10
D-sub connection socket, 9-pole
With this machine series for maintenance purposes only (specialist staff)
