Machine description – quick overview
Machine control – Operating elements
099-005221-EW501
16.04.2014
21

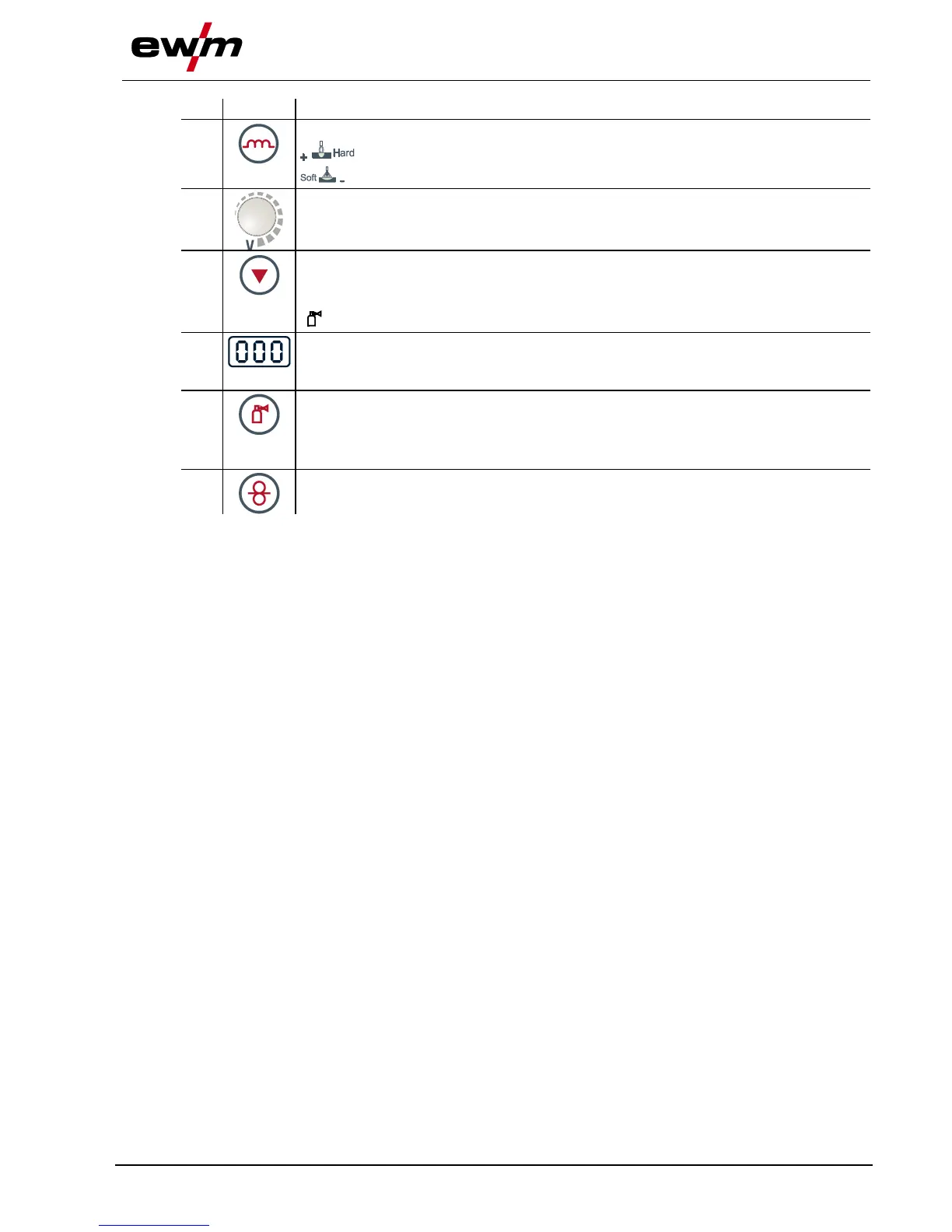

Item
Symbol
Description 0
7
Push-button, throttling effect (arc dynamics)
Arc is harder and more narrow
Arc is softer and wider
8
Rotary dial, arc length
No function.
Setting is made on the wire feed unit.
9
Button, Parameter selection (right)
VOLT Welding voltage
kW Welding performance display
Gas flow quantity (optional)
10
Display, right
Welding voltage, welding performance, motor current (wire feed mechanism) during
wire inching, shielding gas flow rate (option)
11
Gas test / rinse button
• Gas test: For setting the shielding gas quantity
• Rinse: For rinsing longer hose packages
See also "Shielding Gas Supply" chapter
12
Push-button, wire inching/motor current (wire feed mechanism)
Cf. chapter "Inching the wire electrode".
