Appendix A - Pin-outs & connections
Appendix A - Pin-outs & connections

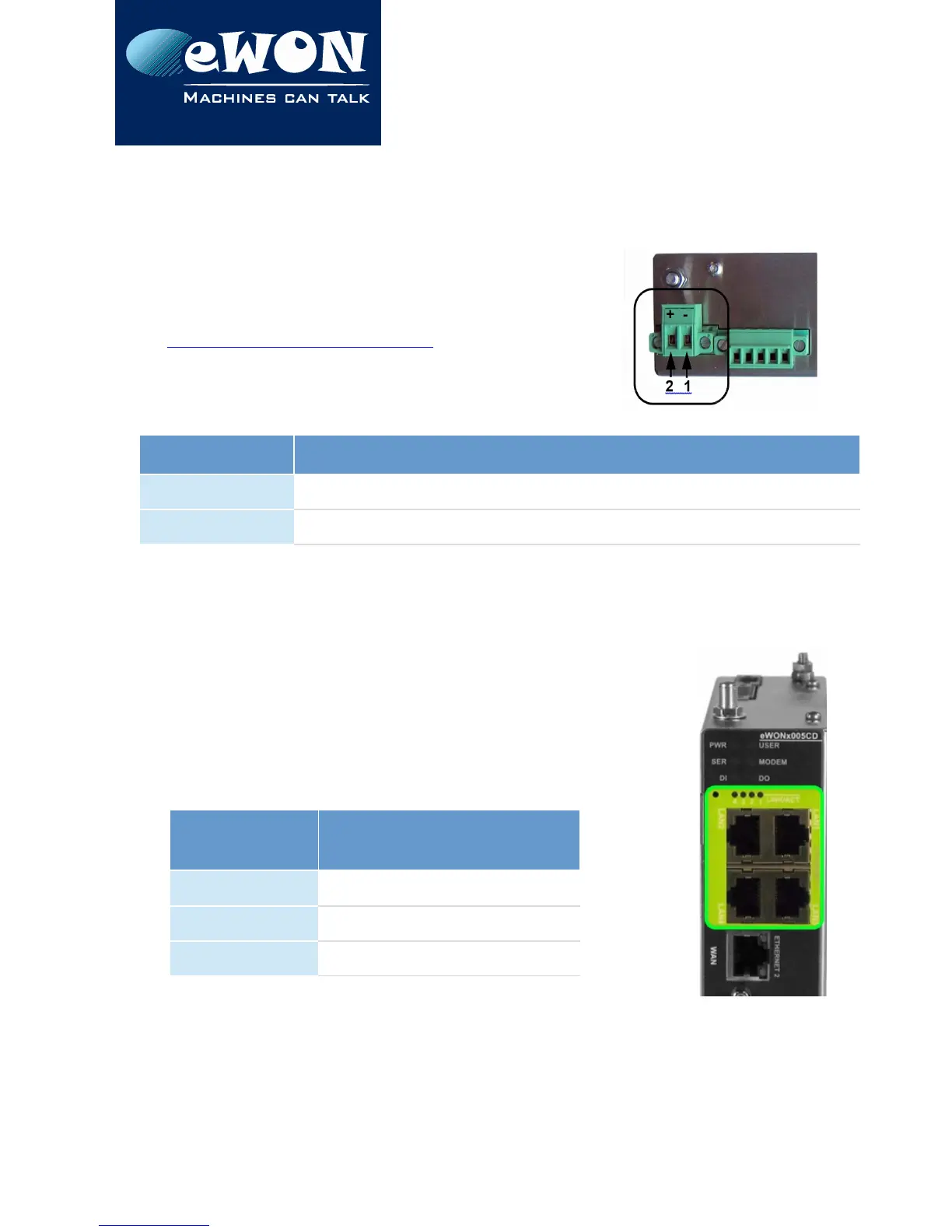

A.1 - Power Supply
Manufacturer :
Phoenix Contact GmbH,
http://www.phoenixcontact.com
Part Number: GMSTB 2,5/2-STF-5.08
PIN Description
1 Ground
2
Positive (+)
A.2 - Ethernet
By default, only the LAN Ethernet interface of the eWON4005CDTM can be used to access the
internal Web Site
A.2.1 - Ethernet LAN
The Ethernet LAN is a four ports auto-sense Ethernet switch (10/100 Mb).
Auto-sense means that you can use both direct and crossed cables.
Color &
Activity
Description
OFF No LINK
GREEN Fixed
LINK
GREEN Blinking Activity (RX or TX)
Page 29 / 39 eWON 4005CD | IG 002
