Appendix A - Pin-outs & connections

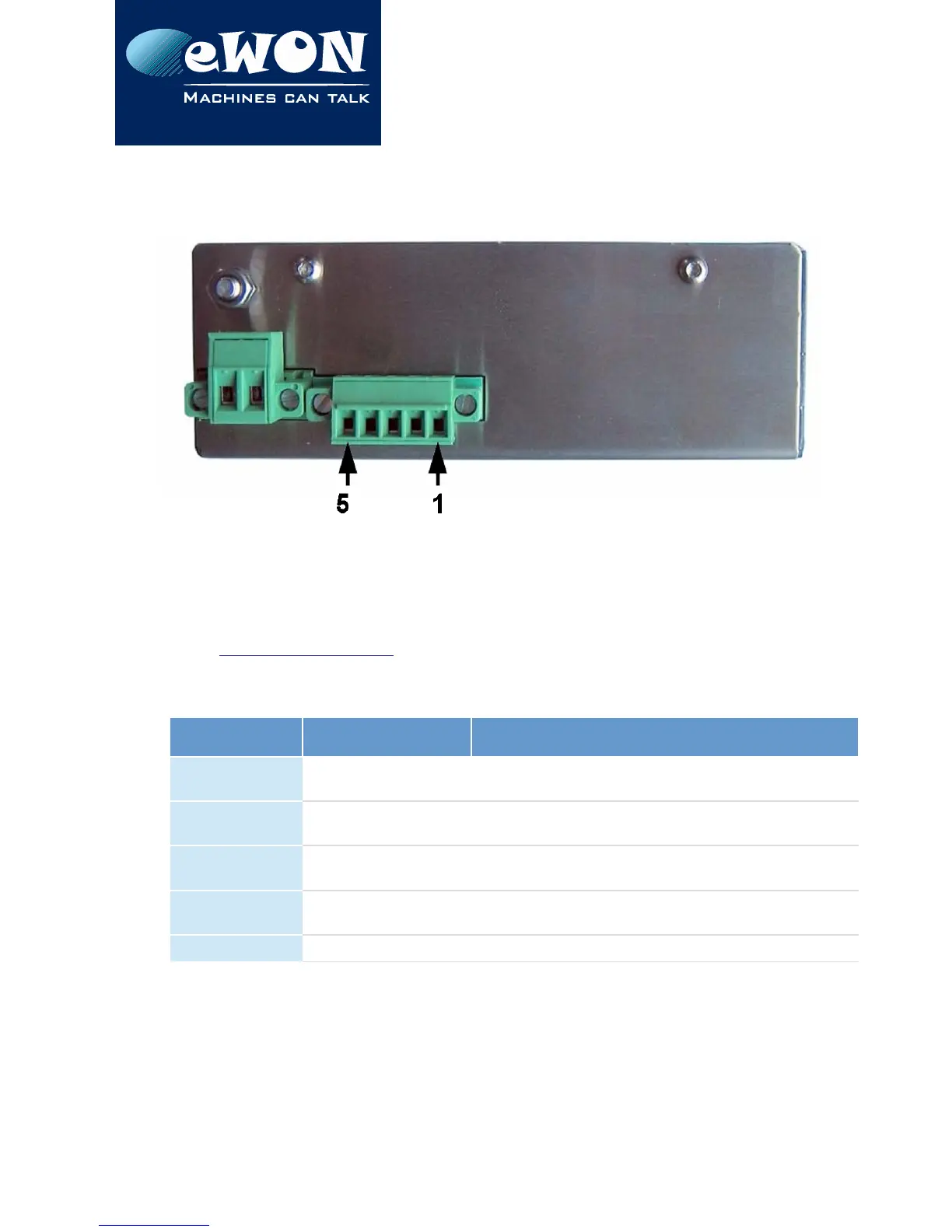

A.6 - Inputs/Outputs
Mating female connector (included):
Manufacturer :
Sauro
http://www.sauro.net/
Part Number: CTF050VT
Pin Position REF Description
1
DO-GND Output digital signal (0V ground)
connected to the emitter of the transistor
2
DO Output digital signal
connected to the drain of the MOSFET transistor
3
DO-VDC Common of the external predrive Power Supply
Between +12 & +24 VDC
4
DI_GND Ground of the input
“Isolated”
5
DI Input digital signal
Page 33 / 39 eWON 4005CD | IG 002
