eWON 4005CD - MPI Port

Appendix A - Pin-outs & connections
A.8 - MPI Port
Mating male connector (not included):
Type:
Male DB9 with 4/40 blocking screws

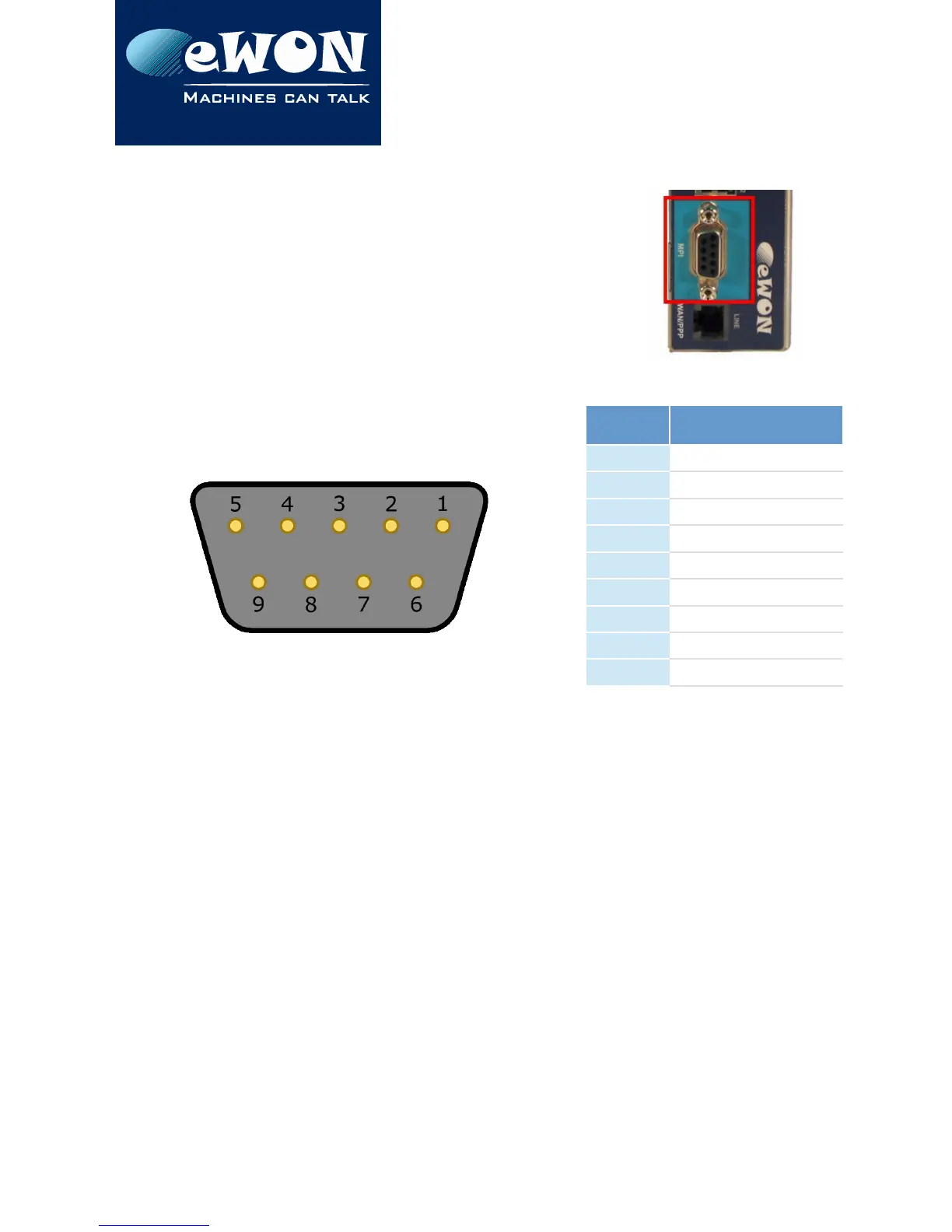

MPI port pin-out (DB9 female):
PIN MPI
1 -
2 -
3 B (+)
4 -
5 GND
6 -
7 -
8 A (-)
9 -
Page 35 / 39 eWON 4005CD | IG 002
