Appendix A - Pin-outs & connections

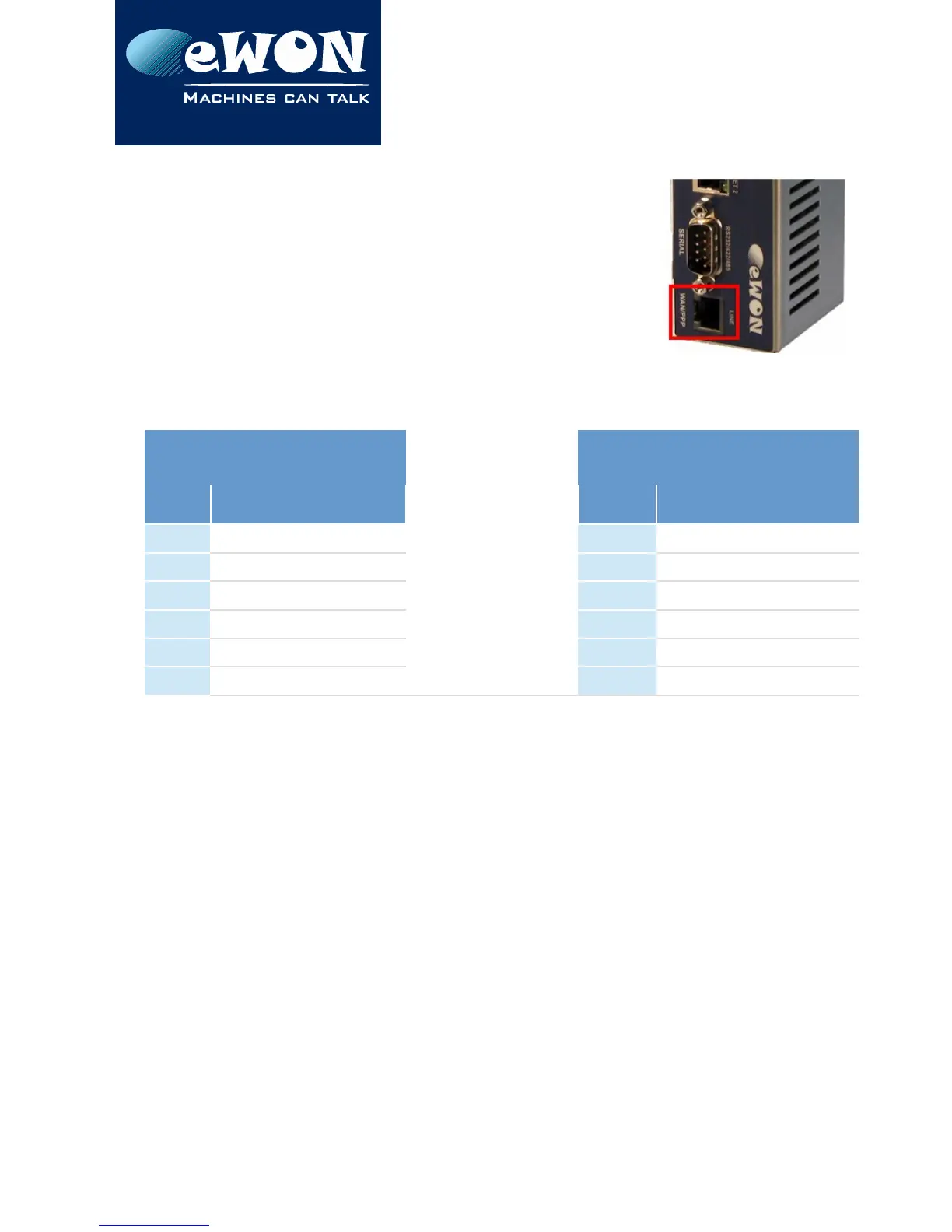

A.9 - PSTN/ISDN Phone line connector
Mating male connector (not included):
Type:
RJ11 type "6P2C" without shield
PIN-out PSTN PIN-out ISDN
PIN Description PIN Description
1
-
1
-
2
-
2
TX +
3
TIP
3
RX +
4
RING
4
RX -
5
-
5
TX -
6
-
6
-
The ISDN modem in the appliance shall be connected to the telephone line via an ISDN
adapter with adequate insulation from TNV3.
Page 36 / 39 eWON 4005CD | IG 002
