eWON Cosy 131 Ethernet User Manual

Chapter 3
Hardware description

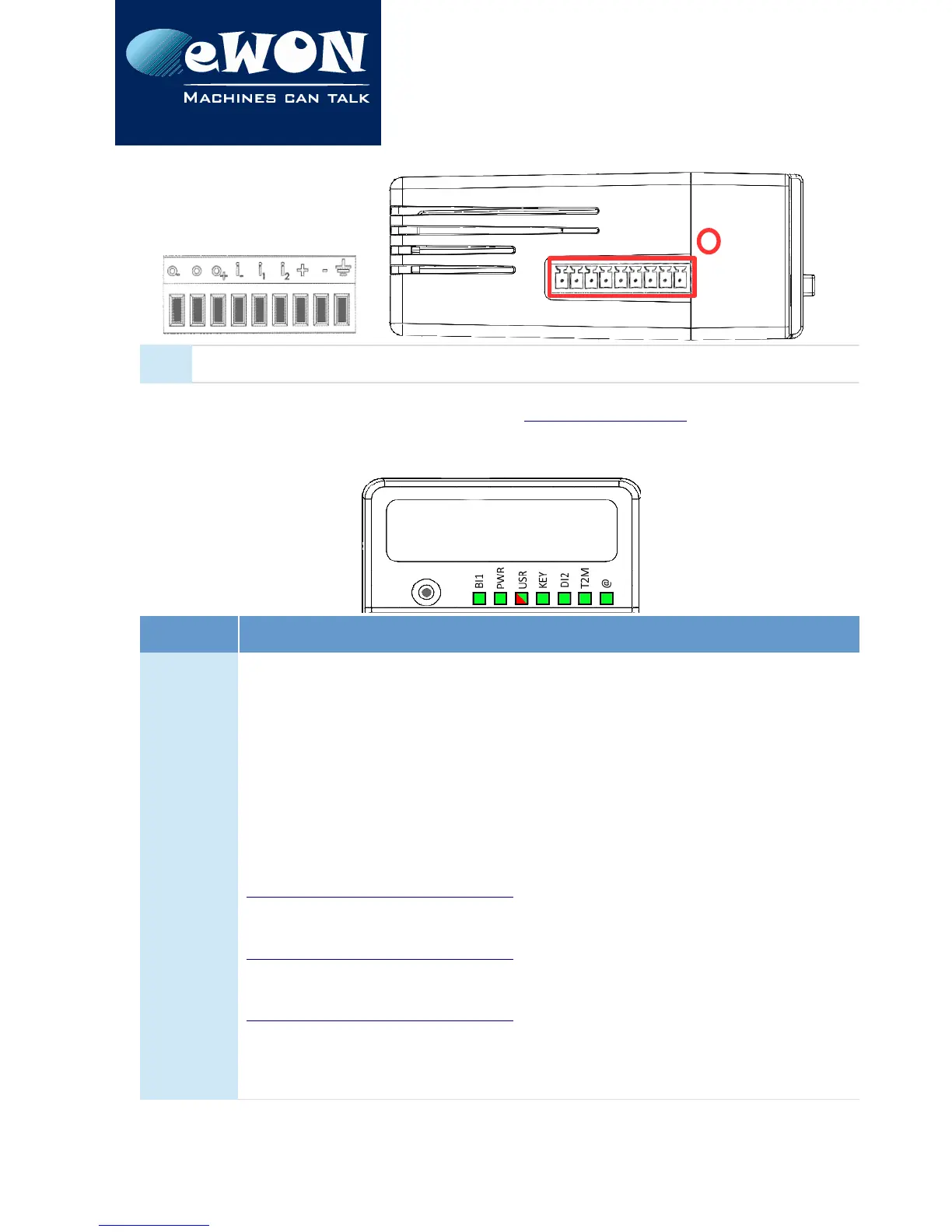

3.3.2. Upper side
Connector
1 Main connector including power input terminal, 1DO and 2 DI
For more information about the connector see in A.1. Main Connector
3.3.2. Status LED panel (COSY 131 – All version):
Label Description
BI1
Button BI1 input
Green ON = Reset being pressed
PWR
Power
Green ON = Power is present
USR
User
Green ON+OFF slowly = Unit is OK
RED pattern = special attention required
KEY
Digital IN 1 – Green = ON: Signal on input 1 detected
See. Digital Output & Digital Inputs
DI2
Digital IN 2 – Green = ON: Signal on input 2 detected
See. Digital Output & Digital Inputs
T2M
Talk2M - Green ON = Talk2M VPN connection established
See. Digital Output & Digital Inputs
@
Internet
Green ON = Internet is configured on the eWON COSY
Page 14 / 30 eWON COSY 131 | IG 022
