eWON Cosy 131 Ethernet User Manual

Appendix A - Connector Pinout & Related
Specifications
Appendix A - Connector Pinout & Related Specifications

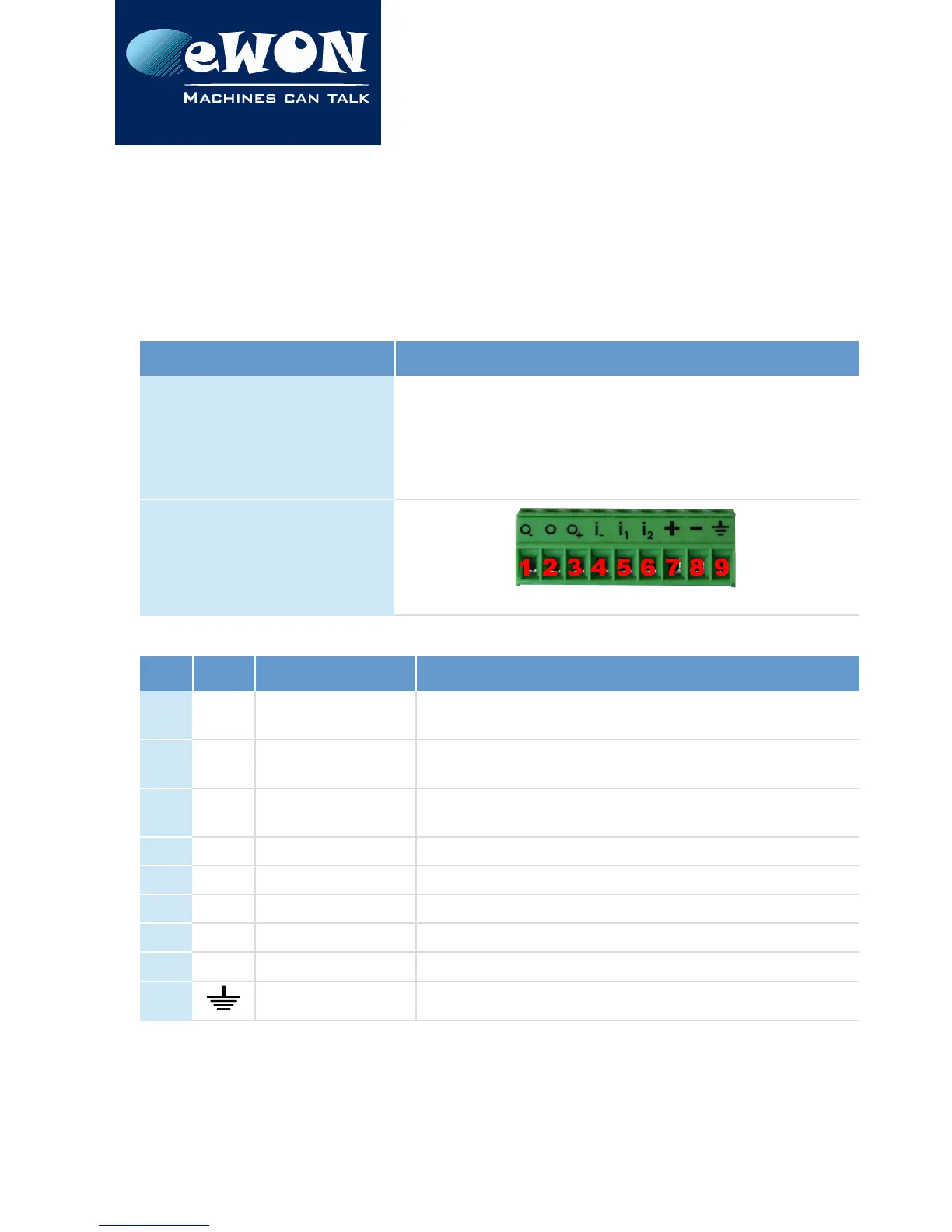

A.1 - Main Connector
As shown in the picture, the female mating connector is labeled with the appropriate
symbols.
Characteristic Value
Connector type
MINICONNEC MC model
Type MC 1,5/9-ST-3,5
Pitch = 3.50 mm
9-pin female
Connector pinout
PIN ICON ID Description
1 O
-
DO_COM
Output signal (0V ground)
connected to the emitter of the MOSFET transistor
2 O DO
Output signal
connected to the drain of the MOSFET transistor
3 O
+
DO_VDC
Common of the external predrive power supply
(between +12 et +24 VDC)
4 i
-
DI_COM Ground of the input (isolated)
5 i
1
DI1 Input signal 1
6 i
2
DI2 Input signal 2
7 + Power in VDD + between +12 et +24 VDC
8 - Power in GND - 0V
9
Functional Earth
Page 26 / 30 eWON COSY 131 | IG 022
