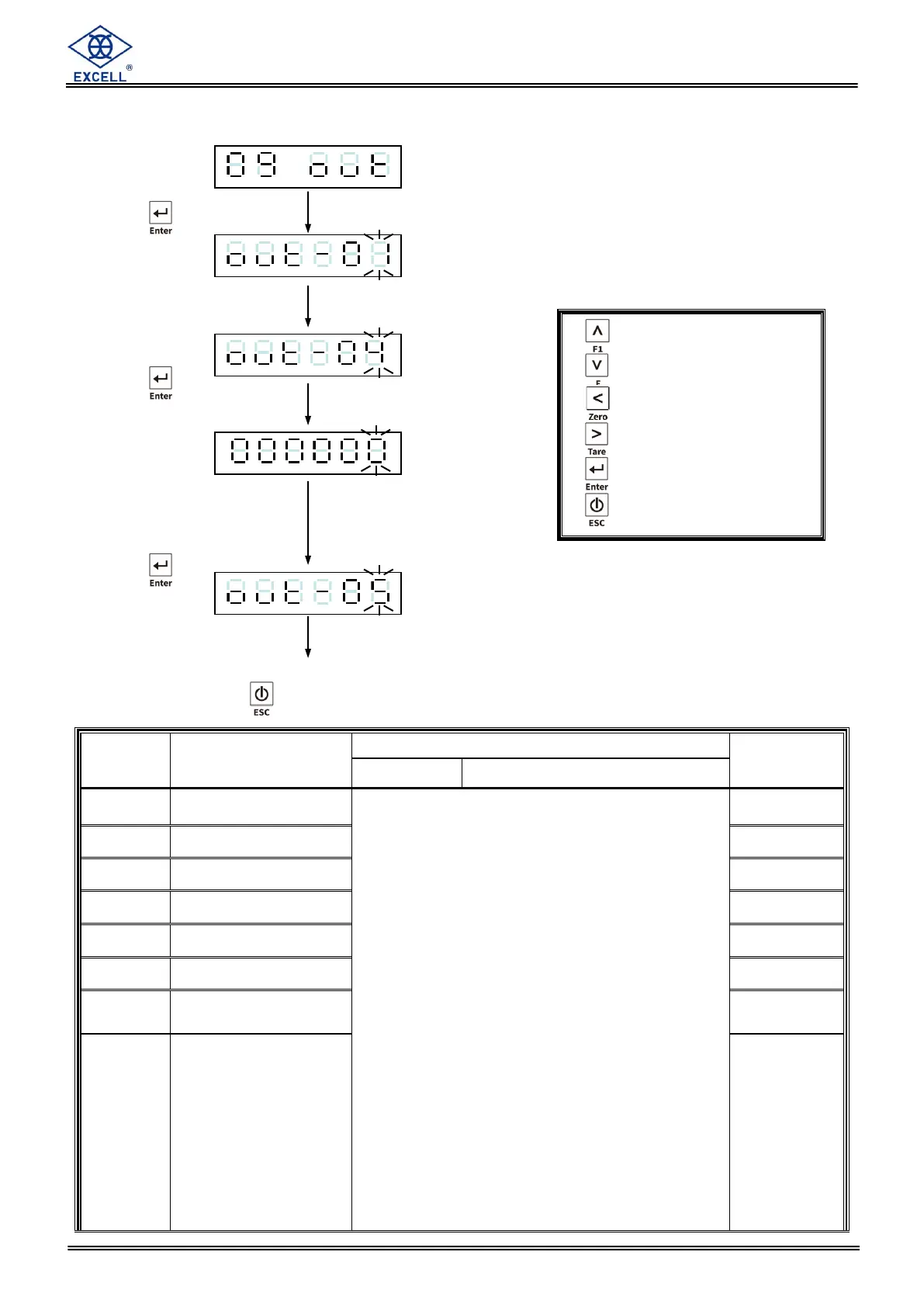

Output signal setting
Press the key
Input desired
Parameter code
Press the key
Display shows the existing
parameter code. Input
new code as required.
Press the key
To continue another function setting
or press key to escape
Item
Function
Setting value
Default
Parameter
Description
OUT- 01
Output 1
0 None
1 Zero band
2 SP1
3 SP2
4 SP3
5 Batching completed
6 Discharge
7 Peak ready
8 Stable
9 Internal batching process running
10 Under
11 Over
12 Hi
13 OK
14 Lo
15 DM_ACCUV
16 DM_ACCUC
17 Hold
18 Hi_Hi
19 Lo_Lo
32 Controlled through RS232 (WSPT)
commands
1
OUT- 02
Output 2
2
OUT- 03
Output 3
3
OUT- 04
Output 4
4
OUT- 05
Output 5
5
OUT- 06
Output 6
6
OUT- 07
Output 7
7
OUT- 08
Output 8
8
Increment flashing digit
Decrement flashing digit
Move flashing point left
Move flashing point right
Store data in memory
Exit / Escape
