Chapter 1 Introduction
1-1 Production Introduction
1. High performance A/D converter
2. According to different resolution to do linearity calibration
 Ordinary resolution models (below 10000)
Do specification calibration first then do weight calibration
 High resolution models (10000~30000)
Do linearity calibration first specification calibration  weight calibration at last
3. LCD display with LED backlight, powered by battery or plug-in mains, automatic
power-off function to ensure the stability of the scale. When battery voltage is lower than
the system voltage, scale is automatically powered off to ensure the accuracy and
stability of the scale.
4. Check Weighing function for high limit and low limit and OK range.
5. 5 HOLD functions including animal scale HOLD
6. Depending on actual space, a RS232 card and/or a relay card can be installed.
8. FB530 can choose EPSON(M-150II)16L mini printer output as an option, but relay card
is not optional in FB530.
10. Appearance size: 276 X 172 X 153mm ( L x W x H )(no back display)
276 X 202 X 153mm ( L x W x H )(with backdisplay)

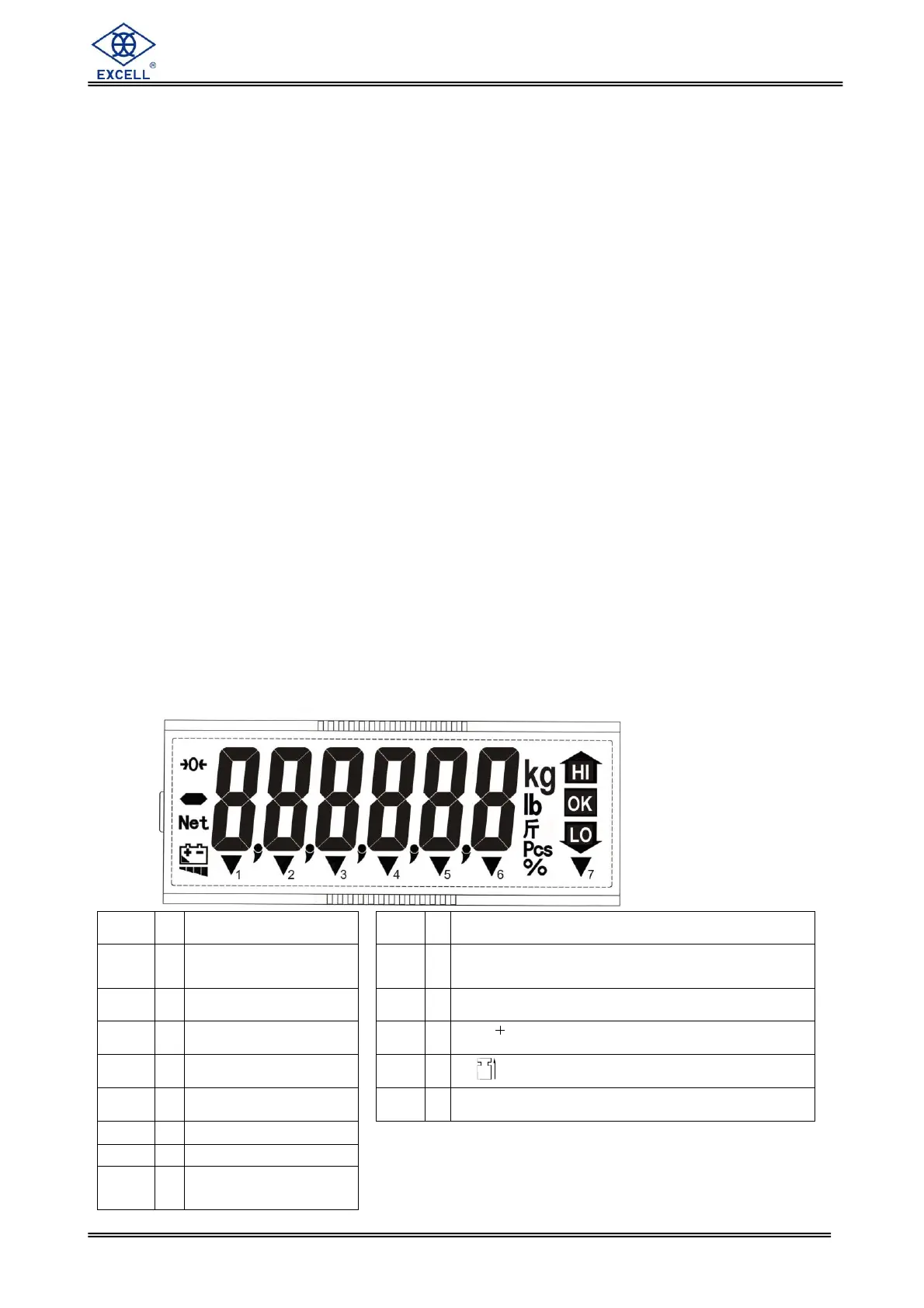

1-2 Display Description
HI
:
High limit value
▼1
“Stable” indication
OK
:
OK range within HI
and LO limits
▼2
:
“Pre-tare mode” indication
LO
:
Low limit value
▼3
:
(M+) “Accumulation mode” indication
kg
:
“kg” unit
▼5
:
( ) “Samples insufficient” indication
lb
:
“lb” unit
▼6
:
( ) “Unit weight insufficient” indication
Pcs
:
Counting mode
▼7
:
“Viss” unit (Burma unit)
%
:
Percent indication
→O←
:
“Zero” indication
Net
:
“Net weight”
indication
 For Dual Range Models, the indicator 5 and 6
will be defined as below:
 0.3 uv/D high sensitivity
 zero point adjustable range -2mV~ +5mV
 Sampling speed 15 times/second
 use range -4mV ~ +30mV

non-linear scale 0.01% full scale
 load cell stimulate power source 5V DC ±2% 100mA
