USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg
CCCCCC Nominal lifting capacity
020020 =198kg 050050 =500kg 160160 =1600kg 250250 =2500kg 400400 =4000kg
025025 =250kg 100100 =1000kg 200200 =2000kg 320320 =3200kg 500500 =5000kg
DDDDDD Chain hoist series
DB-DB- D8 with SF 5:1 XB-XB- D8 with SF 5:1 - 2 brakes
S8-S8- D8 with SF 8:1 - 2 brakes X8+X8+ D8+ with SF 8:1
D8+D8+ D8+ with SF 8:1
EEEE Meters of loading chain in meters
FF Size of the chain bag:
XSXS Extra Small MM Medium XLXL Extra Large
SS Small LL Large XXLXXL Extra Extra Large

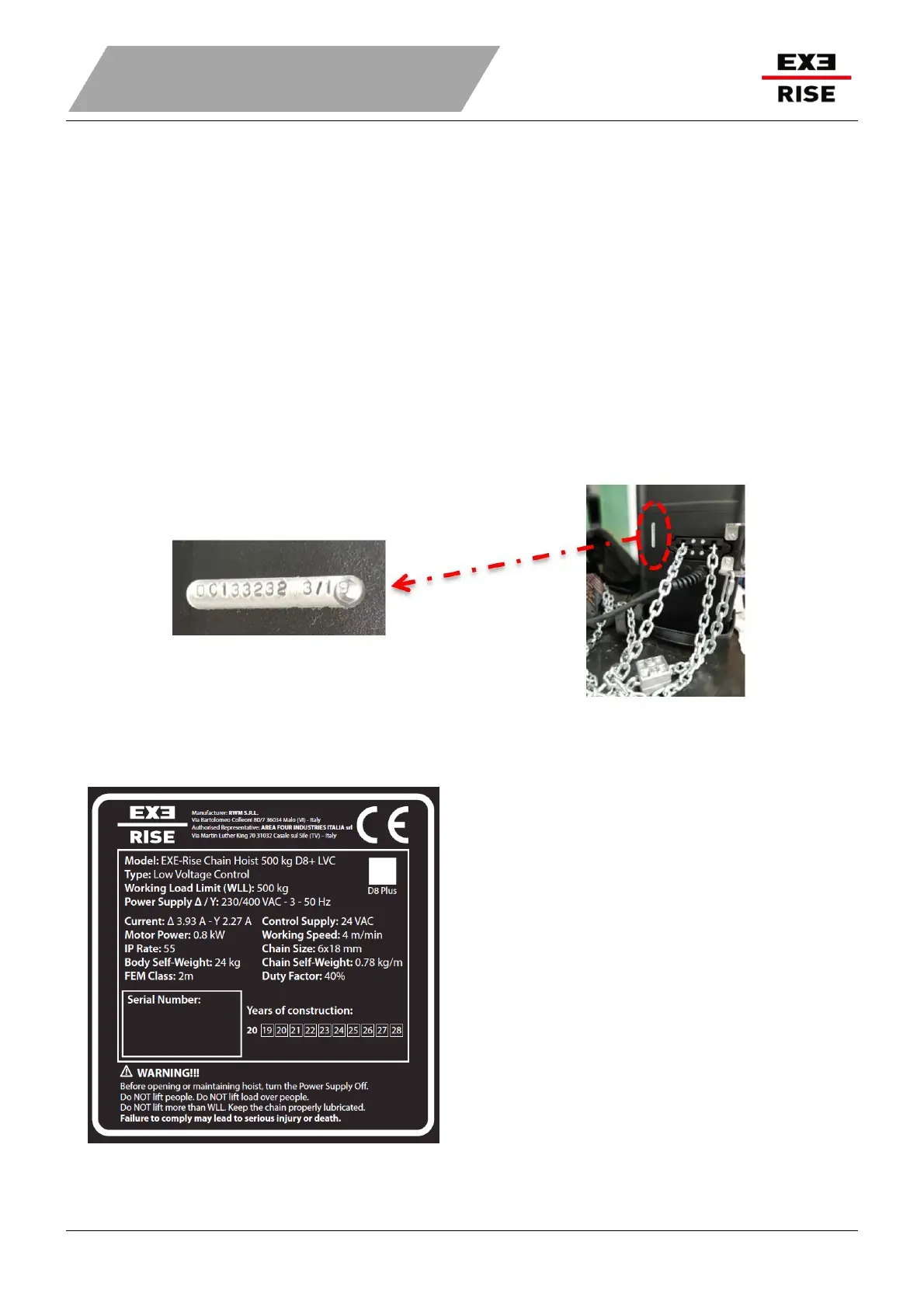

EXE RISE electric chain hoists are marked and identified by the unique serial number printed on the frame and on
the machine identification plate. In addition to the serial number, the marking includes also month and year of
construction in the MM/YY format, as shown in figure 3.1.
figure 3.1 – "Serial number and year of construction"
The machine identification plate is a legible, indelible aluminium plate (figure 3.2) with the following information in
English:
●
●
●
●
●
●
●
●
●
Name and address of the manufacturer and his
authorized representative.
Model, series and type name of the EXE Rise chain
hoist
Load capacity, voltage and current.
Motor power and rated speed.
Classe FEM, IP RATE e Duty Factor.
Size of the chain and its weight per meter.
Body weight.
Serial number and year of construction.
CE marking.
figure 3.2 – "Machine identification plate”
