USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg
3.23.2 COMPONENTS DESCRIPTIONCOMPONENTS DESCRIPTION

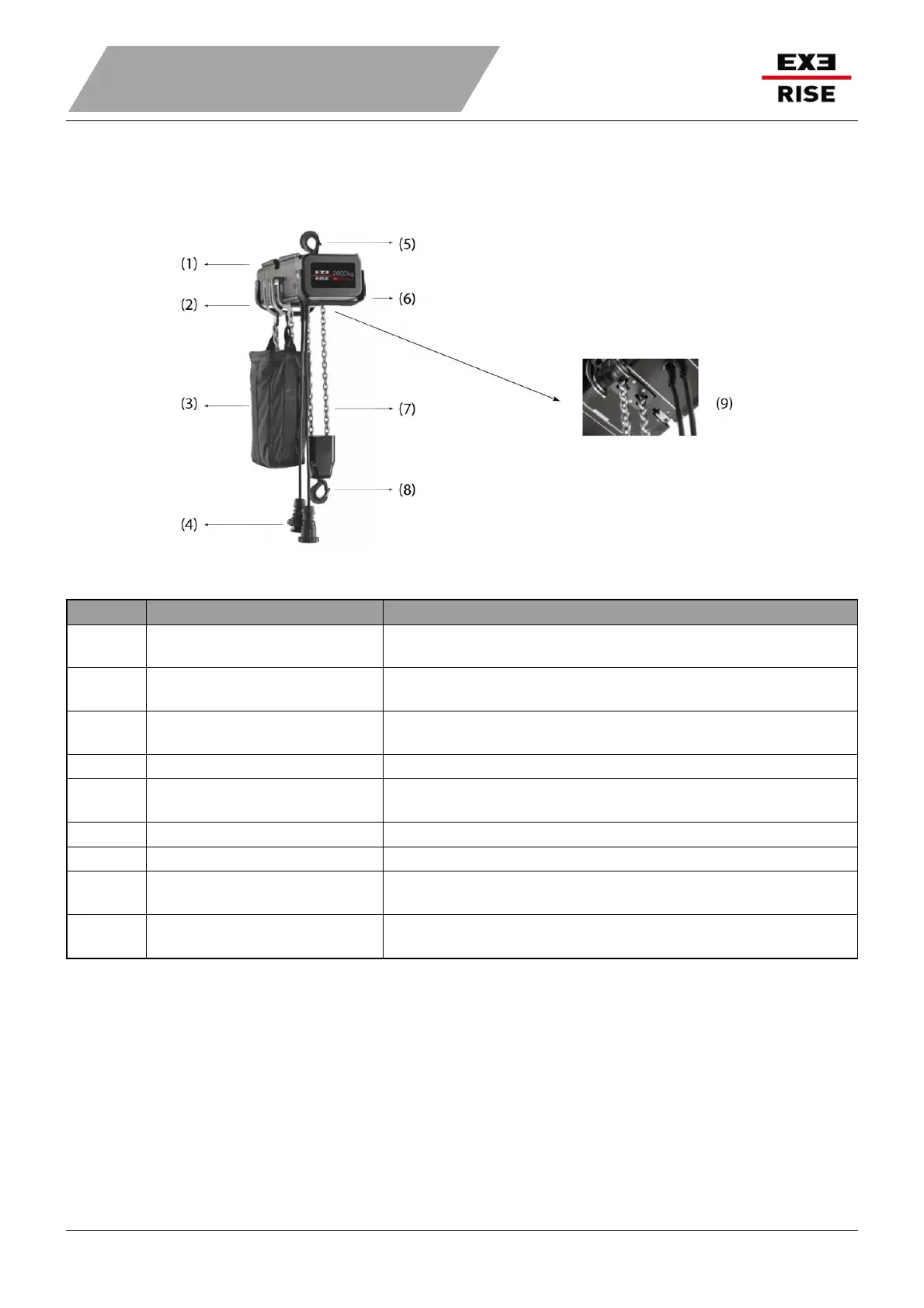

EXE RISE electric chain hoists consist of several components detailed in figure 3.3 and described.
figure 3.3 – "Components of an EXE RISE electric chain hoist”
NumNum Component nameComponent name Component descriptionComponent description
(1)(1) Body The body (frame) is made of aluminium alloy. The finish is non-
reflective matte black. Excellent corrosion resistance.
(2)(2) Chain Bracket The bracket is made of steel and has grooves for positioning the
chain bracket in both modes of use.
(3)(3) Chain bag Sacca catena in cloruro di polivinile (65% PVC – 35% poliammine),
tessuto con classe di reazione al fuoco E.
(4)(4) Plug and socket Black plugs and sockets with IP RATE 66/67.
(5)(5) Body Hook Alloy steel swivel hook with spring-loaded safety latch locked with a
nut welded onto a plate.
(6)(6) Handles Handles usable in both modes.
(7)(7) Load Chain The chain is made of zinc-plated steel. Steel grade 80.
(8)(8) Chain Hook Alloy steel swivel hook with spring-loaded safety latch, locked with
a roll pin in a metal block.
(9)(9) External Chain Guide Plate PVC plate for all models but the small and extralarge frame, which
are made in aluminium.
3.33.3 LOAD CHAINLOAD CHAIN
The chain installed on EXE RISE electric chain hoists is a DAT type, RTS chain made of galvanized alloy
steel grade 80 and complies with the harmonized standard DIN EN 818-7.
Depending on the EXE RISE electric chain hoist model, different size of chain are used:
The same EXE RISE electric chain hoist model can be equipped with different chain lengths.
All the size and technical specifications of the chains are listed below as refered in figure 3.4.
