USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg
●
●
●
●
●
●
Manufacturer's name;
Batch number;
Fabrication number;
Type of execution;
Quality designation;
Regulatory company test stamp.

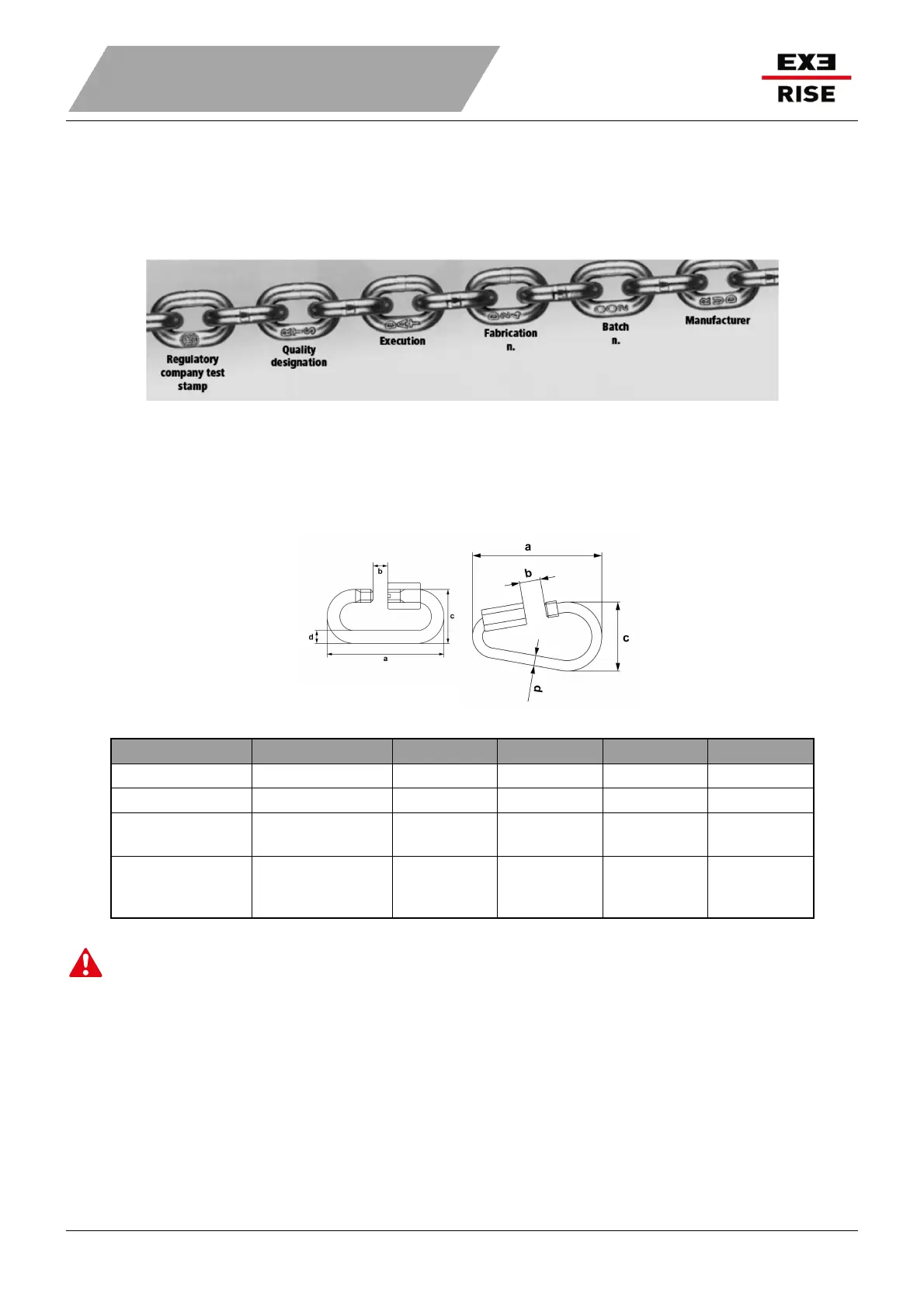

figure 3.5 – "Chain markings”
The free end of the chain is attached to the chain bag bracket through a dedicated bracket, allowing it to position
correctly according to the hoists mode of use (standard or self-climbing).
The last link of the chain is attached to the chain bag bracket by means of carabiners complying with DIN 56927 or
DIN 5299 standards or equivalent. These carabiners report the working load limit (WLL). The size and technical
characteristics are given in figure 3.6.
figura 3.6 – “End chain-chain bag bracket carabiners”
CodeCode Chain sizeChain size WLLWLL dd cc WeightWeight
LT CHB041 4x12mm 50kg 3.5mm 5mm 9g
LT CHB042 5x15mm 90kg 4.0mm 5.5mm 12g
LT CHB037 6x18mm
8x24mm
140kg 5.0mm 10mm 25g
LT CHB004 10x28mm
11.3x31mm
13x36mm
250kg 6.0mm 13mm 47g
DANGERDANGER
The carabiner must be positioned and oriented in such a way that the closure is carried out by screwing theThe carabiner must be positioned and oriented in such a way that the closure is carried out by screwing the
nut downwards.nut downwards.
3.43.4 HOOKSHOOKS
The hoist hooks are made of alloy steel and are categorised as body hook and chain hook.
Both hooks are swivelling and are equipped with an automatic safety latch that prevents the load from accidentally
coming unhooked.
