USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg
The types of Chain hook and body hook, and therefore their sizes, differ depending on the hoist model.
Listed below, the dimensions and technical specifications of both chain and body hook for each EXE RISE chain
hoist model, referring to figure 3.7. The corresponding product codes are listed in Chapter 11 of this operation and
maintenance manual .
SINGLE FALL (1F) DOUBLE FALL (2F)

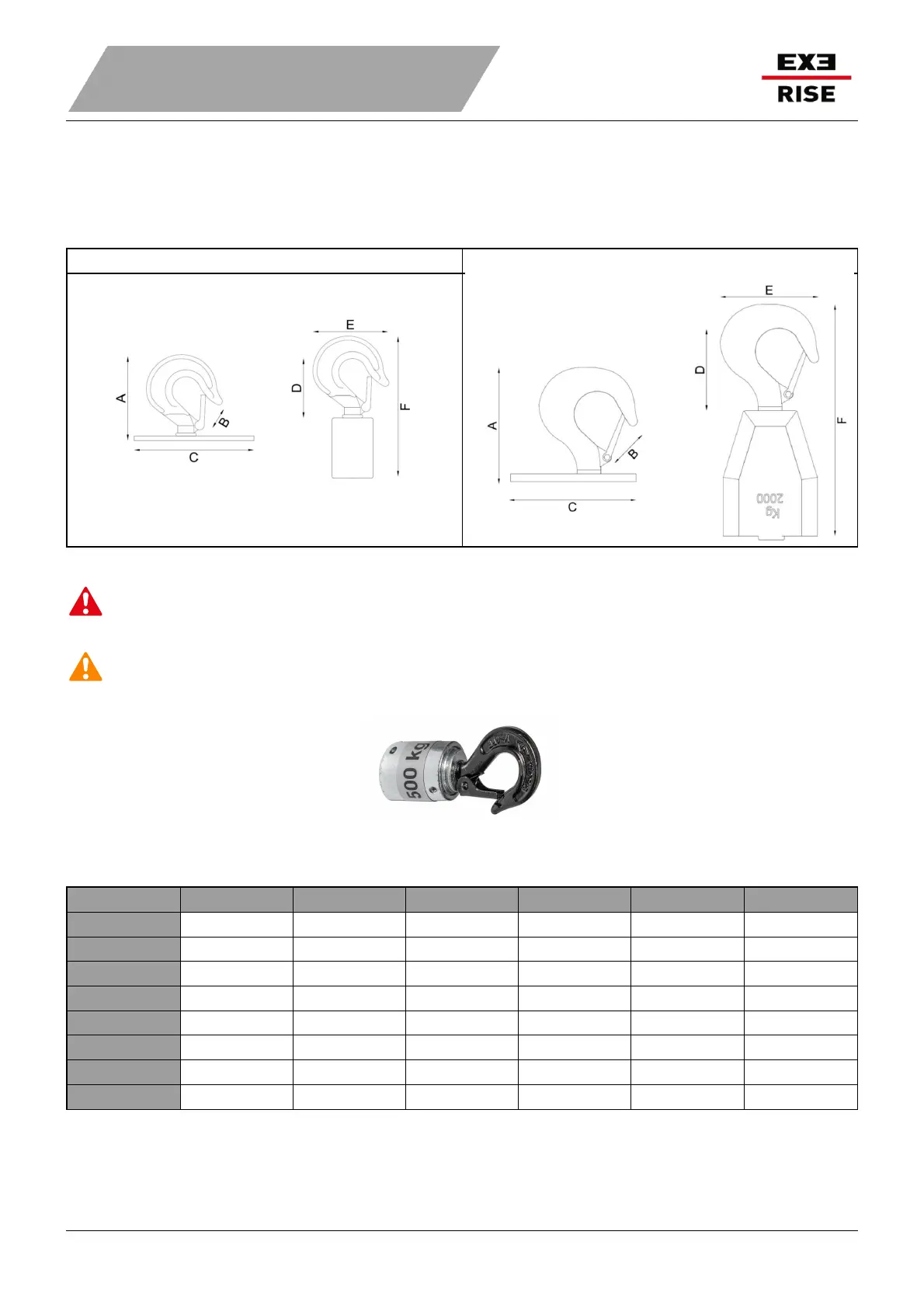

figure 3.7 – "Body/chain hook diagram"
DANGERDANGER
Each hook type CANNOT be used as a mechanical limit switch.Each hook type CANNOT be used as a mechanical limit switch.
WARNINGWARNING
The working load limit (WLL) is not the one embossed on the hook, but is shown on the chain hook bottomThe working load limit (WLL) is not the one embossed on the hook, but is shown on the chain hook bottom
block as shown in figure 3.8.block as shown in figure 3.8.
Listed below, the dimensions and technical specifications of both chain and body hook for each EXE RISE chain
hoist model, referring to figure 3.7. The corresponding product codes are listed in Chapter 11 of this operation and
maintenance manual .
Frame - [kg]Frame - [kg] A [mm]A [mm] B [mm]B [mm] C [mm]C [mm] D [mm]D [mm] E [mm]E [mm] F [mm]F [mm]
S (1F) - 1.25 tS (1F) - 1.25 t 94 18 44 64 73 153
M (1F) - 1.25 tM (1F) - 1.25 t 95 18 143 64 73 153
L (1F) - 2.5 tL (1F) - 2.5 t 112 24 143 72 92 177
XL (1F) - 5.4 tXL (1F) - 5.4 t 154 33 265 97 122 233
XXL (1F) - 8.0 tXXL (1F) - 8.0 t 171 41 265 120 155
L (2F) - 5.4 tL (2F) - 5.4 t 154 33 143 97 122 296
XL (2F) - 5.4 tXL (2F) - 5.4 t 154 33 265 97 122
XXL (2F) - 8.0 tXXL (2F) - 8.0 t 171 41 265 120 155
The Body/Chain hook codes are given in Chapter 11 of this operation
and maintenance manual.
