USE AND MAINTENANCE MANUALUSE AND MAINTENANCE MANUAL
Chain hoist from 198kg to 2500kg
3.103.10 LIMIT SWITCHLIMIT SWITCH
The EXE RISE models of the LVC type (with the exception of the small frame) with low voltage control system are
equipped by default with limit switches with 2 or 2 + 2 positions as shown in figure 3.13.
The EXE RISE DC type models (with the exception of the small frame) with direct control can be equipped with 2
or 2 + 2 position limit switches as shown in figure 3.13. extra large frame models are equipped with them as
standard.
figure 3.13 – “2 position limit switches”
These devices are set when the hoist is assembled in the factory with a tollerance of 3-5 cm, depending of the
length of the chain. The factory settting is detailed in figure 3.14.

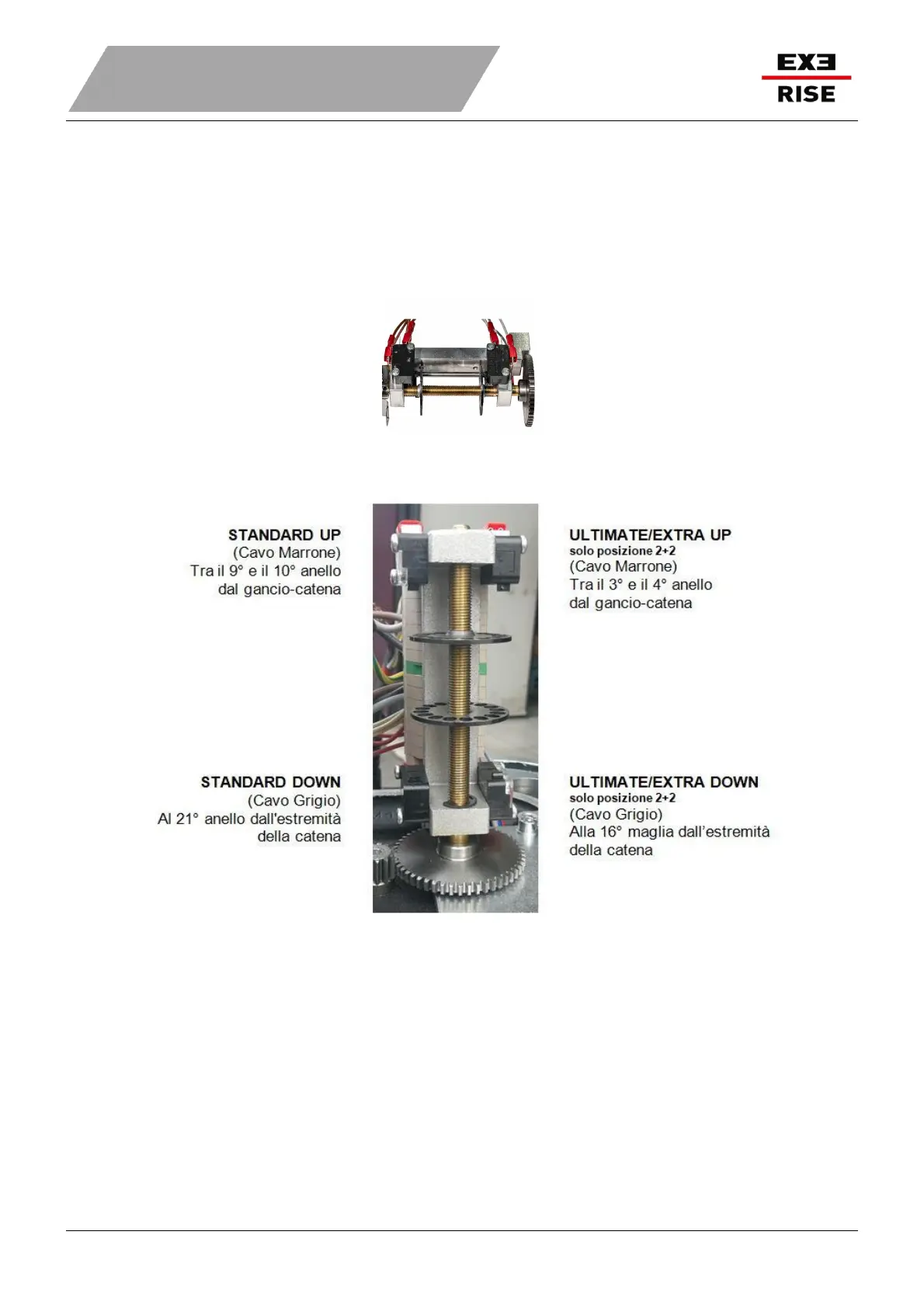

figure 3.14 – “Settings for 2 and 2+2 position limit switches”
The limit switches cannot be subsequently adjusted with prior authorization from A4I ITALIA or RWM.
